PRECISION TURNTABLE
PRECISION TURNTABLE
PRECISION TURNTABLE
Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 30/2 and is the answer not in the manual?

Questions and answers

Related Manuals for SME 30/2

Summary of Contents for SME 30/2

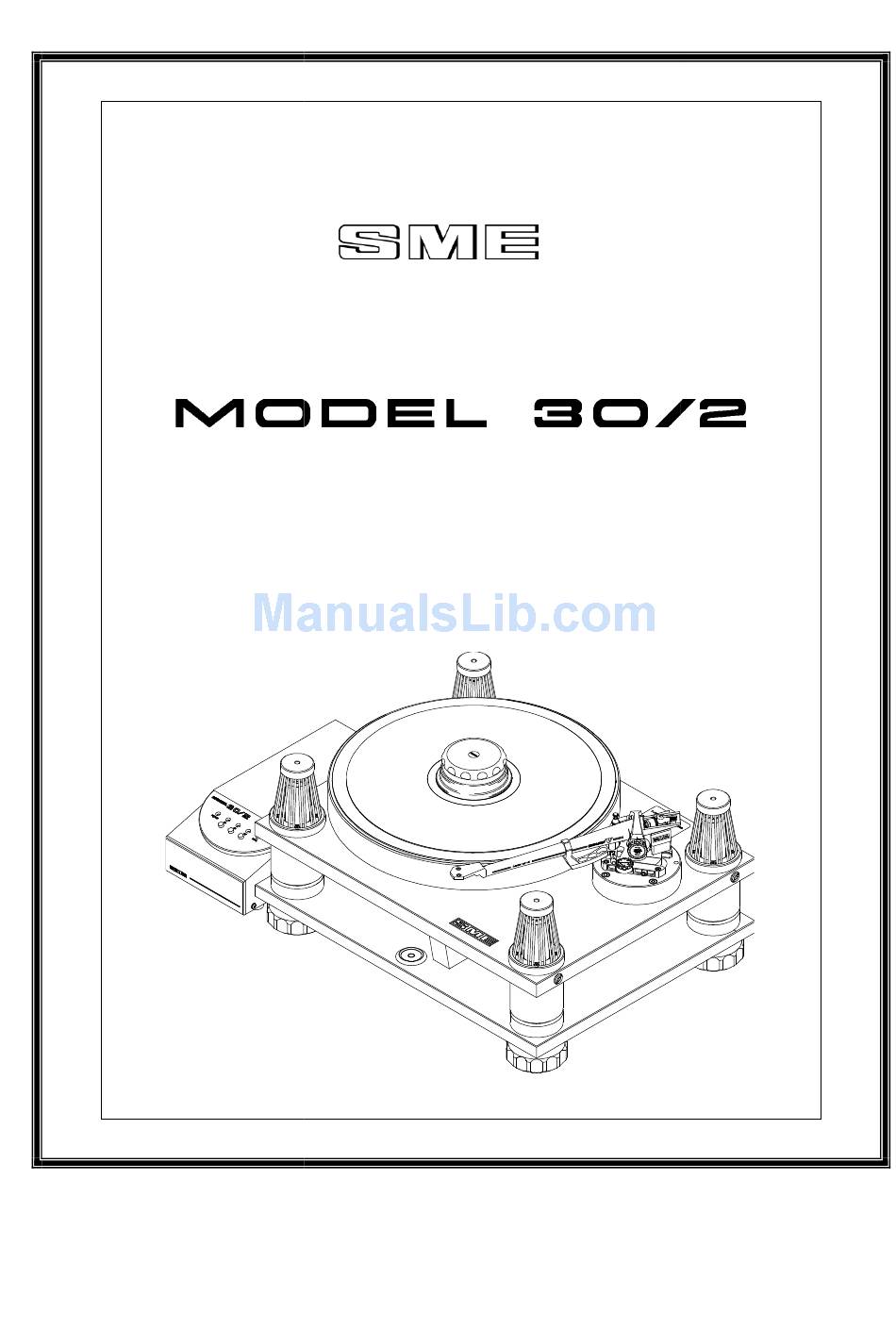

  • Page 1 PRECISION TURNTABLE PRECISION TURNTABLE PRECISION TURNTABLE Instructions...
  • Page 2 Warning! Important Safety Instructions CAUTION: RISK OF ELECTRIC SHOCK DO NOT REMOVE POWER SUPPLY UNIT COVER. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE POWER SUPPLY UNIT COVER. THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL. Please read this manual carefully and keep it in a safe place for future reference.
  • Page 3 PRECISION TURNTABLE Instructions This is no ordinary turntable. These instructions have been compiled covering unpacking, This is no ordinary turntable. These instructions have been compiled covering unpacking, This is no ordinary turntable. These instructions have been compiled covering unpacking, adjustment and installation procedures. Please read carefully as you proceed. adjustment and installation procedures.

  • Page 4: Introduction

    As one listener remarked, ‘No feeling of anything going round, just the master tape passing smoothly through’. For the fortunate owner of a record collection the Model 30/2 can be the key to a rich storehouse of listening pleasure.

  • Page 5: Table Of Contents

    CONTENTS Page Introduction Dimensions and specification Packing list Parts identification Unpacking 10/11 Setting up 11/12 Operation - Turntable speed adjustment Operation Maintenance Transit precautions Guarantee Appendix...
  • Page 6 DIMENSIONS Width 450mm (17.72”) Depth 350mm (13.78”) Heigh 220mrn ( 8.66”) Platter Diameter 330mm (13.00”) Spindle to Arm 215.35mm (8.48”) Net Weight 42.0Kg (92 lbs) Shipping weight 56.0Kg (123 lbs) SPECIFICATION The turntable is driven by a 3-phase, 6 pulse, inductance motor, with 8 pole Neodymium magnets and 3 integrated Hall position sensors.

  • Page 7: Packing List

    PACKING LIST Part No. Model 30/2 base and sub-chassis assembly 1000 Suspension Bands (spares) 1020 Platter 1041 Syringe of Spindle Oil 1058/30 4mm A/F Hexagon Wrench 1083 Height Setting Gauge 1084 Stroboscopic Disc 1087 Operating Instructions 1088 Soft Cover 1094...

  • Page 8: Parts Identification

    PARTS IDENTIFICATION Platter Arm Mounting Plinth Motor Pulley Jacking Screws Suspension Lock Sub-Chassis Insert 3mm Ball-ended Pulley Transit Screw Wrench here M3 x 12 Socket Record Spindle Washer Cap Screw Turntable Spindle Upper Gallery Cover Driven Pulley Drive Belt Pulley Flange Suspension Bands Lower Gallery...

  • Page 9: Unpacking

    4. Having removed the lid of the packing case take out the tray containing the tools and accessories. Due to the weight of the Model 30/2 it is best lifted out of the case by two people, one at each end holding it under the sub-chassis. The turntable should be sited on a substantial table or steel equipment stand which must be capable of firmly supporting at least 45 kilos (100 lbs).

  • Page 10: Setting Up

    6. The Model 30/2 is intended to receive an SME Series V precision pick-up arm and is supplied complete with a non-standard 1.8M (6 ft) audio lead, the plug contacts of which have been rotated through ninety degrees so the cable can leave the arm downwards.

  • Page 11: Operation - Turntable Speed Adjustment

    10. OPERATION - Turntable speed adjustment The Model 30/2 precision turntable is partly run-in before leaving the factory but will further benefit from the first few weeks of use. Do not worry if initially the bearing is not totally silent.

  • Page 12: Operation

    3. The Model 30/2 is not equipped with a lid as it would increase the likelihood of acoustic feedback but a soft cover is provided to protect the turntable from dust when not in use.

  • Page 13: Maintenance

    Its replacement should only be undertaken by qualified service personnel. 13. TRANSIT PRECAUTIONS The Model 30/2 can be safely transported SUBJECT ABSOLUTELY TO THE FOLLOWING PRECAUTIONS: Short journeys by car: remove the platter, disengage the drive belt from the motor pulley, back off the motor height adjustment and replace the motor transit screw.

  • Page 14: Guarantee

    The nominal period of the guarantee is twelve months but is liberally interpreted at our discretion subject to the following conditions being observed: 1. Any matter arising must in the first instance be raised with SME Limited at the address appearing below.

  • Page 15: Appendix

    15. APPENDIX We hope these instructions have made the installation of your Model 30/2 precision turntable straightforward. Care for it as befits its fine construction. Do not invert it. Do not apply oil or other lubricant except as directed. Do not attempt to take it to pieces or interfere with any of the screws except as directed in the instructions.
