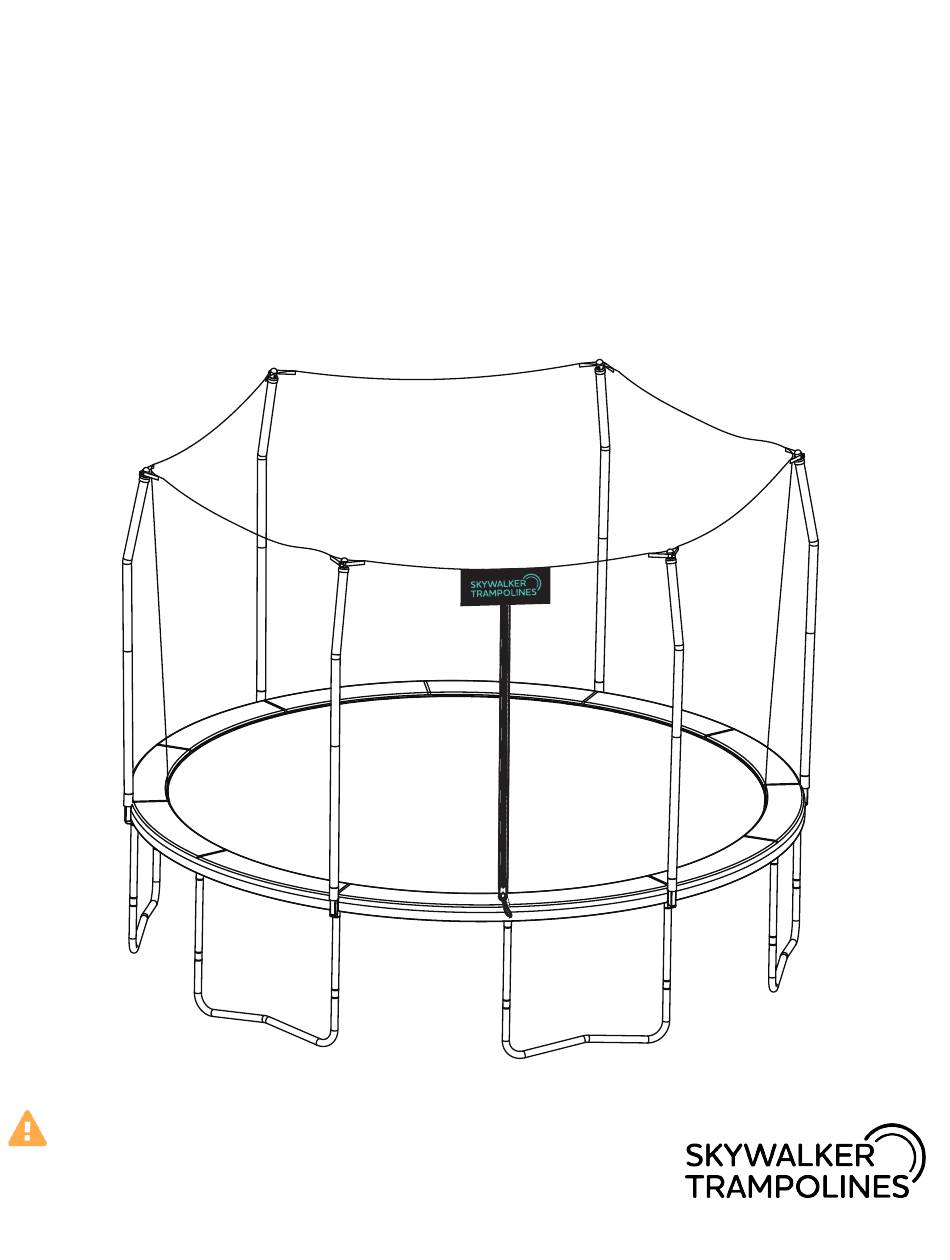

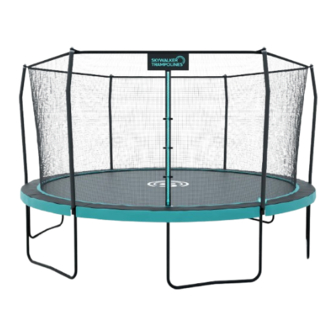

ASSEMBLY, MAINTENANCE, &
USER MANUAL
MODEL # SWST12D09
WARNING
Read all precautions and instructions in
this manual before using this equipment.
Save this manual for future reference.
Skywalker Holdings LLC
Maximum user weight 200 lbs.
P.O. Box 574, Brigham City, UT 84302
Successfully tested to 800 lbs.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWST12D09 and is the answer not in the manual?

Questions and answers

Related Manuals for Skywalker SWST12D09

Summary of Contents for Skywalker SWST12D09

  • Page 1 ASSEMBLY, MAINTENANCE, & USER MANUAL MODEL # SWST12D09 WARNING Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference. Skywalker Holdings LLC Maximum user weight 200 lbs. P.O. Box 574, Brigham City, UT 84302...

  • Page 2: Table Of Contents

    HEY WE'VE GOT SOMETHING REALLY IMPORTANT TO SAY Skywalker Trampolines belongs to a family of brands focused on providing active products. Check us out online! We've got assembly videos (for those of you who prefer movies over books), FAQs (so you know you're not the only one who had a question), additional products (including fitness, sports and playground equipment), and most importantly, find us on social media! We want to be your friend.

  • Page 3: Part List

    BEFORE YOU BEGIN Thank you for choosing Skywalker Trampolines! We’re just as excited as you are to help your family live an active (but most importantly FUN) lifestyle. This model is one of our favorites, and we’re confident you’ll love it, too. We want to make things easier for you, so we have listed all the important information that you (and your little outdoor adventurers) need to know.

  • Page 4: Part Identification

    PART IDENTIFICATION Before you begin, take a look at the drawings below to make sure you have all the parts! The numbers in the squares to the left (key numbers) will help you identify the parts during assembly. T-joint (may be pre- Socket (may be Leg Extension (x12) installed) (x6)
  • Page 5 ST4.8x16mm Self- End Cap (x6) M5x44mm Bolt (x6) tapping Screw (x33) Spring Tool (x1) Screw Driver (x1) Top Tube (x12) (x1) Spring Bag (x2) Storage Bag...

  • Page 6: Exploded Drawing

    EXPLODED DRAWING (14) (12) (12) (14) (14) (12) (11) (10) (10) (15) (12) (15) (14) (11) (14) (12) (10) (11) (10) (11) (14) (12) (11) (15) (15) (10) (11) (10) (11) (11) (11) (15) (15) (11) (11) (18) (18) (18) (18) (15) (15)

  • Page 7: Assembly

    ASSEMBLY READ THIS BEFORE YOU BEGIN • You’ll probably need at least two adults and 2 hours to assemble your trampoline (of course, that depends on what model you have, and whether or not you’re secretly a superhero) • We’ve provided some tools to help with assembly, but you’re more than welcome to use your own •...
  • Page 8 ASSEMBLY STEP 3 Insert a leg brace (4) into two leg extensions (3) and secure with two self-tapping screws (15). Now insert both leg extensions into the T-joint and socket of a top tube section at the same time. Secure into place with two self-tapping screws. Repeat this step until all 6 frame pieces are Leg Extension Leg Brace...
  • Page 9 STEP 5 Now grab the jump mat and enclosure. Check where they attach together and make sure each V-ring on the mat is threaded through the corresponding hole on the net. Lay the mat with enclosure on the ground inside the frame, and make sure the two warning labels are on top of the mat and aligned with two T-joints! Enclosure Jump Mat (x1)
  • Page 10 ASSEMBLY STEP 7 Now, repeat step 6 on the other side of the trampoline placing the hook of the smaller end of a spring into the V-ring just left of the warning label then stretch the free end of the spring until it reaches the frame hole just left of the T-joint.
  • Page 11 STEP 9 Next, place 6 springs into the V-rings just left of the sockets, and stretch the springs until they reach the frame holes just left of the sockets. Remember to count v-rings and frame holes so everything lines up! You now have attached 12 V-rings to the frame holes using 12 springs.
  • Page 12 ASSEMBLY STEP 11 Place the frame pad (6) on top of the springs. Adjust the frame pad so that the slits are directly above the T-sockets and the logo tag on the pad is to the right of the enclosure door as shown. Important: Don’t use the trampoline without the frame pad.
  • Page 13 STEP 13 Insert one straight tube with foam (9) into one curved tube with foam (10), and secure with one self-tapping screw (15). Important: On the curved tube there is one end that has two holes. Make sure that end is on top! Repeat this step to attach the 5 remaining straight tubes and curved tubes Self-tapping Screws (x6) together.
  • Page 14 ASSEMBLY STEP 15 Next insert a curved tube (10) into the pole cap (12). Make sure the bend of the enclosure poles are facing out away from the center of the trampoline. Make sure the holes on the curved tube, pole cap, and strap ring are all aligned.
  • Page 15 STEP 17 Insert the end caps (13) into the bottom of the sockets. End cap (x6) Socket (13) STEP 18 LAST STEP YOU’RE IN THE FINAL HOME STRETCH. Using the included plastic tie, attach the safety placard to the trampoline frame close to the enclosure door. Frame Safety Placard...
  • Page 16 ASSEMBLY STEP 19 Congratulations on completing your new trampoline! (See, we knew you could do it!) So here comes the real question, are you satisfied with this completed product? If you are, go ahead and write a review on our website.

  • Page 17: Maintenance And Care Information

    MAINTENANCE & CARE INFORMATION Congratulations and high five on successfully assembling your new Skywalker Trampolines 12' Trampoline with Enclosure! Now, the best way to keep your new trampoline in tip top shape, is to periodically check for: • Missing, improperly positioned, or insecurely attached frame padding, netting, enclosure tubes, or foam sleeves •...

  • Page 18: Instructions For Use

    WARNING INSTRUCTIONS FOR USE To reduce the risk of serious injury, read and follow all of the warnings, precautions, and instructions in this manual before you use the trampoline and enclosure. Warnings and instructions for care, maintenance, and use of this trampoline and enclosure are included to promote safe enjoyable use of this equipment.

  • Page 19: Warning Label Placement

    Climb on to and off the trampoline. Do not jump on or off. Do not use the trampoline as a springboard to other objects. Inspect before using and replace any worn, defective or missing parts. For further equipment information contact Skywalker. For skill training information, contact a trainer certification organization. ATTACH TO TRAMPOLINE WARNING Do not land on head or neck.

  • Page 20: Instructions And Model Lessons

    INSTRUCTIONS & MODEL LESSONS The following lessons are examples of an instructional program. They should follow a complete discussion and demonstration of body mechanics between the supervision and the student(s). 1. Fundamental bounce: Demonstration and practice. 2. Knee Drop: Demonstration and practice. 3.
  • Page 21 Lesson 5: Seat Drop Lesson 6: Front Drop 1. Land in a sitting position with your legs parallel to the 1. Start from a low bounce and land on the mat in a mat. prone position. 2. Place your hands on the mat beside your hips. 2.
  • Page 22 Lesson 9: Mounting and Dismounting Lesson 10: Breaking 1. Users should climb onto the trampoline by placing 1. Starting from a standing position, jump into the their hands on the frame and stepping or rolling up air. onto the frame, across the springs and onto the mat. 2.

  • Page 23: Trampoline Safety Information

    TRAMPOLINE SAFETY INFORMATION In trampoline use, as in all active recreational sports, participants can be injured. However, there are steps that can be taken to reduce risk of injury. In this section, primary accident patterns are identified and the responsibilities of supervisors and jumpers in accident prevention are described.

  • Page 24: Enclosure Safety Information

    ENCLOSURE SAFETY INFORMATION NEED FOR TRAMPOLINE ENCLOSURE SAFETY A trampoline enclosure is a recreational product. The information on this page identifies important safety precautions. The precautions are not all-inclusive, because an enclosure can be used in ways that this manual cannot cover completely.

  • Page 25: Methods Of Accident Prevention

    METHODS OF ACCIDENT PREVENTION THE SUPERVISOR’S ROLE IN PREVENTING ACCIDENTS It is the responsibility of the supervisors of trampoline users to provide knowledgeable and mature supervision. They need to know and enforce all of the rules and warnings printed in this manual to minimize the likelihood of accidents and injuries.

  • Page 26: Limited Warranty

    LIMITED WARRANTY Skywalker Holdings, LLC warrants its products to be free from defects in material and workmanship under normal use and service conditions. For this product, the steel frame is warrantied for seven (7) years after the date of purchase. The jump mat, enclosure poles, and springs are warrantied for three (3) years after the date of purchase.
  • Page 27 NOTE: SKYWALKER HOLDINGS, LLC IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCT OR OTHER DAMAGES WITH RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPERTY, LOSS OF REVENUE OR PROFITS, LOSS OF ENJOYMENT OR USE, COST OF REMOVAL, INSTALLATION OR OTHER CONSEQUENTIAL DAMAGES.
