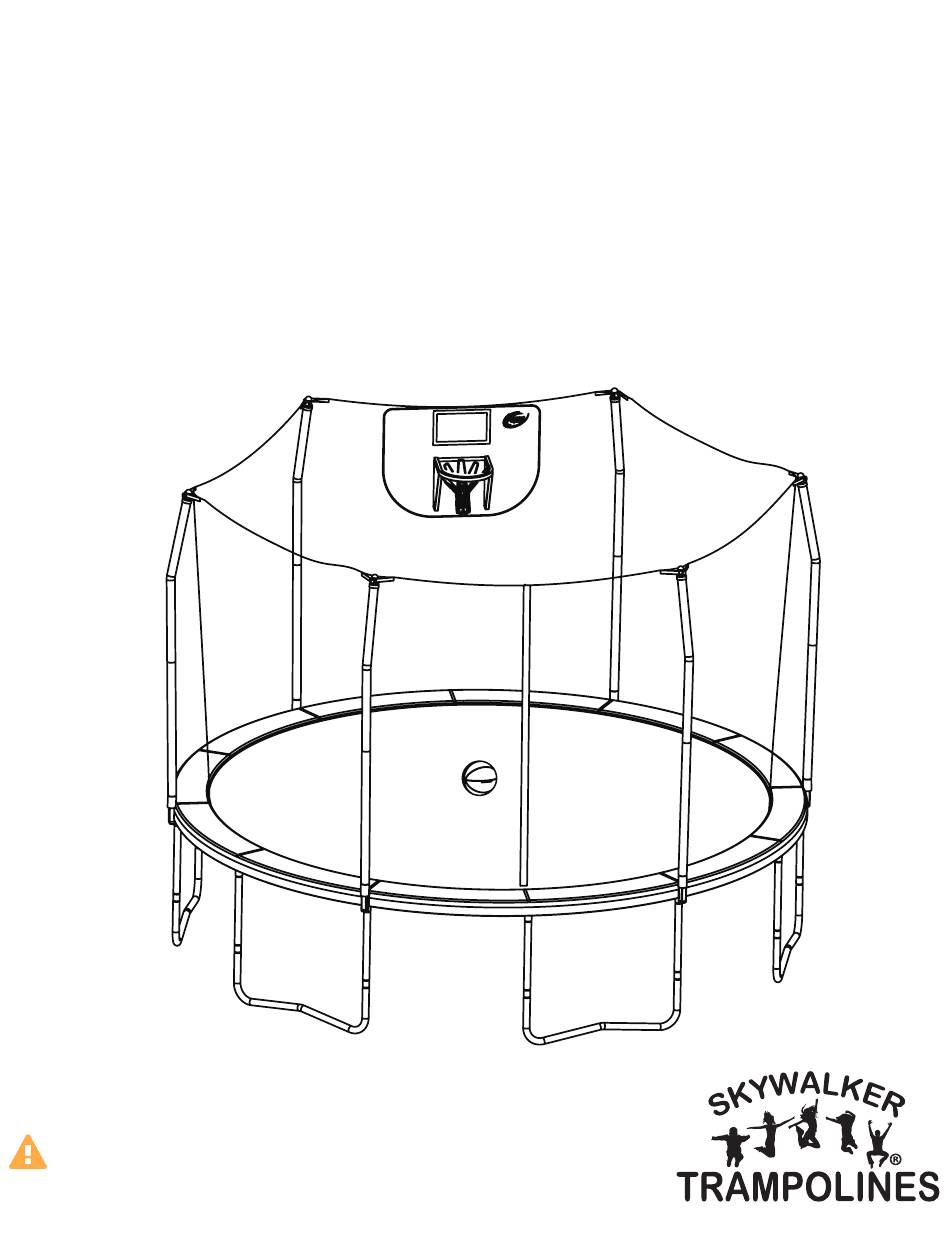

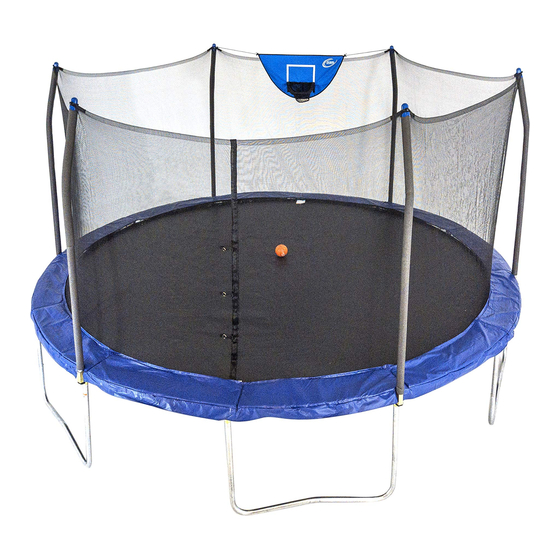

ASSEMBLY, MAINTENANCE, &
USER MANUAL
MODEL #SWJD15
WARNING
Read all precautions and instructions in
this manual before using this equipment.
Skywalker Holdings LLC
Save this manual for future reference.
P.O. Box 574, Brigham City, UT 84302
Maximum user weight 200 lbs.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWJD15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Skywalker SWJD15

Summary of Contents for Skywalker SWJD15

  • Page 1 ASSEMBLY, MAINTENANCE, & USER MANUAL MODEL #SWJD15 WARNING Read all precautions and instructions in this manual before using this equipment. Skywalker Holdings LLC Save this manual for future reference. P.O. Box 574, Brigham City, UT 84302 Maximum user weight 200 lbs.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Part List.....................................3 Part Identification................................4-6 Exploded Drawing................................7 Assembly..................................8-19 Maintenance and Care Information.........................20 Instructions for Use...............................21 Warning Label Placement............................22 Instructions and Model Lessons........................23-24 Trampoline Safety Information..........................25 Enclosure Safety Information..........................26 Methods of Accident Prevention........................27 Limited Warranty................................28 STOP EVERYTHING YOU'RE DOING AND REGISTER YOUR TRAMPOLINE Find our warranty registration online by typing in: www.skywalkertrampolines.com/registration/ You'll need to have the following information handy: •...

  • Page 3: Part List

    BEFORE YOU BEGIN Thanks for choosing Skywalker Trampolines! We’re just as excited as you are to help your family live an active (but most importantly FUN) lifestyle. This model is one of our favorites, and we’re confident you’ll love it too. To make things easier for you, we’ve listed important information that you (and your little outdoor adventurers) need to know.

  • Page 4: Part Identification

    PART IDENTIFICATION Before you begin, take a look at the drawings below to make sure you have all the parts! The numbers in the squares to the left (key numbers) will help you identify the parts during assembly. T-joint (may be pre- Socket (may be Leg Extension (x12) installed) (x6)
  • Page 5 Self-tapping Screw End Cap (x6) M5x50mm Bolt (x6) (x33) Ring (x1) Net (x1) String (Black) (x1) Tightening Cord Support Block (x2) Backboard (x1) (White) (x1) Screw Driver (x1) Basketball (x1) Spring Tool (x1)
  • Page 6 PART IDENTIFICATION Before you begin, take a look at the drawings below to make sure you have all the parts! The numbers in the squares to the left (key numbers) will help you identify the parts during assembly. Top Tube (x12)

  • Page 7: Exploded Drawing

    EXPLODED DRAWING (14) (12) (12) (14) (14) (12) (11) (10) (10) (15) (12) (15) (14) (11) (14) (12) (10) (11) (11) (10) (14) (12) (11) (15) (15) (10) (11) (10) (11) (11) (11) (15) (15) (11) (11) (25) (25) (25) (25) (15) (15)

  • Page 8: Assembly

    ASSEMBLY READ THIS BEFORE YOU BEGIN • You’ll probably need at least 2 adults and 2 hours to assemble your trampoline (of course, that depends on what model you have, and whether or not you’re secretly a superhero). • We’ve provided a Phillip’s screw driver and two adjustable wrenches to help with assembly, but you’re more than welcome to use your own tools.
  • Page 9 STEP 3 Insert a leg brace (4) into 2 leg extensions (3) and tighten with 2 self-tapping screws (15). Insert both leg extensions into the T-joint and socket at the same time, and tighten with two self-tapping screws. Repeat this step until you have 6 frame Leg Extension Leg Brace Self-tapping...
  • Page 10 Place the jump mat on the ground. The warning label should be on the top, Jump Mat (x1) and the ID label should be on the back. Model: SWJD15 Part #: 7015 Description: 15 Foot Mat Made in China...
  • Page 11 STEP 7 Place the jump mat (5) on clear ground inside the frame. Make sure the 2 warning decals align with 2 T-joints! T-joint Warning label Enclosure door Warning label T-joint STEP 8 You may want to use gloves for this step! Before you begin, make sure each V-ring has been threaded through the holes on the enclosure net.
  • Page 12 ASSEMBLY STEP 9 Now, repeat step 8 on the other side of the trampoline. Make sure to count the exact number of V-rings and frame holes so each one corresponds! You now have attached 2 V-rings to the frame holes using 2 springs. Springs (x1) Enclosure door STEP 10...
  • Page 13 STEP 11 Next, place 6 springs into the V-rings just left of the 6 remaining sockets, and stretch the springs until they reach the frame holes just left of the sockets. You now have attached 12 V-rings to the frame holes using 12 springs. There Springs (x6) should be 7 V-rings and 7 frame holes in between each spring.
  • Page 14 ASSEMBLY STEP 13 Place the frame pad (6) on top of the springs. Adjust the frame pad so that the slits are directly above the T-sockets. Important: Don’t use the trampoline without the frame pad. It’s designed to protect your little jumpers! Trust us on this one. Frame Pad (x1) Socket Slit of Pad...
  • Page 15 STEP 15 If you want, take a snack break because you’re MORE THAN HALFWAY DONE, and you deserve it. This next step is easy. Just slide all the straight tubes (9) and curved tubes (10) into foam (11). If you’re having trouble getting the foam over the tubes, try adding a small amount of water inside the Straight Curved...
  • Page 16 ASSEMBLY STEP 17 Important: The pole cap (12) has two sides; one with a hexagon hole, and one with a regular hole. Insert the pole cap into one strap ring found on the top of the enclosure net. Make sure the hexagon hole is facing the net, and the regular hole is Pole Cap (x6) facing you.
  • Page 17 STEP 19 Take one end of the string (18) and tie a knot at the end. Begin threading the other end of the string through the left hole on the ring (16). Weave the string in and out of the holes on the ring and the net (17) to attach completely.
  • Page 18 ASSEMBLY STEP 21 Using a ladder, tie one end of the tightening cord (21) to a pole cap. Pull the cord tight, and then attach the other end of the cord to the nearest pole cap. Now attach the 4 straps at the top of the backboard to the tightening cord, and tie knots to secure.
  • Page 19 STEP 23 Insert the end caps (13) into the bottom of the sockets. Using the included plastic tie, attach the safety placard to the trampoline frame close to the enclosure door. End Cap (x6) Frame Socket Safety Placard (13) STEP 24 Congratulations on completing your new trampoline! (See...

  • Page 20: Maintenance And Care Information

    MAINTENANCE & CARE INFORMATION Congratulations and high five on successfully assembling your new Skywalker Trampolines 15' Round Trampoline with Enclosure! Now, the best way to keep your new trampoline in tip top shape, is to periodically check for: • Missing, improperly positioned, or insecurely attached frame padding, netting, enclosure tubes, or foam sleeves •...

  • Page 21: Instructions For Use

    INSTRUCTIONS FOR USE To reduce the risk of serious injury, read and follow all of the warnings, precautions, and instructions in this manual before you use the trampoline enclosure. Warnings and instructions for care, maintenance, and use of this trampoline and enclosure are included to promote safe enjoyable use of this equipment.

  • Page 22: Warning Label Placement

    Climb on to and off the trampoline. Do not jump on or off. Do not use the trampoline as a springboard to other objects. Inspect before using and replace any worn, defective or missing parts. For further equipment information contact Skywalker. For skill training information, contact a trainer certification organization. ATTACH TO TRAMPOLINE WARNING Do not land on head or neck.

  • Page 23: Instructions And Model Lessons

    INSTRUCTIONS & MODEL LESSONS The following lessons are examples of an instructional program. They should follow a complete discussion and demonstration of body mechanics between the supervision and the student(s). 1. Mounting and dismounting: Demonstration and practice of proper techniques. 2.
  • Page 24 Lesson 5: Seat Drop Lesson 6: Front Drop 1. Land in a sitting position with your legs parallel to the 1. Start from a low bounce and land on the mat in a mat. prone position. 2. Place your hands on the mat beside your hips. 2.

  • Page 25: Trampoline Safety Information

    TRAMPOLINE SAFETY INFORMATION In trampoline use, as in all active recreational sports, participants can be injured. However, there are steps that can be taken to reduce risk of injury. In this section, primary accident patterns are identified and the responsibilities of supervisors and jumpers in accident prevention are described.

  • Page 26: Enclosure Safety Information

    ENCLOSURE SAFETY INFORMATION NEED FOR TRAMPOLINE ENCLOSURE SAFETY A trampoline enclosure is a recreational product. The information on this page identifies important safety precautions. The precautions are not all-inclusive, because an enclosure can be used in ways that this manual cannot cover completely.

  • Page 27: Methods Of Accident Prevention

    METHODS OF ACCIDENT PREVENTION THE SUPERVISOR’S ROLE IN PREVENTING ACCIDENTS It is the responsibility of the supervisors of trampoline users to provide knowledgeable and mature supervision. They need to know and enforce all of the rules and warnings printed in this manual to minimize the likelihood of accidents and injuries.
