Steering wheel control interface for iveco vehicles

Download this manual

CHIV8C

Steering Wheel Control Interface

for Iveco Vehicles

APPLICATION

Note: Application data is subject to change at any time

Iveco Daily

2018 >

FEATURES

• Allows for the installation of a double DIN aftermarket stereo

• Retains factory steering wheel control functionality

• Retains factory phone buttons

• Provides outputs for speed pulse, reverse gear and park brake

DISCLAIMER

The information provided in this document is subject to change without notice due to manufacturer changes and/or improvements to the product/s. This

instruction manual is based on documented data and research. The manufacturer of this product cannot be held responsible for any changes made to the

vehicle by the manufacturer or damages that may occur through the installation of this product in accordance with the steps outlined herein.

Need help?

Do you have a question about the Aerpro CHIV8C and is the answer not in the manual?

Page 1 CHIV8C Steering Wheel Control Interface for Iveco Vehicles APPLICATION Note: Application data is subject to change at any time Iveco Daily 2018 > FEATURES • Allows for the installation of a double DIN aftermarket stereo • Retains factory steering wheel control functionality •...

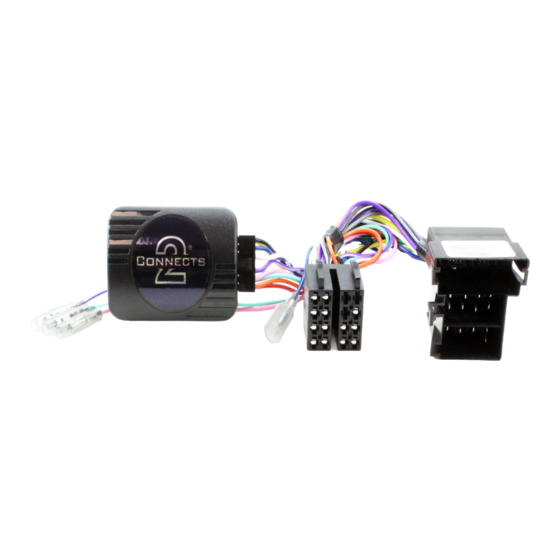

Page 2 PRODUCT INFORMATION The CHIV8C is a CAN steering wheel interface and harness which helps retain the steering wheel controls and factory phone button functionality of the vehicle (if vehicle is equipped). The lead features plug- and-play connectors for an easier installation process. Please note: This interface is designed for vehicles with the basic head unit.
Page 3 WIRING DIAGRAM FM/Blue Phantom Power Connections Fakra Antenna Connection Connect to aftermarket stereo Connect to OEM Antenna connector from vehicle Flying Wires Vehicle Specific Connector Pink - Speed Pulse Connect to relevant connector from vehicle ISO Connector Green - Park Brake Connect to aftermarket stereo Purple/White - Reverse Gear Main Wiring Loom...
Page 4 INSTALLATION GUIDE - WIRING See wiring diagram on Pg.4 for more information Before installing the interface, the factory stereo must be removed and disconnected. To do this, please consult the vehicle owner’s manual/handbook or contact a fitting professional. For universal patch leads, prepare the wiring loops in accordance with the instruction manual supplied before installation. 1.
