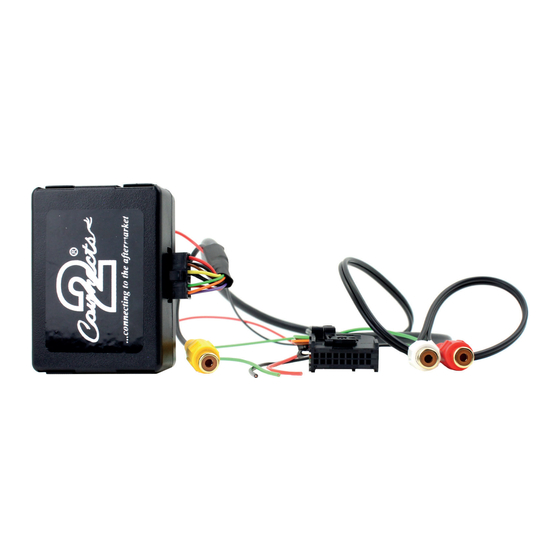

- Page 1 CAM-VW6-AD Rear Camera/AV Input Interface Application: Volkswagen Golf 2003>, Passat 2002>, Touareg 2002>, Touran 2002>, T5 2003> For Vehicles with MFD2/SRN Navigation Head Units www.connects2.com...
- Page 2 Connects2 can not be held responsible for the installation of this product. Technical Support Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible.
- Page 3 CONNECTION DIAGRAM/INSTALLATION Interface Box Harness Installation NB: Before installation, switch off ignition, disconnect the vehicle battery and remove the vehicle’s head unit. The interface is installed behind the vehicle’s head unit. www.connects2.com...
- Page 4 Note: If the 18pin AMP socket of the head-unit is already occupied, the vehicle may already have a factory TV-tuner installed. To complete installation, it must be unin- stalled. Disconnect the female 18pin AMP-connector of the factory harness and disconnect all wires from the factory TV-tuner. www.connects2.com...
- Page 5 Note: The interface is initialised to PAL. To connect an NTSC source, remove and isolate pin 15 of the 18pin female AMP connector of harness Activating AV Source CD-version Press AUDIO and select “AV“ DVD-version Press CD and select “AUX“ www.connects2.com...
- Page 6 NOTES www.connects2.com...
- Page 7 NOTES www.connects2.com...
- Page 8 NOTES www.connects2.com...
