Connects2 CTUPO02 Manual

ix

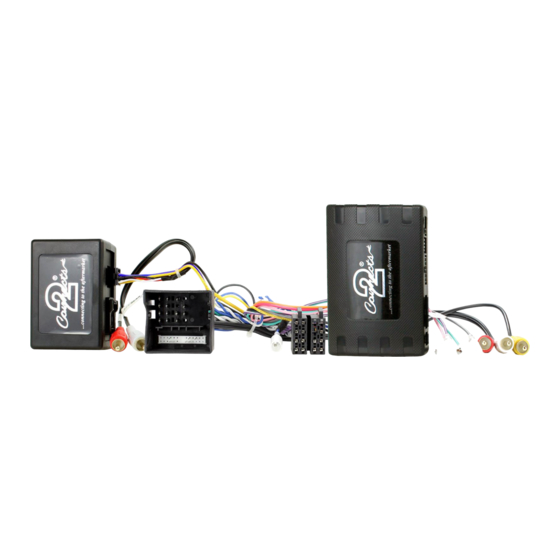

i. Interface Box
ii. ISO Connector (16 Pin)
iii. Quadlock Connector (40 Pin)
iv. RCA Amplifier (Red/White)
v. RCA AUX (Red/White)
APPLICATION
Porsche Panamera
Porsche Macan (95B)
Porsche Cayenne
For fiber-amplified vehicles with MOST 25 systems and quadlock connectors.
FEATURES
• Retains Steering Wheel Control Functionality
• Retains Phone Button Functionality
• Retains MOST 25 Fiber Amplified System
• Retains USB and AUX Inputs
• Retains Reversing Camera
• Retains Parking Sensor Audio and OEM Parking Sensor Graphics
• Provides Outputs for Park Brake, Reverse Gear, Speed Pulse, Mute & Amp Remote
• Updateable via USB
