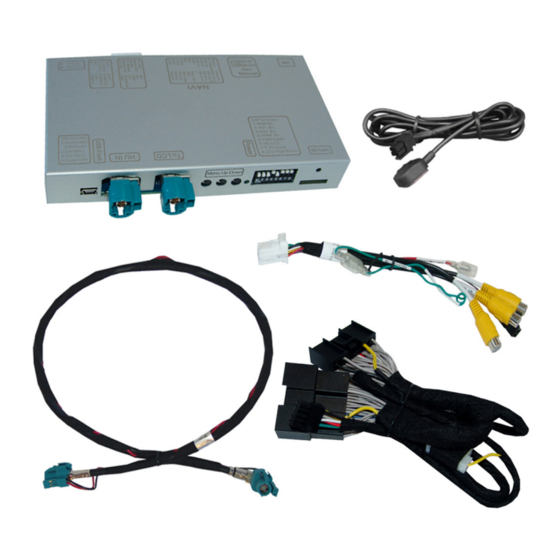

- Page 1 CAM-LR6-AD Camera Add-on Interface for select Jaguar/Land Rover vehicles with Incontrol Touch Pro systems www.c2vision-eu.com...
- Page 2 Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible. This will speed up the process and help us to help you.
- Page 3 CONNECTION DIAGRAM www.c2vision-eu.com...
- Page 4 INTERFACE LED STATUS & DIPSWITCHES Located on the front of the interface box you will notice 3x LED’s. These LED’s will showcase the status of the interface: 1) CAN-Bus (Reverse Gear) 2) CAN-Bus (Switching) 3) Power to Interface REAR FRONT Dipswitches on Interface Front Located on the front left of the interface are a row of 8 dipswitches.
- Page 5 INTERFACE LED STATUS & DIPSWITCHES Dipswitches on Interface Rear Located on the rear left of the interface are 4 dipswitches that deal with the CAN data. Below is a list of the various functions that they perform: Vehicle/Navigation Dip 1 Dip 2 Dip 3 Dip 4...
- Page 6 INSTALLATION Connecting Aftermarket Video Sources 1. Connect the CAM-LR6-AD’s analogue power supply to the interface box. *If no LED on the interface lights up with ignition on, then the single red wire (ACC-Out) and the purple wire (Manual ACC) will need to be connected together. 2.
- Page 7 •UI-CNTRL - Guidelines ON/OFF •Size H/V - Picture size Horizontal/Vertical FAQ - TROUBLE SHOOTING For any common problems, please refer to the troubleshooting table below or contact our technical team via: support.connects2.com/tickets/technical/ Symptom Reason Possible Solution Not all connectors have...
- Page 8 FAQ - TROUBLE SHOOTING Symptom Reason Possible Solution Video sources output set to AUTO or MULTI Set video source output fixed to PAL or which causes a conflict NTSC. It is best to set all video sources to with the interfaces auto the same standard.
