- Page 1 CHFO17C Steering Wheel Control Interface for select Ford vehicles INSTRUCTION MANUAL...

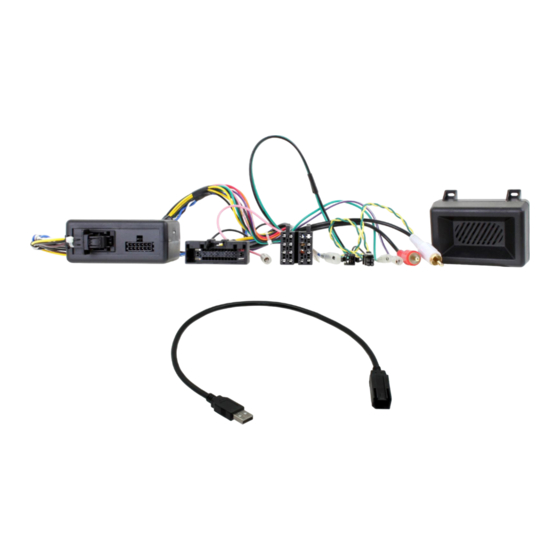

- Page 2 ABOUT THIS PRODUCT... CHFO17C Ford steering wheel control interface for Ford vehicles with CAN-Bus. Product Contents - Interface - Harness - Instruction Application Focus 2015> Prior to installation Read the manual prior to installation. Technical knowledge is necessary for installa- tion.
- Page 3 FITTING GUIDE 1. Remove and disconnect the original head unit. 2. Connect the 12 way molex connector of the head unit patch lead (supplied separately) to the interface. 3. Connect the opposite end of head unit patch lead to the head unit steering wheel control input on the back of the aftermarket head unit.
- Page 4 FITTING GUIDE For aftermarket head units which do not have an ISO connector the interface uses the following wiring colours: Wire Colour Function Wire Colour Function Purple Right Rear Speaker + Yellow Permanent 12V Purple/Black Right Rear Speaker - Black Ground Green Left Rear Speaker +...
