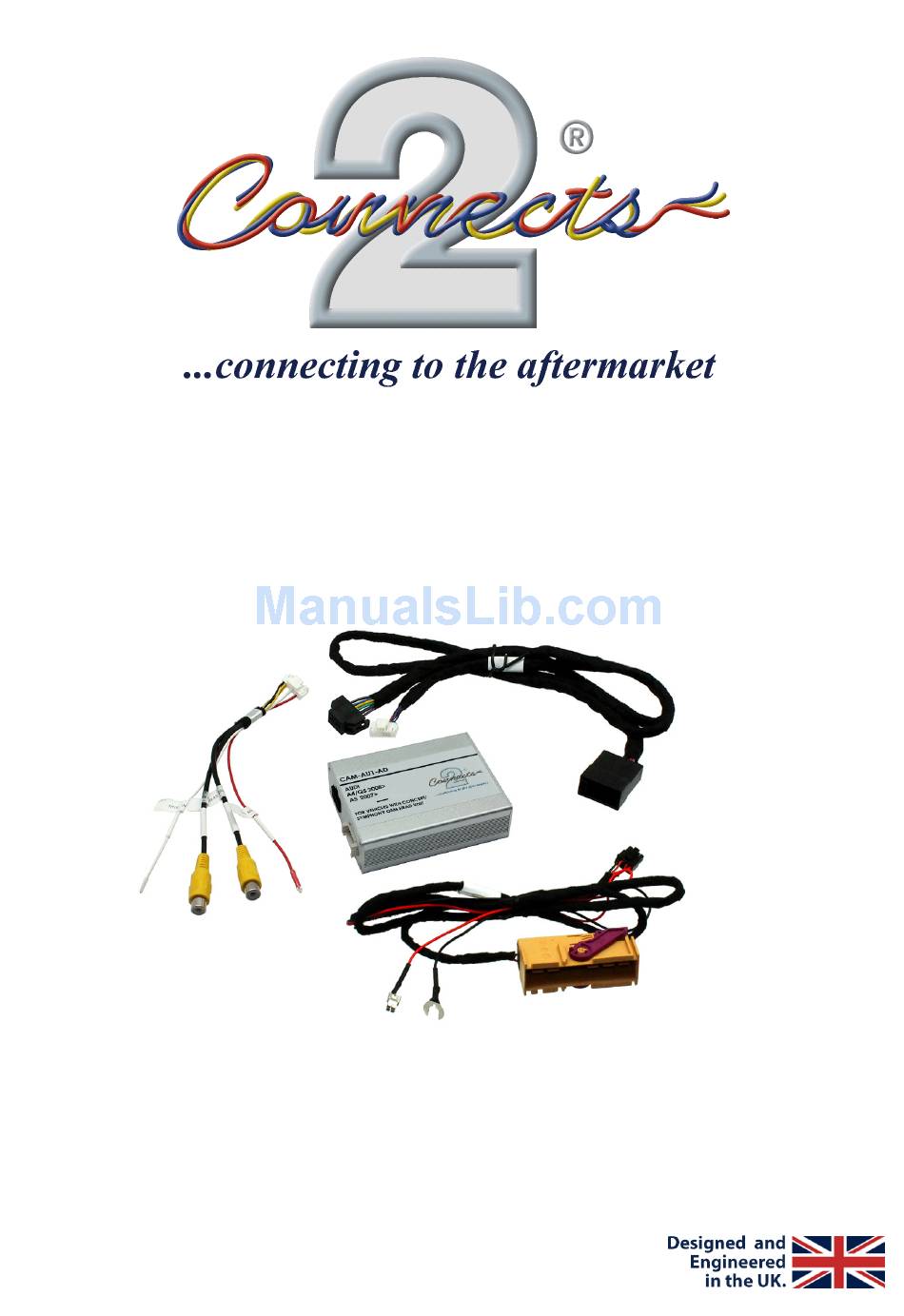

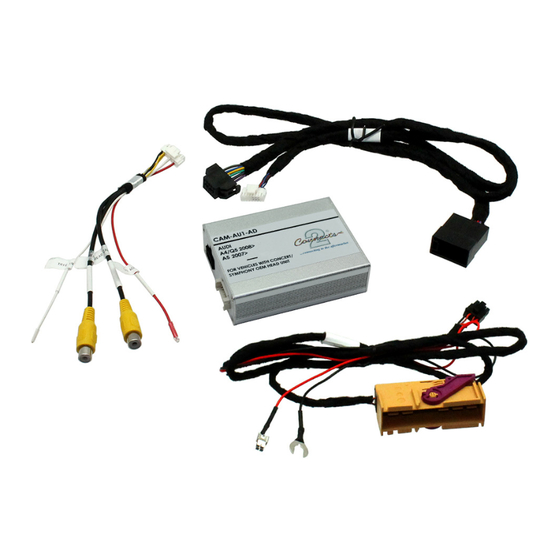

- Page 1 CAM-AU1-AD Audi Camera Add On Interface INSTRUCTION MANUAL www.connects2.com...
- Page 2 Connects2 can not be held responsible for the installation of this product. Technical Support Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible.
- Page 3 3. Locate the fuse box on the side of the dashboard. Take off the cover and locate the 46 way beige connector with the pink latch. Disconnect this and replace with the supplied vehicle power/CAN-Bus harness (Fig 1, 2). Connect the flying red wire to an ACC fuse and the black wire to Ground. www.connects2.com...
- Page 4 5. Connect the white 16 way camera harness connector (Fig 1, 3) to the interface. Make the camera connections as follows: Wire Colour Function (Label) Accessory 12V Out (Cam Acc) White Reverse signal in (Trig in) Yellow (RCA) Front camera video in (Front Cam) Yellow (RCA) Rear camera video in (Rear Cam) www.connects2.com...
