Connects2 CTSIV008 Manual

Steering wheel control interface for iveco vehicles

CTSIV008

Steering Wheel Control

Interface

for Iveco Vehicles

APPLICATION

Note: Application data is subject to change at any time

Iveco Daily

2023 >

Note: vehicle will need modification. Please familiarise yourself with the instructions before undertaking installation.

• Allows for the installation of a double DIN aftermarket stereo

• Retains factory steering wheel control functionality

• Retains factory phone buttons

• Provides outputs for speed pulse, reverse gear and park brake

The information provided in this document is subject to change without notice due to manufacturer changes and/or improvements to the product/s. This

instruction manual is based on documented data and research. The manufacturer of this product cannot be held responsible for any changes made to the

vehicle by the manufacturer or damages that may occur through the installation of this product in accordance with the steps outlined herein.

CTSIV008_IG_v1

Table of Contents

Do you have a question about the CTSIV008 and is the answer not in the manual?

Page 1 CTSIV008 Steering Wheel Control Interface for Iveco Vehicles APPLICATION Note: Application data is subject to change at any time Iveco Daily 2023 > Note: vehicle will need modification. Please familiarise yourself with the instructions before undertaking installation. FEATURES • Allows for the installation of a double DIN aftermarket stereo •...

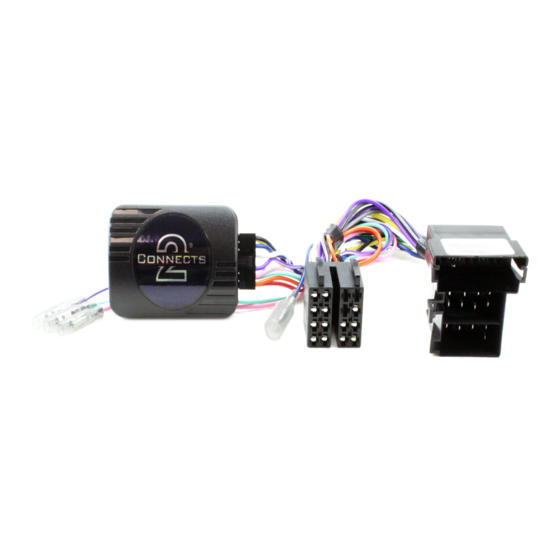

Page 2 PRODUCT INFORMATION The CTSIV008 is a CAN steering wheel interface and harness which helps retain the steering wheel controls and factory phone button functionality of the vehicle (if vehicle is equipped). The harness also allows for the retention of the original reversing camera. The lead features plug-and-play connectors for an easier installation process.
Page 3 Purple/White - Reverse Gear Main Wiring Loom Connector [14 Pin] Connect to Interface Box Interface Box Stereo Connection (Patch) Lead Connector [12 Pin] Connect to Interface Box before power connection is made to the interface Need help? Visit support.connects2.com/tickets/technical CTSIV008_IG_v1...
Page 4 If steering wheel control functions are unresponsive, please uninstall the interface and wiring and reinstall carefully in accordance with the above steps. For further help, please contact and fill out a support ticket with the full details of your issue at: support.connects2.com/tickets/technical CTSIV008_IG_v1...
