MS530M Brush Mulcher
OPERATOR'S MANUAL
Issue Date: May 2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS530M and is the answer not in the manual?

Questions and answers

Summary of Contents for Baumalight MS530M

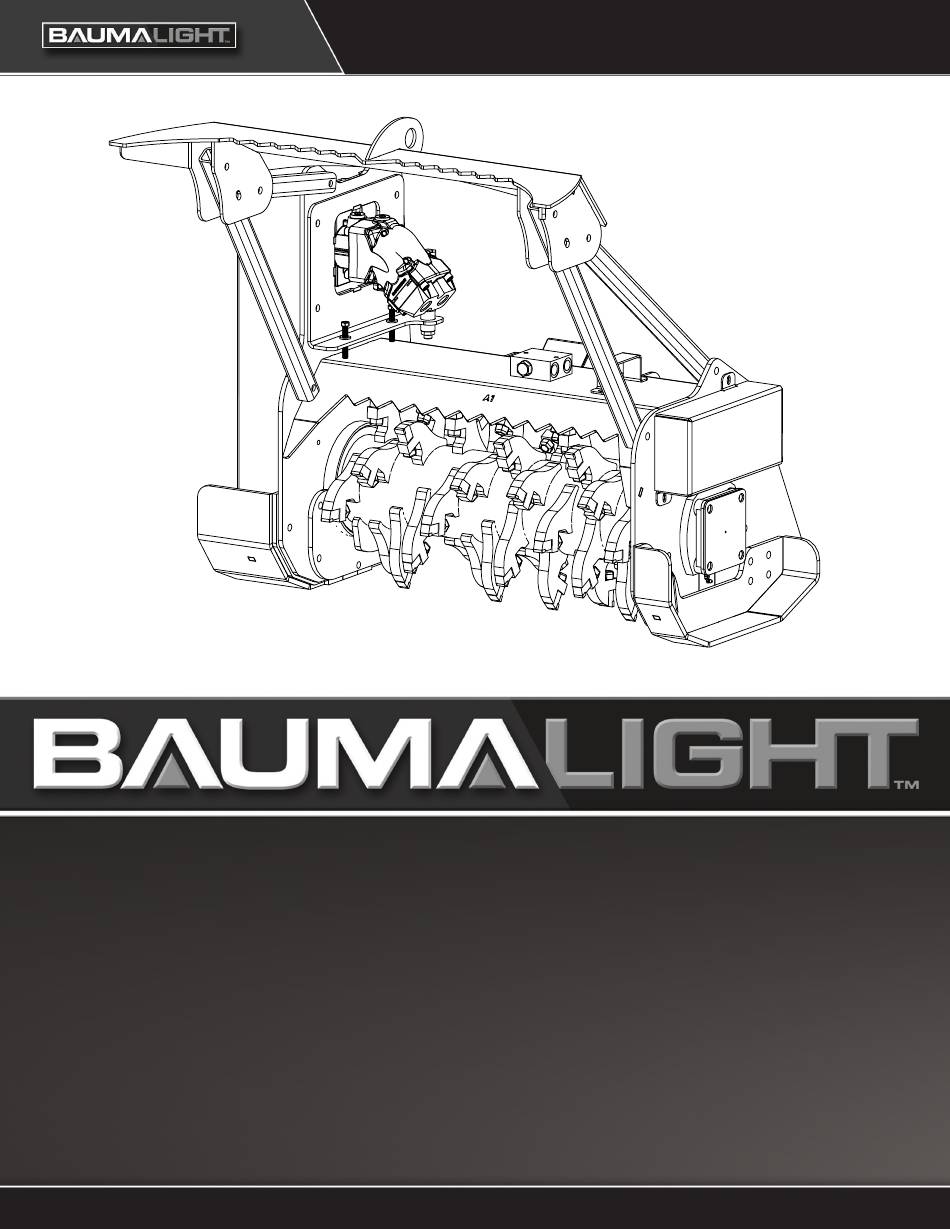

  • Page 1 MS530M Brush Mulcher OPERATOR’S MANUAL Issue Date: May 2024...
  • Page 2 Following is a list of videos and documents available on Baumalights website and also on YouTube to help and enhance maintaining the brush mulcher. The list below was current at the time this manual was issued. Additional content may be available. Activity ID Number Activity Name Description...
  • Page 3: Table Of Contents

    6�5 Replace Cutting Teeth �������������������������������������������������������������������������������������������������������������� 22 6�6 Motor Shaft Seal ����������������������������������������������������������������������������������������������������������������������� 23 6�7 Lubricate Rotor Bearings �������������������������������������������������������������������������������������������������������� 24 7 TROUBLESHOOTING ���������������������������������������������������������������������������������������������������������������������� 25 8 STORAGE ������������������������������������������������������������������������������������������������������������������������������������������ 26 8�1 Storing Mulcher ������������������������������������������������������������������������������������������������������������������������ 26 8�2 Remove From Storage ������������������������������������������������������������������������������������������������������������� 26 BAUMALIGHT ATTACHMENT WARRANTY ������������������������������������������������������������������������������������� 27...
  • Page 4: Introduction

    This manual covers the Baumalight Brush Mulcher, Serious injury or death of the operator or bystanders models MS530M. Use the Table of Contents as a may be caused if the tool is misused. Misuse may guide to locate required information.
  • Page 5: Safety

    2 SAFETY 2�1 Safety Alert Symbol and Safety 2�2 Operational Hazards Words You must read, understand and follow the WARNING instructions given operating unit manufacturers, as well as the instructions in this Prevent serious injury or death� manual. Read and understand this manual before The safety information in this manual is denoted operating brush mulcher�...
  • Page 6: Prepare For Emergencies

    • NEVER allow passengers on brush mulcher. If you do not understand any part of this manual, Lower Operating Speed contact Baumalight at 866-820-5603. • Lower operating speed while loading, unloading or performing heavy operations. •...
  • Page 7: Avoid Rollover

    Avoid Rollover Detach Brush Mulcher Safely The equipment may rollover, resulting in death or Detach brush mulcher on a firm and level surface. serious injury. To help prevent rollover: Brush mulcher may fall over if detached on sloping or soft surface. Be sure people, livestock and pets •...
  • Page 8: Hazards From Modifying Equipment

    Hazards From Modifying Equipment Avoid High Pressure Fluids Do not make any alterations to your brush WARNING mulcher. Altering the equipment may cause unsafe Pressurized fluids can penetrate the conditions and may void the manufacturer’s warranty. skin� Avoid Wood Dust Inhalation Hydraulic hoses can fail from age, damage and exposure�...
  • Page 9: 2�3 Maintenance Hazards

    Engage parking brake� Do not make unauthorized modifications. Contact Baumalight at 866-820-5603 before you weld, cut/ Turn engine off and remove key. drill holes, or make any other modifications. Place “Do Not Operate” tag on control Always use Baumalight replacement parts.
  • Page 10: Safety Signs

    3 SAFETY SIGNS The two and four panel safety decals are pictorial A. D005030 ^ WARNING - Pressurized fluid and have a yellow background. The panel with a hazard. Pressurized fluids can penetrate the triangle indicates the potential hazard. The panel skin.
  • Page 11 C. D005029 ^ WARNING - Read and understand E. D005230 ^ WARNING - Rotating parts safety signs on the machine and operating hazard. Do not reach into machine. Keep away instructions in this manual before operating from machine. machine. D005129 D005252 F.
  • Page 12: Initial Setup

    4 INITIAL SETUP 4�1 Hydraulics G. D006995 ^ WARNING - Wear hard hat with WARNING safety shield. Pressurized fluids can penetrate the skin� Disconnect and lock out power source before disconnecting and/or connecting hydraulic hoses� The mucher is equipped with short hoses that are connected to the hydraulic motor.
  • Page 13: Operation

    5 OPERATION 5�1 Preparation for Use Check all bolts for tightness and remove all WARNING shipping tags, bags, skids, and blocking. Drilling, sawing, sanding or machining Review and understand this manual and operating wood products can expose you to wood unit manual.
  • Page 14: 5�3 Machine Components

    5�4 Attach To Skid Steer 5�3 Machine Components A. Hydraulic Motor WARNING B. Cutting Teeth C. Rotor To prevent injury or machine damage D. Directional Felling Hook put transmission in “Park”� E. Push Bar F. Quick Attach Never position yourself between skid G.
  • Page 15: 5�5 Detach From Skid Steer

    5�5 Detach From Skid Steer 5�7 Carbide Teeth Break-In WARNING Prevent serious injury or death caused by unexpected movement: Park skid steer on a level surface� 1� Engage skid steer park brake� 2� Disconnect hydraulic drive� 3� Shut off engine and remove key. 4�...
  • Page 16: 5�8 First Time User Tips

    5�8 First Time User Tips • First, operate all functions in a clear area with WARNING skid steer at idle speed to get a good feel for the controls before you actually move into any Always turn off the skid steer and brush.
  • Page 17: 5�9 Field Operation

    5�9 Field Operation WARNING WARNING Prevent serious injury or death caused Wear an approved dust mask or by unexpected movement: respirator� Park skid steer on a level surface� 1� Follow local, state federal Engage skid steer park brake� 2� regulations� Disengage hydraulic drive�...
  • Page 18: 5�10 Clearing Jams

    5�10 Clearing Jams If the rotor stalls, stop rotor motion, raise slightly and try again. 1. If still stalled, lower unit so teeth tips dig slightly into sod, a log or stump. 2. Reverse hydraulic flow to mulcher. Reversing the flow does not power the rotor in the reverse direction, it only opens the hydraulic lock on the rotor.
  • Page 19: Service And Maintenance

    6 SERVICE AND MAINTENANCE 6�1 Maintenance Maintenance Chart General Inspection Inspect the unit for any buildup of contamination Daily (dirt, stones, etc.). Cutting Teeth Check and replace one at a time as necessary. Every 4 hours. With daily use expect to replace 4 to 6 teeth per day.
  • Page 20: 6�3 Check Belt Tension

    6�3 Check Belt Tension 1. Lower mulcher to ground. 4. Inspect belt (B) for wear, damage, alignment and proper tension. 2. Set parking brake, stop engine and remove key. WARNING Moving parts can crush and cut� Keep clear of moving components� Follow lockout procedure...
  • Page 21: 6�4 Replace Belt

    6�4 Replace Belt 1. Lower mulcher to ground. 7. Belt deflection should be 0.5 in. (13 mm) at 3.0 lbs of force for a used belt or 4.25 lbs of force 2. Set parking brake, stop engine and remove for a new belt. key.
  • Page 22: 6�5 Replace Cutting Teeth

    15. Install inspection cover (A). Do not operate mulcher with cover (A) removed. Note: Parts breakdown can be found on Baumalight’s website. www.baumalight.com The mulcher is equipped with a case drain line that is to be routed to the skidsteer hydraulic reservoir.
  • Page 23: 6�6 Motor Shaft Seal

    6�6 Motor Shaft Seal f the case drain line is not connected or becomes obstructed, the vented adapter or zero leak relief valve (A) will vent the pressurized hydraulic fluid to the atmosphere. The zero leak relief valve will self reset after hydraulic pressure reduced.
  • Page 24: 6�7 Lubricate Rotor Bearings

    6�7 Lubricate Rotor Bearings The bearings are factory lubricated with a lithium or lithium complex base grease which is suitable for most applications. Select a grease that is compatible with a lithium or lithium complex grease. The bearings should contain as much grease as speed will permit.
  • Page 25: Troubleshooting

    7 TROUBLESHOOTING PROBLEM CHECK SOLUTION Rotor does not spin. Check drive belt. Replace belt if damaged or broken. Rotor jammed. Remove material from rotor. See Clearing Jams. Low oil level. Check oil level in skid steer. Add if necessary. Low oil flow. Check flow control on skid steer.
  • Page 26: Storage

    8 STORAGE 8�1 Storing Mulcher 8�2 Remove From Storage 1. Store mulcher in a dry place. 1. Review Operator’s manual check adjustments. 2. Clean mulcher thoroughly. Dirt and wood chips will draw moisture and cause rust. 2. If parts have been replaced, verify they run properly.
  • Page 27: Baumalight Attachment Warranty

    The manufacturer is under no circumstances liable for carrier unit damage of any kind. The manufacturer is not liable for the maintenance of the product. Baumalight will not cover time to diagnose and repair compatibility issues between carrier and attachment.
  • Page 28 For parts, specifications and the latest machine information please visit our website. www�baumalight�com MTB MFG INC. CORPORATE HEADQUARTERS 4575 Powell Rd., Wallenstein, Ontario Canada N0B 2S0 Phone - 519.698.9864 Toll Free - 866.820.7603 Fax - 519.698.1087 www�baumalight�com...
