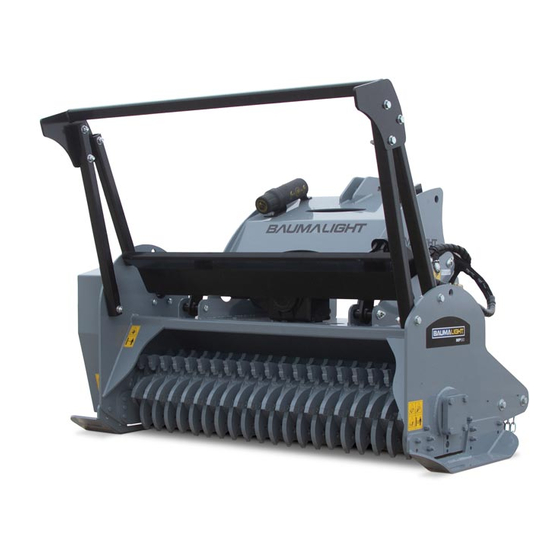

MP560 and MP572 Brush Mulcher
OPERATOR'S MANUAL
Issue Date: July 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP572 and is the answer not in the manual?

Questions and answers

Summary of Contents for Baumalight MP572

  • Page 1 MP572 MP560 MP560 and MP572 Brush Mulcher OPERATOR’S MANUAL Issue Date: July 2021...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1 INTRODUCTION ��������������������������������������������������������������������������������������������������������������������������������� 1 1�1 Overview �������������������������������������������������������������������������������������������������������������������������������������� 1 1�2 Intended Use And Foreseeable Misuse ������������������������������������������������������������������������������������ 2 2 SAFETY ������������������������������������������������������������������������������������������������������������������������������������������������ 3 2�1 Safety Alert Symbol And Safety Words ������������������������������������������������������������������������������������ 3 2�2 Operational Hazards ������������������������������������������������������������������������������������������������������������������� 4 Prepare For Emergencies ���������������������������������������������������������������������������������������������������������� 5 Replace Safety Signs �����������������������������������������������������������������������������������������������������������������...
  • Page 3: Introduction

    Operator’s Manual. This manual covers the MP560 and MP572 Baumalight Brush Mulchers. Use the Table of Contents as a guide to locate required information. Keep this manual handy for frequent reference and to pass on to new operators or owners. Call...
  • Page 4: 1�2 Intended Use And Foreseeable Misuse

    1�2 Intended Use And Foreseeable Misuse The brush mulcher is designed to be used by experienced operators, trained in the safe operation of a tractor and trained in the hazards related to using the brush mulcher and the safe use of the mulcher for the intended purpose.
  • Page 5: Safety

    2 SAFETY 2�1 Safety Alert Symbol And Safety Words You must read, understand and follow the CAUTION instructions given operating unit CAUTION - Indicates a hazardous manufacturers, as well as the instructions in this situation, which, if not avoided, could manual.
  • Page 6: 2�2 Operational Hazards

    Use brush mulcher only for the designed may be found at: www.asae.org or www.osha.gov. applications� If you do not understand any part of this manual, Any other use may result in personal contact Baumalight at 866-820-7603. injury, damage to equipment and may void the warranty�...
  • Page 7: Prepare For Emergencies

    Safety signs are identified in Section 3 of this manual. DANGER • Replacement safety signs are available from Prevent electrocution� your Baumalight dealer. Death or serious injury can result if equipment comes near or contacts Do Not Allow Riders power lines� •...
  • Page 8: Hazards From Modifying Equipment

    Raised Attachment Stay Clear Of Rotating Driveshaft WARNING WARNING Crushing hazard� Entanglement in a rotating driveshaft can cause serious injury or death� Raised, unsupported brush mulcher can fall, resulting in death or serious injury� Keep tractor shields and driveshaft shields in place at all times� DO NOT Never enter the area under a raised operate without driveshaft guards�...
  • Page 9: 2�3 Maintenance Hazards

    WARNING for the job. Burn hazard� Do not make unauthorized modifications. Contact Baumalight at 866-820-7603 before you weld, cut/ Hot and high pressure hydraulic oil� drill holes, or make any other modifications. Always use Baumalight replacement parts. Allow oil to cool before servicing�...
  • Page 10: Safety Signs

    D005365 C. D005129 ^ WARNING - Rotating parts hazard. Do not reach into machine. Keep away from machine. Note: MP560 is illustrated. Decals are in similar locations on the MP572. A. D005262 ^ WARNING - P65 warning information. D005129 WARNING:...
  • Page 11 D. D005517 ^ WARNING - F. D005224 ^ WARNING H. D005126 ^ WARNING - Remove key before servicing. - Rotating driveshaft. Pressurized fluid hazard. Entanglement hazard. Keep Pressurized fluids can away from driveshaft while it penetrate the skin. Do not is rotating.
  • Page 12: Operation

    4 OPERATION 4�1 Preparation For Use 4�2 Driveshaft Dimension A PTO driveshaft is supplied with the machine. To WARNING accompany the variety of 3 point hitch geometry available today, the driveshaft can be too long for Drilling, sawing, sanding or machining most machines or too short for others.
  • Page 13 e. Assemble the 2 ends of the shaft. Make sure shaft can telescope freely. If it does not, separate the 2 parts and inspect for burrs or cuttings on shaft ends. Be sure it telescopes freely before installing.
  • Page 14: 4�3 Pre-Operation Check List

    4�3 Pre-Operation Check List Check-mark Check these items: Frequency Check the three linch pins on the hitch to verify they are Each operation. securely fastened. Verify the pins on each end of the drive shaft are secured. Each operation. Verify the safety chains on the drive shaft are securely Each operation.
  • Page 15: 4�5 Attach Brush Mulcher

    4�5 Attach Brush Mulcher 4�6 Detach Brush Mulcher WARNING WARNING Prevent serious injury or death caused To prevent injury or machine damage put transmission in “Park” and check by unexpected movement: the full range of hitch for interference, Park tractor on a level surface� 1�...
  • Page 16: 4�7 Transporting

    4�9 First Time User Tips 4�7 Transporting 1. Verify all reflectors and Slow Moving Vehicle • First, operate all functions in a clear area with (SMV) sign are visible. the tractor at idle speed to get a good feel for the controls before you actually move into any 2.
  • Page 17: 4�10 Field Operation

    4�10 Field Operation WARNING WARNING Always turn off the tractor and disengage Entanglement in a rotating driveshaft the PTO drive before getting off the seat can cause serious injury or death� and approaching the cutting wheel� Keep tractor shields and driveshaft shields in place at all times�...
  • Page 18 WARNING WARNING Wear an approved dust mask or Never approach brush mulcher before respirator� cutting wheel has come to a complete stop� Follow local, state federal regulations� WARNING Never operate brush mulcher when other people are in the vicinity� Debris can be thrown several feet from cutting area�...
  • Page 19: Service And Maintenance

    5 SERVICE And MAINTENANCE 5�1 Maintenance Maintenance Chart General Inspection Inspect the unit for any buildup of Daily contamination (dirt, stones, etc.). Cutting Teeth Check and replace one at a time as Every 4 hours. necessary. With daily use expect to replace 4 to 6 teeth per day.
  • Page 20: 5�3 Check Belt Tension

    5�3 Check Belt Tension 1. Lower mulcher to ground. 2. Set parking brake, stop engine and remove key. WARNING Moving parts can crush and cut� Keep clear of moving components� Follow lockout procedure before servicing� 3. Open inspection cover (A). 4.
  • Page 21: 5�4 Replace Belt

    5�4 Replace Belt 1. Lower mulcher to ground. 12. Place a straight edge (I) on drive pulley and rotor pulley. Pulleys must be aligned or belt 2. Set parking brake, stop engine and remove will wear quickly. Adjust pulley alignment as key.
  • Page 22: 5�5 Adjust Slip Clutch

    5�5 Adjust Slip Clutch WARNING Entanglement in a rotating driveshaft can cause serious injury or death� Disconnect and lockout power source before adjusting or servicing� CAUTION Slip clutch may be hot� Wait for clutch to cool before adjusting or servicing� Bondioli Driveshafts 4-Disk 120 Hp 1,000 rpm OEM Part Number...
  • Page 23: 5�6 Replace Cutting Teeth

    Install plug (B) and fill gearbox through hole (A) until oil is 2 in. (51 mm) below plug hole (A). Note: Parts breakdown can be found on Baumalight’s website. www�baumalight�com Note: Parts breakdown can be found on Baumalight’s website. www�baumalight�com...
  • Page 24: Troubleshooting

    Model MP560 is rated for 45 - 68 hp input. Model MP572 is rated for 65-125 hp input. A bigger tractor can be used if it is idled down.
  • Page 25: Storage

    7 STORAGE 7�1 Storing Mulcher 1. Store mulcher in a dry place. 2. Clean mulcher thoroughly. Dirt and wood chips will draw moisture and cause rust. 3. Check condition of cutting teeth. Replace as necessary. (See Service and Maintenance section.) 4.
  • Page 26: Warranty

    8 WARRANTY This product is warranted to be free of defects in materials and workmanship under normal use and service, for a period of one year from the date of purchase, when operated and maintained in accordance with the Operating and Maintenance Instructions supplied with this unit. This warranty does not cover misuse or negligence.
  • Page 28 For parts, specifications and the latest machine information please visit our website. www�baumalight�com MTB MFG INC. CORPORATE HEADQUARTERS 4575 Powell Rd., Wallenstein, Ontario Canada N0B 2S0 Phone - 519.698.9864 Toll Free - 866.820.7603 Fax - 519.698.1087 www�baumalight�com...
