ASSEMBLY INSTRUCTIONS
Adjusting the temperature:
11.2.

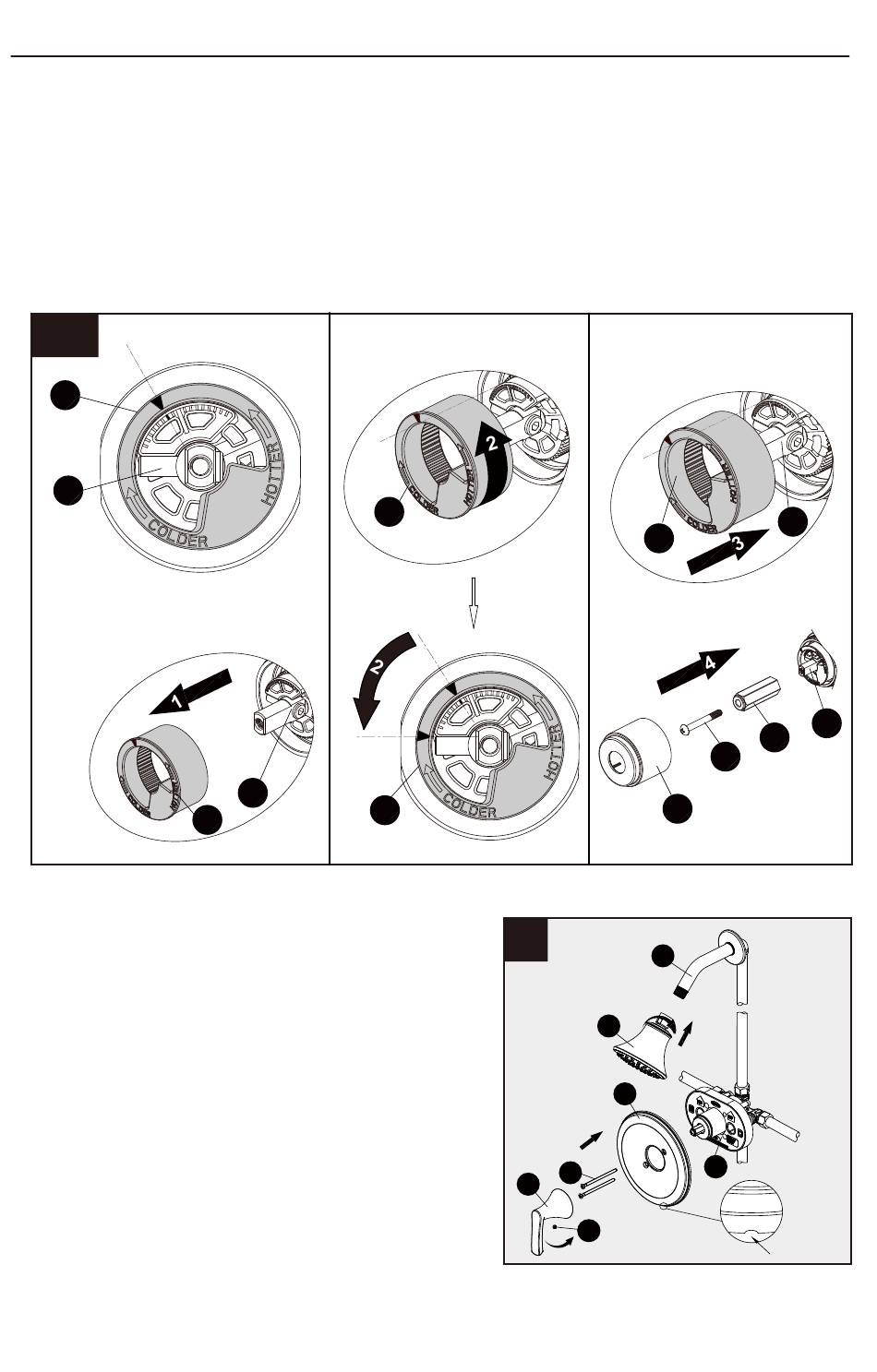

a. As shown in fig a, make sure the cartridge assembly (J) is in the off position. Note the position of
the stop ring (J1) on the cartridge assembly (J). For hotter water, remove the stop ring (J1) vertically
from the cartridge assembly (J).
b. As shown in fig b, adjust the stop ring (J1) in a counterclockwise direction.
c. As shown in fig c, reinstall the stop ring (J1) onto the cartridge assembly (J). Reinstall the inverter
(M) and screw (N) using the phillips screwdriver (not included) and fasten the sleeve (L).
NOTE:
A thermometer (not included) can be held in the running water to aid in reaching the desired
water temperature. Adjust the stop ring (J1) one tick at a time, then check temperature for
satisfaction. Ensure safety while adjusting temperatures.
11.2
Fig a
J1
J
(Initial position)
12. Installing the escutcheon, handle and showerhead:
a. Install the escutcheon (D) onto the valve body (H)
and secure to the valve body (H) using the escutcheon
screws (E). Place the handle (F) onto the valve body
(H) and secure with the handle screw (1) using a
Allen wrench (Q, Hex: 2.5mm).
b. Install the showerhead (C) to the end of the
shower arm (B) by twisting in a clockwise direction.
Hand-tighten only.
+
