ASSEMBLY INSTRUCTIONS

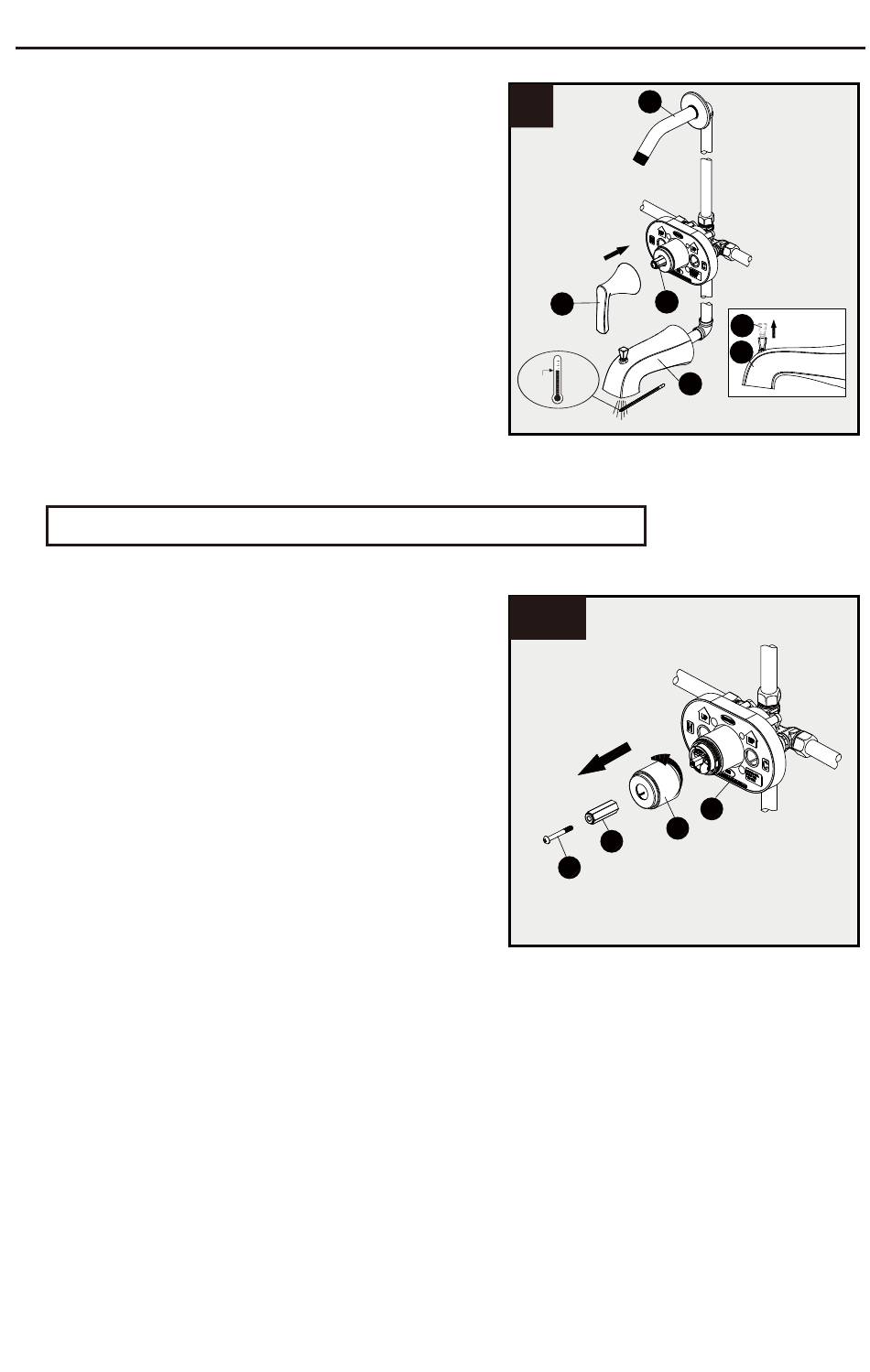

10. Checking for leaks:
a. Place the handle (F) on the end of the inverter (M)
and turn the handle to the on position.
b. When the valve is turned on, water normally flows
through the tub spout (G). To activate the shower,
turn the valve on and pull the knob (1) up. Hold the
knob (1) until the water flows continiously from the
shower arm (B).
c. Check for leaks. Restore the position of the handle
(F) and the knob (1).
d. Rotate the handle (F) counterclockwise until the
water is to the maximum desired temperature.
e. Shut off the water at the faucet and supply lines.
Remove the handle (F).
NOTE: A thermometer (not included) can be held
in a running water to aid in reaching the the desired
water temperature.
To adjust maximum temperature, go to step 11.1. If not, go to step 12.
11.1.
Adjusting the temperature:
Unscrew the screw (N) using a Phillips screwdriver
(not included) and remove the inverter (K). Then
unscrew the sleeve (L).
10
F
4
Hottest
120°F
(49°C)
11.1
N
8
B
M
1
G
G
H
L
M
Up for
shower
