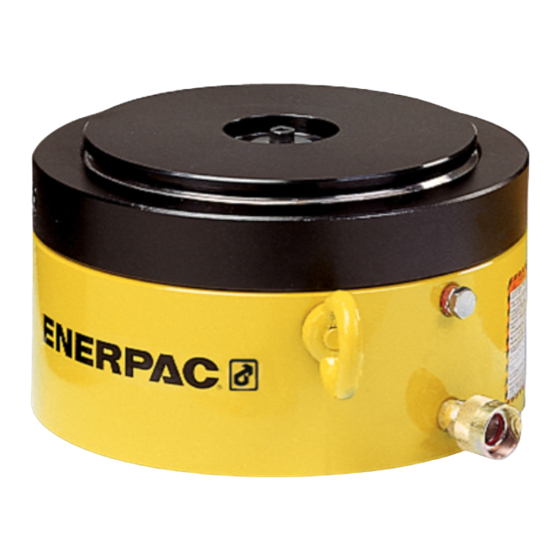

CLP-Series, Pancake Lock Nut Cylinders
[1]
We have replaced the CLP-Series, Pancake Lock Nut Cylinders with our new LPL-Series, Low-
height Lock Nut Cylinders. Information for the LPL-Series can be found on the following
page: LPL-Series, Low-height Lock Nut cylinders page
Download the conversion tool
• Enerpac pancake lock nut cylinders have an extremely low height for use in confined areas
• Lock nut for positive and safe mechanical load holding over a long period of time
• Single-acting, load return
• Optional special synthetic coating for improved corrosion resistance and lower friction for smoother
operation
• Overflow port functions as a stroke limiter
• CR-400 coupler and dust cap included on all models.
Cylinder
Stroke
Capacity
ton (kN) mm
60 (606) 50
100
50
(1027)
160
45
(1619)
200
45
(1999)
260
45
(2567)
400
45
(3916)
520
45
(5114)
Note: For longer strokes, see CLL-Series
Note: For lightweight aluminium, see RACL-Series
Cylinder Stroke
Capacity
[3]
Cylinder
Effective
Model
Area
Number
2
cm
CLP-
86,6
602
CLP-
146,8
1002
CLP-
231,3
1602
CLP-
285,6
2002
CLP-
366,8
2502
CLP-
559,5
4002
CLP-
730,6
5002
[4]
[5]
[2]
Oil Collapsed
Capacity Height
3
mm
cm
432 125
734 137
1040 148
1285 155
1650 159
2517 178
3287 192
Oil Collapsed
Capacity Height
Extended Outside
Height Diameter
mm mm
175 140
187 175
193 220
200 245
204 275
223 350
237 400
Extended Outside
Height Diameter
Weight
kg
15
26
44
57
74
134
189
Weight
