Enerpac CLP Series Instruction Sheet

Customer Service: (704) 463-1070
EIS 67.118-1 02/2012 Rev. B
index:
English Instruction Sheet (GB) .................................................................. page ...............1-4
Français notice d'Emploi (FR) ................................................................... page ...............5-7
deutsch Bedienungsanleitung (d) ............................................................. Seite .............8-10
Italiano Manuale Istruzioni (I) ..................................................................... pagina ........11-13
Español Instrucciones (ES) ...................................................................... página ........14-16
português (pT) .......................................................................................... página ........17-19
nederlands Gebruikershandleiding (nl) .................................................. pagina ........20-22
Svenska Instruktionsblad (SV) ................................................................. sida ............23-25
Ελληνικά (GR) ................................................................................................................26-29
pycckий (Ru)............................................................................................. ....................30-32
1.0 ImPoRtant RECEIvIng InStRuCtIonS
Visually inspect all components for shipping damage.
Shipping damage is not covered by warranty. If
shipping damage is found notify carrier at once. The
carrier is responsible for all repair and replacement
costs resulting from damage in shipment.
safety first
Read all instructions, warnings and cautions carefully.
Follow all safety precautions to avoid personal
injury or property damage during system operation.
Enerpac cannot be responsible for damage or
injury resulting from unsafe product use, lack of
maintenance or incorrect product and/or system
operation. Contact Enerpac when in doubt as to the
safety precautions and applications.
To pRoTECT youR waRRanTy, uSE only
EnERpaC hydRaulIC oIl.

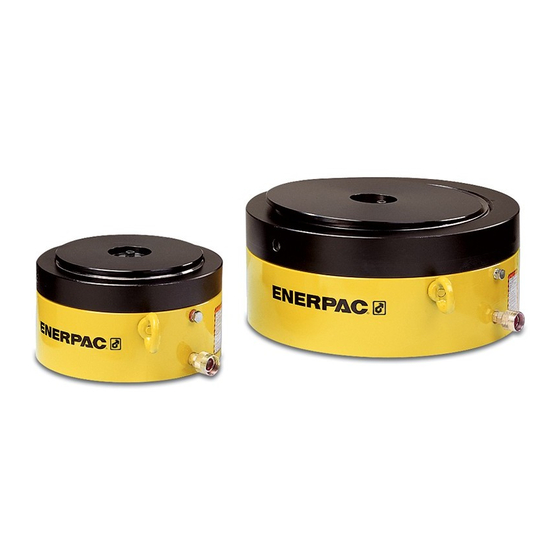

2.0 PRoduCt dESCRIPtIon
Single-acting, load return cylinders with an overflow
oilport for stroke restriction. Clp cylinders are
provided with a fully threaded plunger and a safety
lock nut for positive loadholding operations. Clp
cylinders do not have a stopring. See illustration 1.
For specifications and dimensions see page 4.
3.0 gEnERaL SafEty ISSuES
Failure to comply with following cautions and
warnings could cause equipment damage or
personal injury.
Order Online at: www.BuyEnerpac.com
Instruction Sheet
CLP-Series Cylinders
maximum pressure 700 bar [10,000 psi]
WaRnIng: CLP cylinders are not equipped with a
stopring to retain the plunger. To prevent plunger
over -extension, a port is provided to vent
the oil out of the cylinder as the plunger
reaches the maximum stroke. when the
red line around the plunger becomes
visible, the plunger is at maximum extension. Further
extension could result in the plunger being forced
out of the cylinder. See illustration 1.

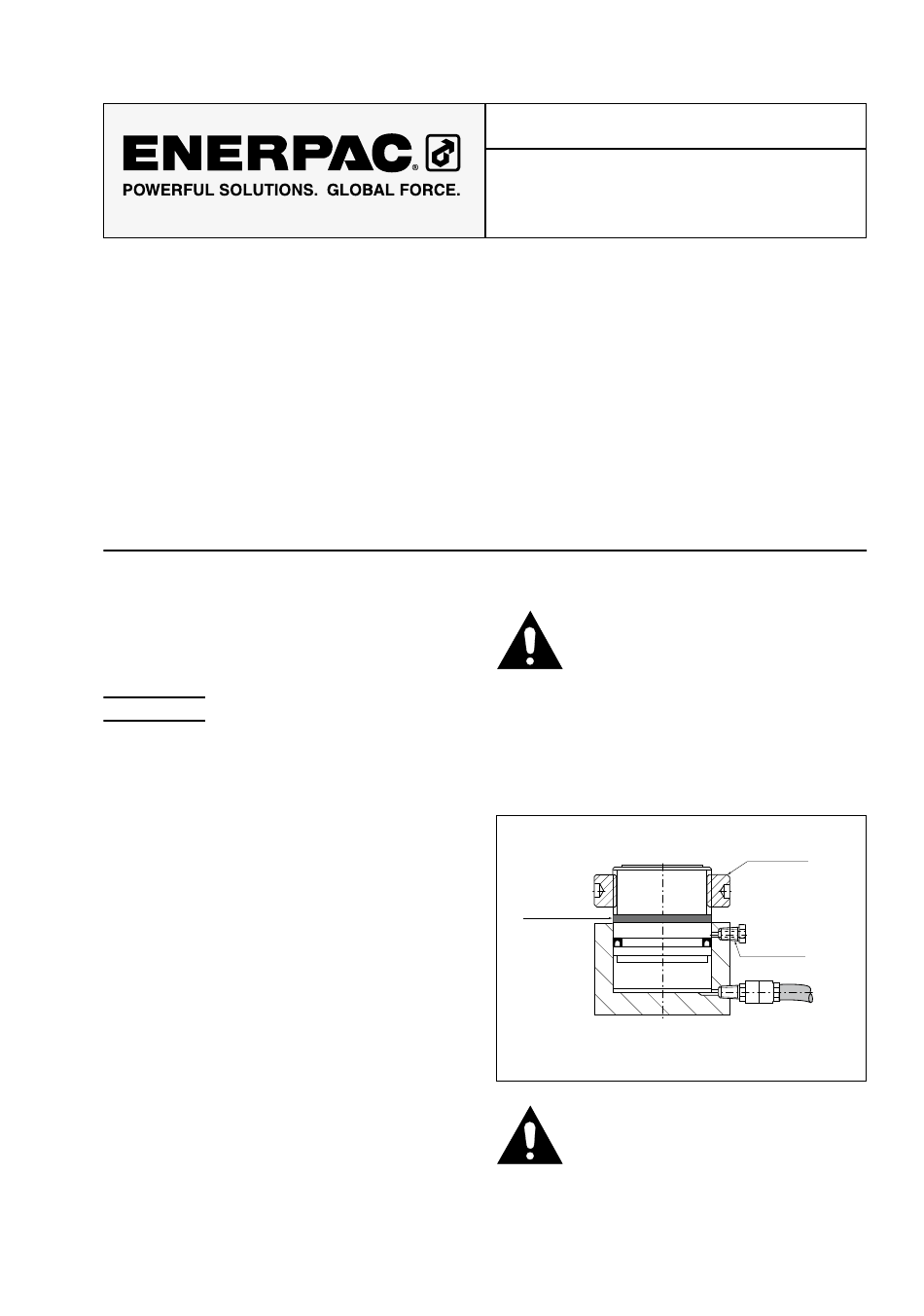

Illustration 1 - CLP cylinders
REd LInE
plunger shown at maximum extension
WaRnIng: nEvER remove the plug
or substitute a conventional pipe plug
from the plunger travel restriction port.
1
lock nut
plunger Travel
Restriction port
