Operating Guide Termix VMTD-F MIX-I
5.0 Design

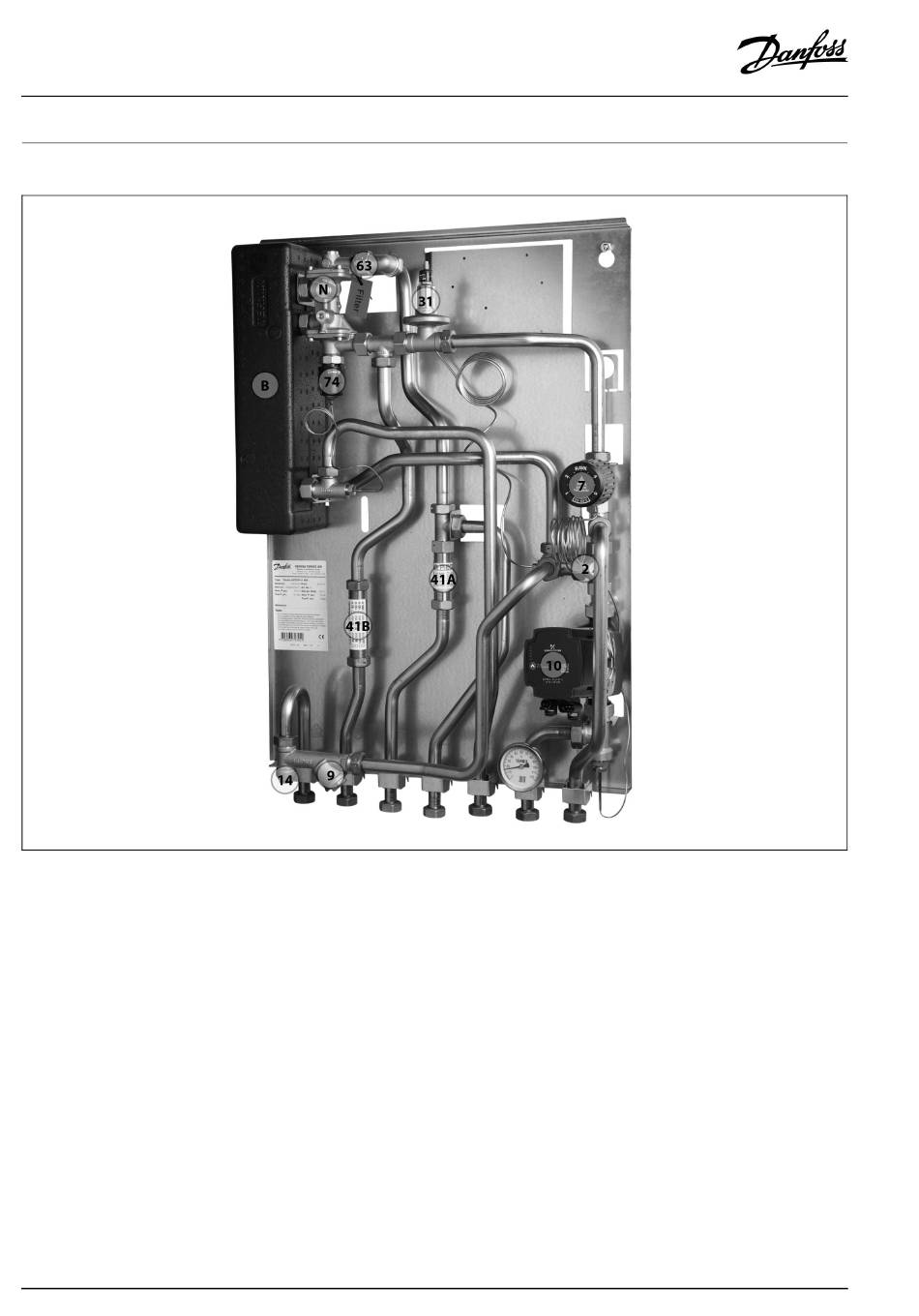

5.1 Design
Your substation might look different than the substation shown.
Design description
B
Heat exchanger, DHW
N
Circulation connection
2
Single check valve
7
Thermostatic controller, HE
9
Strainer
10 Circulator pump
8 | © Danfoss | 2024.01
14
Sensor pocket, energy meter
31
Differential pressure controller
41A Fitting piece, cold water mains
41B Fitting piece, energy meter
63
Sieve
74
IHPT controller, DHW
AQ110886479343en-010601 / LUK4025001
