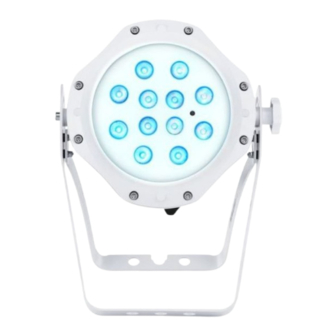

- Page 1 Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 25.04.2022, ID: 540667, 540669...
-
Page 3: Table Of Contents
7.1 Operating on the unit........................30 7.2 Menu overview..........................50 7.3 Functions in 6-channel DMX mode................... 51 7.4 Functions in 8-channel DMX mode................... 52 7.5 Functions in 11-channel DMX mode..................53 Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR... - Page 4 Table of Contents Technical specifications........................59 Plug and connection assignments....................62 Troubleshooting............................63 Cleaning............................... 65 Protecting the environment......................66 Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
-
Page 5: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR... -
Page 6: Further Information
Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR... -
Page 7: Notational Conventions
The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’ , ‘OFF’ . Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR... -
Page 8: Symbols And Signal Words
1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR... - Page 9 Warning signs Type of danger Warning – high-voltage. Warning – hot surface. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 10 General information Warning signs Type of danger Warning – dangerous optical radiation. Warning – suspended load. Warning – danger zone. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
-
Page 11: Safety Instructions
Extend the operating life of the device by regular breaks and by avoiding frequent switching on and off. The device is not suitable for continuous operation. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR... - Page 12 Do not use the device if covers, protectors or optical components are missing or damaged. WARNING! Eye damage caused by high light intensity Never look directly into the light source. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 13 Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 14 Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
-
Page 15: Features
You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR... - Page 16 The seals and screw connections of the equipment must be checked regularly to ensure a fault-free operation. In cases of doubt, consult a specialist workshop in due time. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
-
Page 17: Installation
Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR... - Page 18 When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 19 Always work from a stable platform whenever installing, moving or servicing the unit. In doing so, the area underneath the unit must be cordoned off. The safety cable must be attached to the safety eyelet. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 20 Installation Please note that this device must not be connected to a dimmer. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
-
Page 21: Starting Up
Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR... - Page 22 Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 23 When shipping, the battery is already installed in the remote and protected against discharge by a transparent plastic foil. Remove the plastic foil prior to first use. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
-
Page 24: Connections And Controls
Connections and controls Connections and controls ö & Power Out Power In Max:10A DMX In DMX Out Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR... - Page 25 Opens a submenu or confirms a value. [UP] Increases the displayed value by one. [DOWN] Decreases the displayed value by one. 6 Safety cable eyelet 7 Pressure compensation element Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 26 DMX output, designed as 3-pin XLR panel socket (IP65) 10 [Power In] Input socket (Power Twist TR1) for powering the device 11 [Power Out] Output socket (Power Twist TR1) for powering further devices Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 27 354223, optionally avail‐ Since the universal remote control can be used for several device types, some buttons able) may not be assigned and therefore have no function. & ö Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 28 Activates the setting mode for the programme speed. Adjust the speed using [+] and [–]. 6 [STROBE] Activates the setting mode for the Strobe speed. Adjust the speed using [+] and [–]. 7 [+] Increases the set value. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 29 10 [0 … 9] Numeric buttons for direct selection of a basic colour. 11 [R], [G], [B], [A], [W] Buttons to select the colour shade in dimmer mode. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
-
Page 30: Operating
ð The unit instantly applies the displayed value, you don't need to push a button for confirmation. To exit a menu item without making changes, press [MODE]. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR... - Page 31 Confirm the selection with [SET] and use [UP] or [DOWN] to select a value between ‘001’ and ‘512’ to set the desired DMX address. To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 32 Confirm the selection with [SET] and use [UP] or [DOWN] to select a DMX mode ( ‘6-ch’ , ‘8-ch’ or ‘11-ch’ . To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 33 A preprogrammed automatic show can only be activated when the unit is operating in stand- alone mode or as master in a master / slave combination. This setting is only relevant if the device is not controlled via DMX. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 34 Use [UP] or [DOWN] to select the desired programme ( ‘01’ … ‘17’ ) and confirm the selec‐ tion with [SET]. To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 35 ‘Strobe’ . Press [SET] and use [UP] or [DOWN] to set the flash frequency of the strobe effect in a range from ‘00’ … ‘99’ (slow…fast). Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 36 ‘Strobe’ . Press [SET] and use [UP] or [DOWN] to set the flash frequency of the strobe effect in a range from ‘00’ … ‘99’ (slow…fast). Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 37 Use [UP] or [DOWN] to select one of five memory locations for the user programme ( ‘01’ … ‘05’ ) and confirm the selection with [SET]. To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 38 Green from 0 to 255 ‘ Blue’ ‘000…255’ Blue from 0 to 255 ‘White’ ‘000…255’ White from 0 to 255 ‘Amber’ ‘000…255’ Amber from 0 to 255 Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 39 Use [UP] or [DOWN] to choose between ‘Yes’ (play selected user programme) and ‘No’ (do not play selected user programme). To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 40 Dimmer intensity amber from 0 to 255 ‘UV’ ‘000…255’ Dimmer intensity UV light from 0 to 255 To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 41 Description ‘linear’ Linear course ‘Square Law’ Exponential course ‘Inv Square Law’ Logarithmic course ‘S-Type’ S-curve shaped course To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 42 ‘Dimmer Speed’ and confirm the selection with [SET]. Use [UP] or [DOWN] to choose between ‘Fast’ and ‘Smooth’ (slow). To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 43 Use [UP] or [DOWN] to choose between ‘Normal’ (display unturned) and ‘Inverted’ (dis‐ play turned by 180°). To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 44 Frequency’ and confirm the selection with [SET]. Use [UP] or [DOWN] to choose between ‘12K’ , ‘6K’ , ‘3K’ or ‘1K’ . To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 45 Last DMX value is being held. ‘Dimmer’ Device switches to dimmer mode. ‘Program’ Device switches to auto mode. To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 46 Use [UP] or [DOWN] to choose between ‘On’ (sync DMX signal) and ‘Off’ (do not sync DMX signal). To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 47 Use [UP] or [DOWN] to choose between ‘On’ (display permanently on) and ‘Off’ (display turns off after a few seconds in case of inactivity). To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 48 ‘Factory’ and confirm the selection with [SET]. Use [UP] or [DOWN] to choose between ‘Yes’ (reset to factory defaults) and ‘No’ (cancel reset). To exit the menu item without making changes, press [MODE]. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 49 To reset the operating hours and the LED runtime, press and hold in the ‘Information’ menu item [SET] for 5 seconds and press [UP] or [DOWN] until the display shows ‘0088’ . Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
-
Page 50: Menu Overview
Inverted Green Blue Strobe White White Amber Amber Dmx Fail Off Strobe Hold Dimmer Fade Time Program Dmx Sync Off Wait Time Lock Off Factory Send Program Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR... -
Page 51: Functions In 6-Channel Dmx Mode
Intensity blue (0 % to 100 %) 0…255 0…255 Intensity white (0 % to 100 %) 0…255 Intensity amber (0 % to 100 %) 0…255 Intensity UV light (0 % to 100 %) Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR... -
Page 52: Functions In 8-Channel Dmx Mode
0…255 Intensity UV light (0 % to 100 %) 0…10 No function 11…255 Strobe effect (0 % to 100 %), increasing speed, invalid for user programmes 01…05 Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR... -
Page 53: Functions In 11-Channel Dmx Mode
No function 16…21 Red (255), green (000), blue (000), white (000), amber (000), UV (000) 22…27 Red (255), green (015), blue (000), white (000), amber (000), UV (000) Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR... - Page 54 88…93 Red (000), green (255), blue (025), white (000), amber (000), UV (000) 94…99 100…105 Red (000), green (255), blue (040), white (000), amber (000), UV (000) Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 55 166…171 Red (255), green (000), blue (255), white (000), amber (000), UV (000) 172…177 178…183 Red (255), green (000), blue (220), white (000), amber (000), UV (000) Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 56 Red (000), green (000), blue (100), white (255), amber (000), UV (000) Red (000), green (000), blue (050), white (255), amber (000), UV (000) 244…255 Programme selection 0…15 No function Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 57 60…70 Programme 06 71…81 Programme 07 82…92 Programme 08 93…103 Programme 09 104…114 Programme 10 115…125 Programme 11 Programme 12 126…136 Programme 13 137…147 148…158 Programme 14 Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 58 0…255 Programme running speed (Programme 02…Programme 17), Increasing speed 0…10 No function Strobe effect (0 % to 100 %), increasing speed, invalid for user programmes 01…05 11…255 Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
-
Page 59: Technical Specifications
Lockable input socket Power Twist TR1 IP65 DMX control XLR panel plug (IP65), 3-pin 200 mm Output connections Voltage supply further Lockable output socket devices Power Twist TR1 IP65 Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR... - Page 60 Dimensions (W × H × D) 246 mm × 300 mm × 200 mm Weight 3.5 kg Ambient conditions Temperature range 0 °C…40 °C relative humidity 20 %…80 % (non-condensing) Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 61 Colour mixture RGBWAUV LED type x-in-1 Floor housing Fanless Remote control Optionally available (item no. 354223) Wireless DMX Housing colour black (item no. 540667) white (item no. 540669) Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
-
Page 62: Plug And Connection Assignments
XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR... -
Page 63: Troubleshooting
Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR... - Page 64 DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
-
Page 65: Cleaning
Clean with a soft cloth using our lamp and lens cleaner (item no. 280122). Always dry the parts carefully. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR... -
Page 66: Protecting The Environment
Permanently built-in lithium batteries must be disposed of together with the device. Please inquire about an appropriate collection point. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR... - Page 67 Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 68 Notes Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 69 Notes Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 70 Notes Outdoor Stage PAR Hex TR1 Outdoor Stage PAR Hex TR1 WH LED PAR...
- Page 72 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
