I. GENERAL INFORMATION

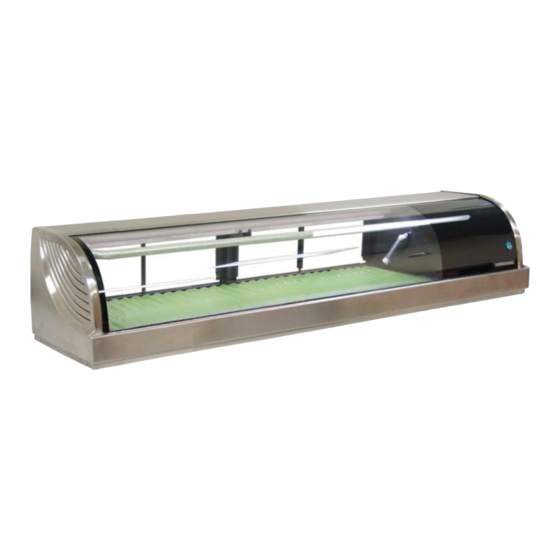

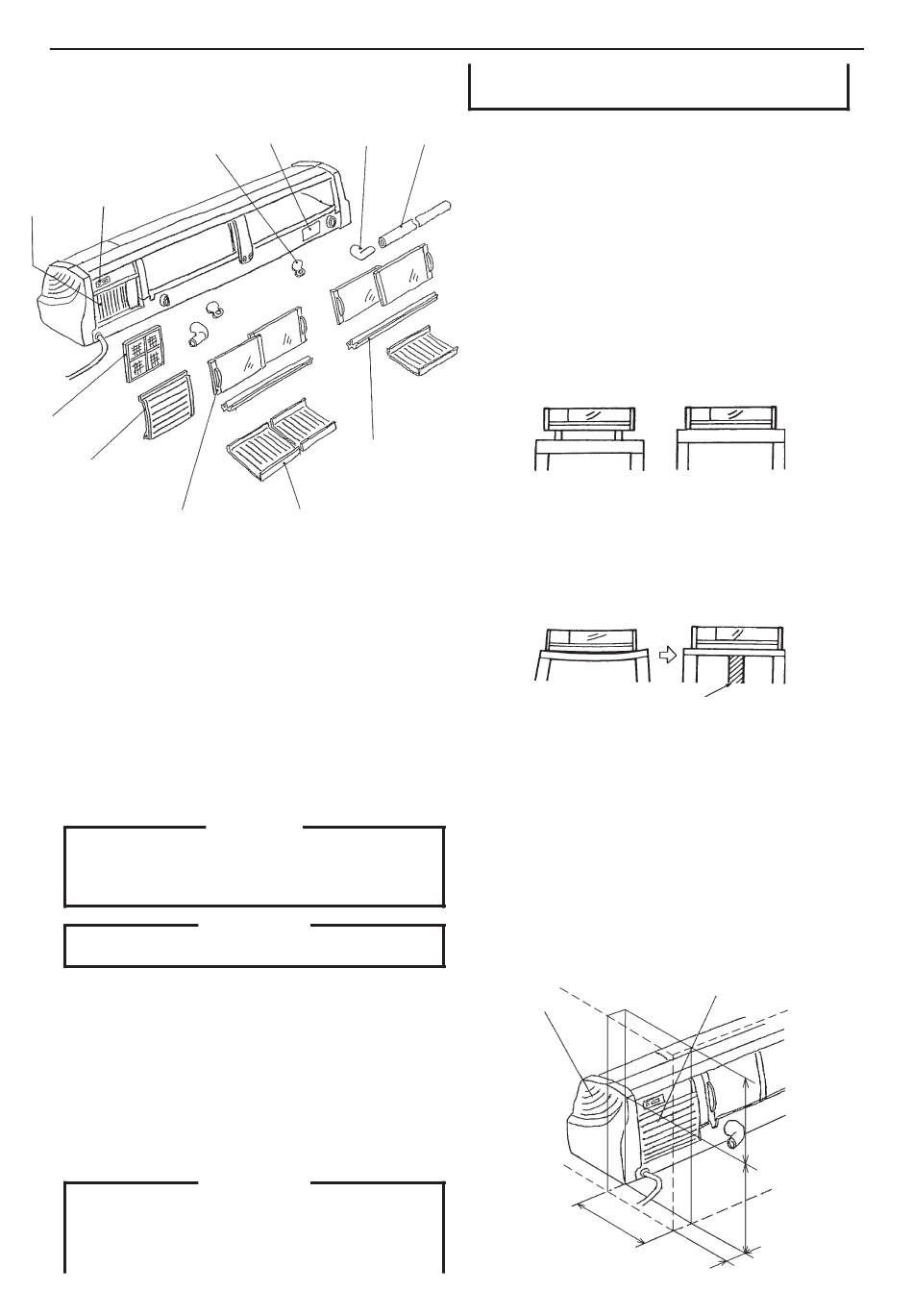

1. CONSTRUCTION
Circuit Breaker
Condenser
Air Filter
Louver
Sliding Glass Door
*Note: Always attach the two plugs to the drain holes located in
the showcase.
II. INSTALLATION AND OPERATING
INSTRUCTIONS
1. CHECKS BEFORE INSTALLATION
* Visually inspect the exterior of the shipping
container, and any severe damage noted should be
reported to the carrier.
Remove shipping carton, evaporator spacer,
tape(s) and packing. If packing material is left in
the showcase, it will not work properly.
Remove shipping tape holding the door.
* Remove the package containing accessories.
* See the nameplate on the rear of the showcase,
and check that your voltage supplied corresponds
with the voltage specified on the nameplate.
2. LOCATION
This showcase is not intended for outdoor
use. Normal operating ambient temperature
should be within 10°C to 30°C. Operation of
the showcase, for extended periods, outside
Nameplate
Joint
Plug*
Slider
Food Mount
Fig. 1
WARNING
IMPORTANT
IMPORTANT
of this normal temperature range may affect
cooling performance.
Hose
For best operating results:
* The showcase should not be located next to ovens,
grills or other high heat producing equipment.
* The location should provide a firm foundation for
the equipment across its entire bottom surface.
Any unevenness or the insertion of packing
resulting in only partial contact could result in the
case becoming damaged or deformed causing a
failure. The showcase should always be level from
side to side and back to front.
No good
If the foundation is not firm enough, it may warp
and cause some space between its center and the
showcase bottom. In this case, provide a support
to keep the foundation level.
No good
* Avoid a site where dripping is not allowed.
* Do not expose the showcase to direct sunlight
or higher temperatures to prevent damage to the
plastic housing.
* Allow at least 15 cm clearance between the
C o n d e n s e r a i r o u t l e t a n d t h e w a l l o r o t h e r
equipment for proper air circulation. The rear and
top of the showcase should have enough space (at
least 100 cm) for proper air circulation and smooth
operation.
Air Outlet
100cm
3
ENGLISH
Good
Fig. 2
Good
Support
Fig. 3
Air Inlet
100cm
Unit Height
15cm
Fig. 4
