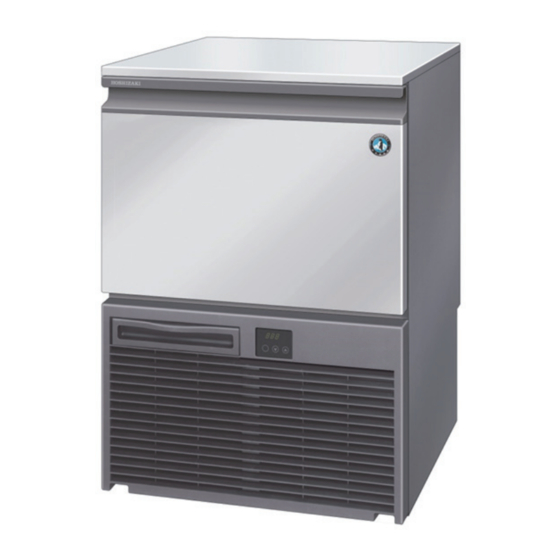

Self-contained crescent cuber
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

SELF-CONTAINED CRESCENT CUBER
CUBO CRESCENTE INDEPENDENTE
INSTRUCTION MANUAL
MANUAL DE INSTRUÇÕES
No. 15 Qingqiu Street, Suzhou Industrial Park, Suzhou 215126 China
KM-80C
KM-40C
KM-60C
KM-80C
KM-130C
KM-40C-W
KM-60C-W
KM-80C-W
KM-130C-W
L1F158101 (121622)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KM-130C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hoshizaki KM-130C

  • Page 1 KM-40C SELF-CONTAINED CRESCENT CUBER KM-60C CUBO CRESCENTE INDEPENDENTE KM-80C KM-130C KM-40C-W KM-60C-W INSTRUCTION MANUAL KM-80C-W KM-130C-W MANUAL DE INSTRUÇÕES KM-80C No. 15 Qingqiu Street, Suzhou Industrial Park, Suzhou 215126 China L1F158101 (121622)
  • Page 2: Table Of Contents

    ENGLISH IMPORTANT SAFETY INFORMATION ....................1 I. INSTALLATION INSTRUCTIONS .......................3 1. CONSTRUCTION ..........................3 2. ACCESSORIES ..........................3 3. UNPACKING ..........................3 4. LOCATION ............................4 5. INSTALLATION ..........................5 6. ELECTRICAL CONNECTIONS .....................5 7. WATER SUPPLY AND DRAIN CONNECTIONS ................5 II. OPERATING INSTRUCTIONS ......................6 1. START UP .............................6 2.
  • Page 3 ENGLISH IMPORTANT SAFETY INFORMATION Throughout this manual, notices appear to bring your attention to situations which could result in death, serious injury, or damage to the unit. Indicates a hazardous situation which, if not avoided, could result in death or WARNING serious injury.
  • Page 4 ENGLISH The use of any electrical appliance involves the observance of some fundamental rules. In particular: * Instances of high humidity and moisture increase the risk of electrical short circuits and potential electrical shocks. If in doubt, disconnect the icemaker. * Do not damage the power cord or pull it in order to disconnect the icemaker from the electrical supply network.
  • Page 5: Installation Instructions

    Refrigeration Circuit Louver Louver KM-40/60/80C(-W) KM-130C(-W) 2. ACCESSORIES KM-40C KM-40C-W KM-60C KM-60C-W KM-80C KM-80C-W KM-130C KM-130C-W Other than Other than Indonesia Indonesia Instruction Manual Scoop Indonesia Indonesia Instruction Manual Scoop Adjust Bolt (M12 x 35) (leveling) Pan Head Screw with...
  • Page 6: Location

    15 mm 15 cm Front Left Rear 40 cm Right 15 cm 15 cm 15 cm ICEMAKER ICEMAKER Front [KM-130C(-W)] Top View Side View Rear 15 mm 5 cm 5 cm 5 cm 15 mm Left Right 40 cm ICEMAKER...
  • Page 7: Installation

    * Icemaking water must be potable water. Where scaling can be caused by water quality, installation of an external filter or softener is recommended. Contact your local water treatment professional or Hoshizaki service agent. * Water supply pressure should be minimum 0.07 MPa (0.7 bar) and maximum 0.8 MPa (8 bar). If the pressure exceeds 0.8 MPa (8 bar), use a proper pressure reducing valve.
  • Page 8: Operating Instructions

    ENGLISH 1) Attach the free end of inlet hose to the water tap, noting washer is correctly positioned. Hand tighten sufficiently to provide leak free joint. It is a wise precaution to have a stop valve within easy reach. 2) The outlet hose can be cut to length as necessary to suit position of main drain.
  • Page 9: User Settings

    ENGLISH 2. USER SETTINGS The settings listed below are adjustable by the user. 1) Press and hold the reset button for 3 seconds to enter the user setting mode. The display shows one of the setting codes. 2) Use the up or down button until the display shows the desired setting code. Then, press the enter button. 3) Use the up or down button to adjust the setting.
  • Page 10: Preparing The Icemaker For Long Storage

    Wipe the exterior at least once per week with a clean, soft cloth. Use a damp cloth containing a neutral cleaner to wipe off grease or dirt. [b] Scoop and Storage Bin Handle Cleaning/Sanitisation (Daily) 1) Either mix 3 litres of water with 11 ml of 5.25% sodium hypochlorite solution in a suitable container, or the recommended Hoshizaki sanitiser as directed.
  • Page 11 5) Either mix 3 litres of water with 11 ml of 5.25% sodium hypochlorite solution in a Handle suitable container, or the recommended Hoshizaki sanitiser as directed. 6) Soak a clean sponge or cloth with the solution, and wipe the bin liner, bin door, slope and scoop holder.
  • Page 12: Before Calling For Service

    If the problem persists, check whether the error code “E” is indicated on the display or the dot at the center is on, and contact your local Hoshizaki service agent. If one of the following notice codes appears, follow the instructions below.
  • Page 13: Disposal

    4. WARRANTY Hoshizaki warrants to the original owner/user that all Hoshizaki branded products shall be free of defects in material and/or workmanship for the duration of the “warranty period”. The warranty shall be effective for two years from the date of installation.
  • Page 14: Specifications

    Model KM-40C (50Hz) KM-60C (50Hz) KM-80C (50Hz) KM-130C (50Hz) Type Air-cooled, crescent ice Air-cooled, crescent ice Air-cooled, crescent ice Air-cooled, crescent ice Power Supply 1 phase 220 - 240V 50Hz 1 phase 220 - 240V 50Hz 1 phase 220 - 240V 50Hz 1 phase 220 - 240V 50Hz...
  • Page 15 Model KM-40C (60Hz) KM-60C (60Hz) KM-80C (60Hz) KM-130C (60Hz) Type Air-cooled, crescent ice Air-cooled, crescent ice Air-cooled, crescent ice Air-cooled, crescent ice Power Supply 1 phase 220 - 230V 60Hz 1 phase 220 - 230V 60Hz 1 phase 220 - 230V 60Hz 1 phase 220 - 230V 60Hz...
  • Page 16: Português Informações De Segurança Importantes

    PORTUGUÊS INFORMAÇÕES DE SEGURANÇA IMPORTANTES Ao longo deste manual, há avisos para chamar a sua atenção para situações que podem resultar em morte, ferimentos graves ou danos à unidade. Indica uma situação perigosa que, se não for evitada, pode resultar em ADVERTÊNCIA morte ou ferimentos graves.
  • Page 17 PORTUGUÊS O uso de aparelhos elétricos envolve a observância de algumas regras fundamentais. Em particular: * Ocorrências de alta umidade aumentam o risco de curtos-circuitos e possíveis choques elétricos. Em caso de dúvida, desconecte a máquina de gelo. * Não danifique o cabo de alimentação nem o puxe para desconectar a máquina de gelo da rede elétrica.
  • Page 18: Instruções De Instalação

    Veneziana Circuito de Veneziana refrigeração KM-40/60/80C(-W) KM-130C(-W) 2. ACESSÓRIOS KM-40C KM-40C-W KM-60C KM-60C-W KM-130C KM-130C-W KM-80C KM-80C-W Manual de instruções Pá de gelo Manual de instruções Pá de gelo Perna Perna Parafuso de cabeça panela com arruela (M4 x 30) (fixação da...
  • Page 19: Posicionamento

    Direita 40 cm 15 cm Dianteira Traseira MÁQUINA DE 15 cm 15 cm MÁQUINA DE GELO GELO Dianteira [KM-130C(-W)] Vista superior Vista lateral Parte superior Traseira 15 mm 5 cm 5 cm 5 cm 15 mm Esquerda MÁQUINA DE Direita...
  • Page 20: Conexões Elétricas

    água. Entre em contato com seu profissional de tratamento de água local ou com um agente de serviço da Hoshizaki. * A pressão de fornecimento da água deve ser de, no mínimo, 0,07 MPa (0,7 bar) e, no máximo, 0,8 MPa (8 bar). Se a pressão exceder 0,8 MPa (8 bar), use uma válvula redutora de pressão adequada.
  • Page 21: Instruções De Operação

    PORTUGUÊS 2) A mangueira de saída pode ser cortada no comprimento necessário para se adequar à posição do dreno principal. Torneira de fornecimento de água Mangueira de entrada Mangueira de saída Mangueira de entrada II. INSTRUÇÕES DE OPERAÇÃO AVISO Todas as peças são ajustadas de fábrica. Ajustes inadequados podem resultar em falha. Se a unidade estiver desligada, espere pelo menos 3 minutos antes de reiniciar a máquina de gelo para evitar danos ao compressor.
  • Page 22: Inicialização

    PORTUGUÊS 1. INICIALIZAÇÃO Normalmente, o instalador colocará a máquina de gelo em operação para iniciar o processo automático de fabricação de gelo. Para garantir uma operação contínua, confirme se: * A torneira de fornecimento de água está aberta, * A máquina de gelo está conectada à fonte de alimentação e * O visor mostra “run”.
  • Page 23: Preparação Da Máquina De Gelo Para Armazenamento Longo

    PORTUGUÊS Código Item Descrição Padrão Redefinir as U.56 Redefina todas as configurações do usuário para o padrão. – configurações U.58 Desligamento forçado Desligue a unidade sob quaisquer condições. – U.59 Drenagem forçada Desligue e drene a unidade sob quaisquer condições. –...
  • Page 24 1) Misture 3 litros de água com 11 ml de solução de hipoclorito de sódio a 5,25% em um recipiente adequado ou o desinfetante Hoshizaki recomendado conforme as instruções. 2) Mergulhe a pá de gelo na solução por mais de 3 minutos. Enxágue bem e agite para remover o excesso de líquido.
  • Page 25 KM-60C: 2,5 litros KM-80C: 3 litros KM-130C: 3,5 litros 5) Enxágue o revestimento do compartimento com água limpa para remover a solução derramada no compartimento de armazenamento. Em seguida, feche a porta. 6) Pressione o botão Cleaning (Limpeza) (ou aguarde 15 minutos) para iniciar a limpeza química automatizada.
  • Page 26: Antes De Ligar Para O Serviço Técnico

    “período de garantia”. A garantia será válida por dois anos a partir da data de instalação. A responsabilidade da Hoshizaki sob os termos da garantia é limitada e deve excluir serviços de rotina, limpeza, manutenção essencial e/ou reparos ocasionados por uso incorreto e instalações que não estejam de acordo com as diretrizes da Hoshizaki.
  • Page 27: Especificações

    TEL: +60 3 8023 5823 FAX: +60 3 8024 1823 sales@hoshizaki.com.my ESPECIFICAÇÕES Modelo KM-40C (50 Hz) KM-60C (50 Hz) KM-80C (50 Hz) KM-130C (50 Hz) Tipo Resfriado a ar, gelo Resfriado a ar, gelo Resfriado a ar, gelo Resfriado a ar, gelo crescente crescente...
  • Page 28 PORTUGUÊS Modelo KM-40C-W (50 Hz) KM-60C-W (50 Hz) KM-80C-W (50 Hz) KM-130C-W (50 Hz) Tipo Resfriado a ar, Resfriado a ar, Resfriado a ar, Resfriado a ar, gelo crescente, gelo crescente, gelo crescente, gelo crescente, limpeza totalmente limpeza totalmente limpeza totalmente...
  • Page 29 PORTUGUÊS Modelo KM-40C-W (60 Hz) KM-60C-W (60 Hz) KM-80C-W (60 Hz) KM-130C-W (60 Hz) Tipo Resfriado a ar, Resfriado a ar, Resfriado a ar, Resfriado a ar, gelo crescente, gelo crescente, gelo crescente, gelo crescente, limpeza totalmente limpeza totalmente limpeza totalmente...
