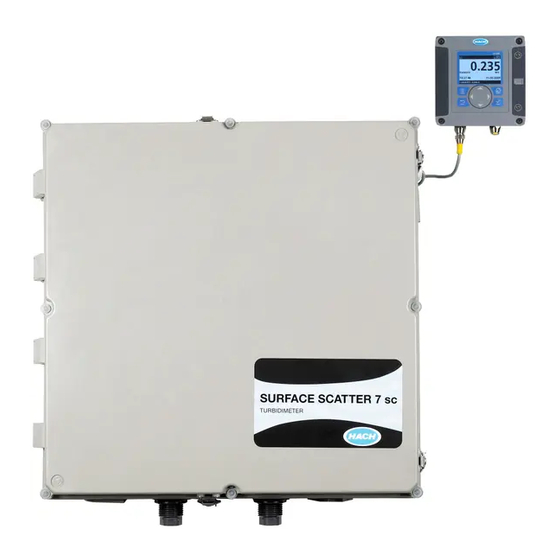

Hach SS7sc Quick Reference

SS7sc Controller Navigation
sc100 Controller Key Functions/Features
Key Function
Moves back one level in the menu structure.
Moves to the main menu from other menus. This key is not active in menus where a selection or
other input must be made.
Navigates through the menus, changes settings, and increments and decrements digits.
Moves to the Main Measurement screen from any other screen. This key is not active in menus
where a selection or other input must be made.
Accepts an input value, updates, or accepts displayed menu options.
Important Key Presses
•
•
•
Quick Reference
Press then the
HOME RIGHT
connected. Continue to press the
display options.
Press the and
UP DOWN
display to display the secondary measurement (temperature) and output information.
When in Menu mode, an arrow may appear on the right side of the display to indicate that
more menus are available. Press the
direction) to display additional menus
or key to display two readings when two sensors are
LEFT
or
RIGHT LEFT
keys to toggle the status bar at the bottom of the measurement
or
UP DOWN
DOC016.53.00769
key to toggle through the available
key (corresponding to the arrow
1
