Intercoax ECP-08R Quick Start Manual page 2

1. Plug the Power on ECP-08R and check if the Power LEDs are properly lit.
2. Connect the Switch or NVR to the Uplink of the ECP-08R with a UTP cable (LAN, Cat 5e. or superior) Check if the LED of the ECP-08R is turned on properly.
3. Connect the ECP-08R to the ECP-01T with a coaxial cable (3C, RG58 or superior).
4. Connect the ECP-01T to the IP camera with a UTP cable (LAN, Car 5e. or superior). Check if the LED of the ECP-01T is turned on properly.
5. Connect the PoE IP camera to the Ethernet port with a UTP cable (LAN, Cat 5e. or superior). Check if the Ethernet LED is turned on properly.
NVR / Switch

DO NOT USE Non-PoE camera on Tx.
PoE IP Camera Only
PoE Camera


PoE Camera
Specification
Model
8 x 75Ω BNC (Female) - Ethernet over Coax
Coax
(Coaxia S series)
Ethernet 8 x RJ-45 – 10/100/1000 Base-T with Autodetect
Interface
Downlink MDIX (IEEE802.3af/at)
2 x RJ-45 – 10/100/1000 Base-T with Autodetect
Ethernet Uplink
MDIX
Coax Max. 100Mbps between Intercoax devices
Transmission
Rate
Ethernet Max. 1Gbps Full Duplex
Coax up to 400 m (RG-59 or better)
Transmission
Up to 100m
Distance
Ethernet
Up to 200m with HPS-01(2 Port Hybrid Switch)
Ethernet
8 x RJ45 Data Link (Green)
(Downlink)
LED Ethernet
2 x RJ45 Data Link (Green/Orange)
(Uplink)
Indication
PoE Output 8 x PoE Output (Orange)
PWR Input 2 x Power Input (Blue)
Power Input 1 x Power input [DC-JACK] DC48V/3A
PoC Coaxia PoE, PoE+, Extra PoE Max 60W over Coax.
Power
IEEE802.3af(PoE),
Output
PoE
IEEE802.3at (PoE+ / up to 25.5W)
Dimension 440(L) x 320(W) x 45(H)mm
Mechanical
Weight 4480g
Operating Temp -10 ~ 60°C
Storage Temp -30 ~ 80°C
Environment
Relative
10% ~ 90%
Humidity
Certification FCC, CE, KC, RoHS
Compliance Surge
IEC 61000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us)
Protection
ECP-01T, ECP-101T,
Optional Accessories
Coaxia S Series Cameras & Etc.
Ethernet cable
(Cat5e or better)
UTP cable
ECP-01T
UTP cable
ECP-08R

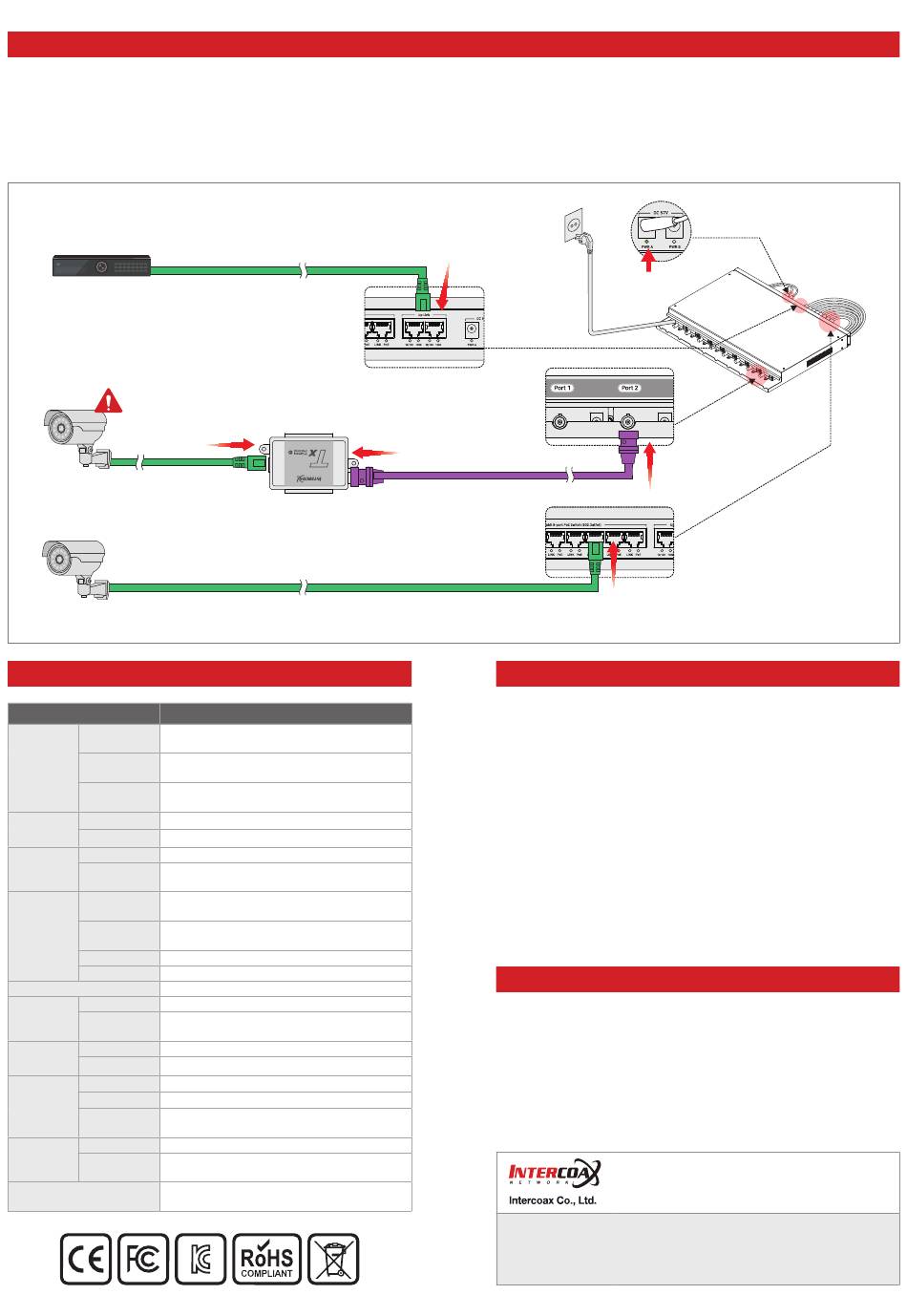

Installation Guide

Power Cable

Coaxial cable
(RG58 or better)

DO NOT USE Non-PoE camera on with an ECP-01T.
(PoE IP Camera Only)
 Please install devices following the installation guide.
 Do not touch the device and cable with wet hands.
 Keep away from moisture and shock.
 Do not install near any heat sources such as radiators, heat
registers, stoves or other apparatus that produce heat.
 Indoor use only. (Use waterproof junction box when it is used in
outdoor)
 Do not use for other purposes.
 Do not disassemble or modify this device.
 Do not put any sticker or paint on it.
 If this device is defective or malfunctioning, please unplug the power
source immediately and contact dealer or service center.
 Please use the rated power supply for the product.
 Connect DC power to this device first and then to AC outlet.
 This device has passed the quality control and product inspection.
 Please install and use according to the installation guide.
 The warranty period for this product is 24 months from the date of
purchase.
 If this device is defective or malfunctioning, please unplug the power
adapter immediately and contact dealer or service center.
 Any damages or breakage from user's abuse, accident, modification
or natural disasters will not be covered manufacturer's warranty.
This device complies with part 15 of the fcc rules. Operation is subject to the
following two conditions :
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received including interference
that may cause undesired operation
Check LEDs
ECP-08R
Caution
Warranty
Please visit below website for more detailed information.
Web: http://www.intercoax.com Tel: +82. 31. 365. 3133~4
E-mail: info@intercoax.com Fax: +82. 31. 365. 3135
© Intercoax Co., Ltd.
