Free-Space Plasma Light Source
Setup
Chapter 4
4.1.

Part List

The package contains the following items:
One Light Source
One Flash Drive with Software and the Operation Manual
One USB2.0 A-B Cable, 2 m Long
One Region-Specific Power Cord
One 3 mm Hex Key
One 2 mm Hex Key
4.2.

Operation Elements

F1. External Control Button with LED
F2. LCD Screen
F3. Shutter Control Button
F4. Light Intensity Adjustment Knob
F5. Light Output Port
F6. 4-40 Tapped Holes (60 mm Cage System)
F7. Shutter State LED
F8. Light Source State Indicator LED
F9. Power Switch
Rev C, June 12, 2019

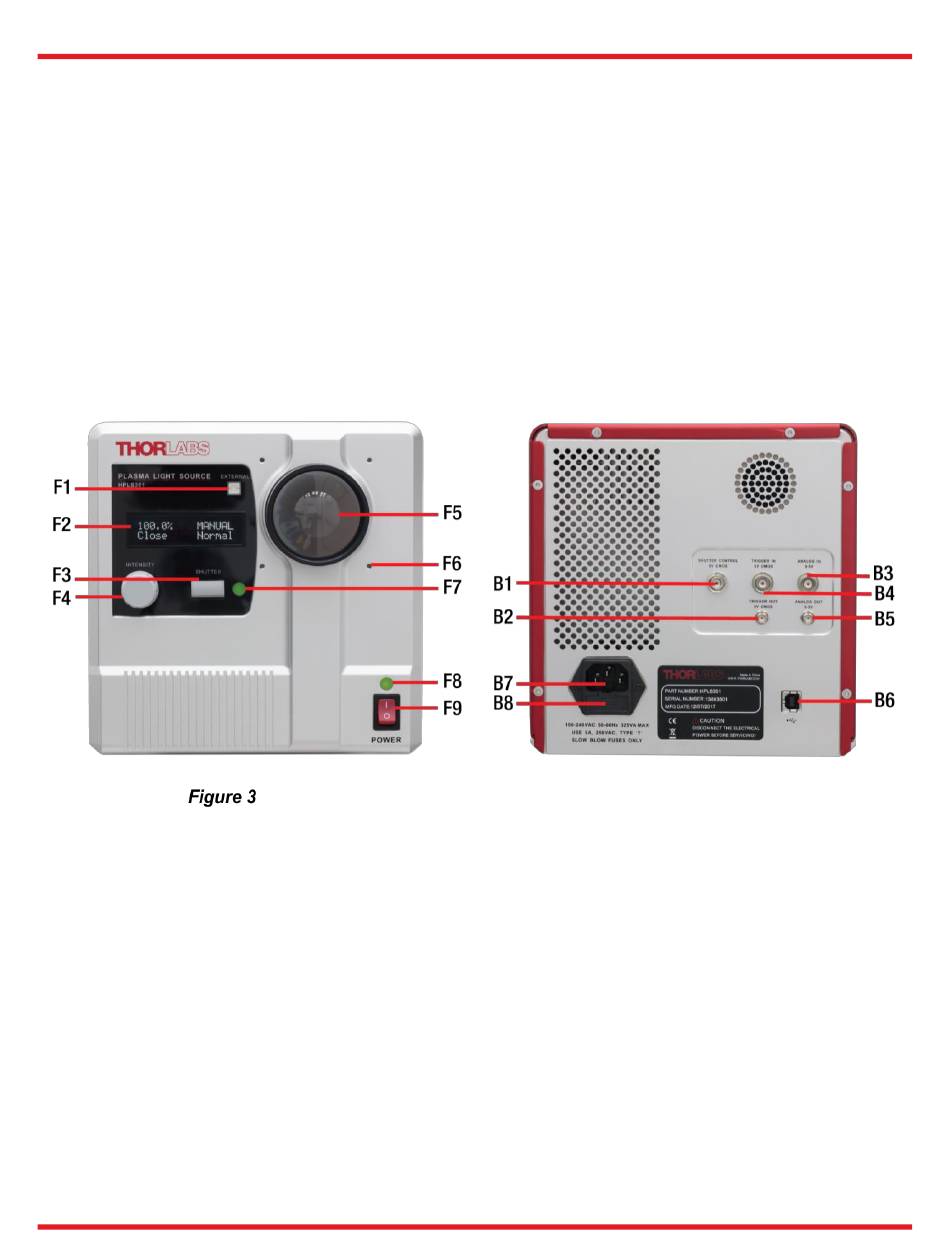

Front and Back Panel of the HPLS301(/M) Light Source
B1. BNC Port for External Shutter Control: 5 V CMOS
B2. SMA Port for Trigger OUT: 5 V CMOS
B3. BNC Port for Analog IN: 0 to 5 V
B4. BNC Port for Trigger IN: 5 V CMOS
B5. SMA Port for Analog OUT: 0 to 5 V
B6. USB Port
B7. AC Power Inlet
B8. Fuse Drawer
Chapter 4: Setup
Page 5
