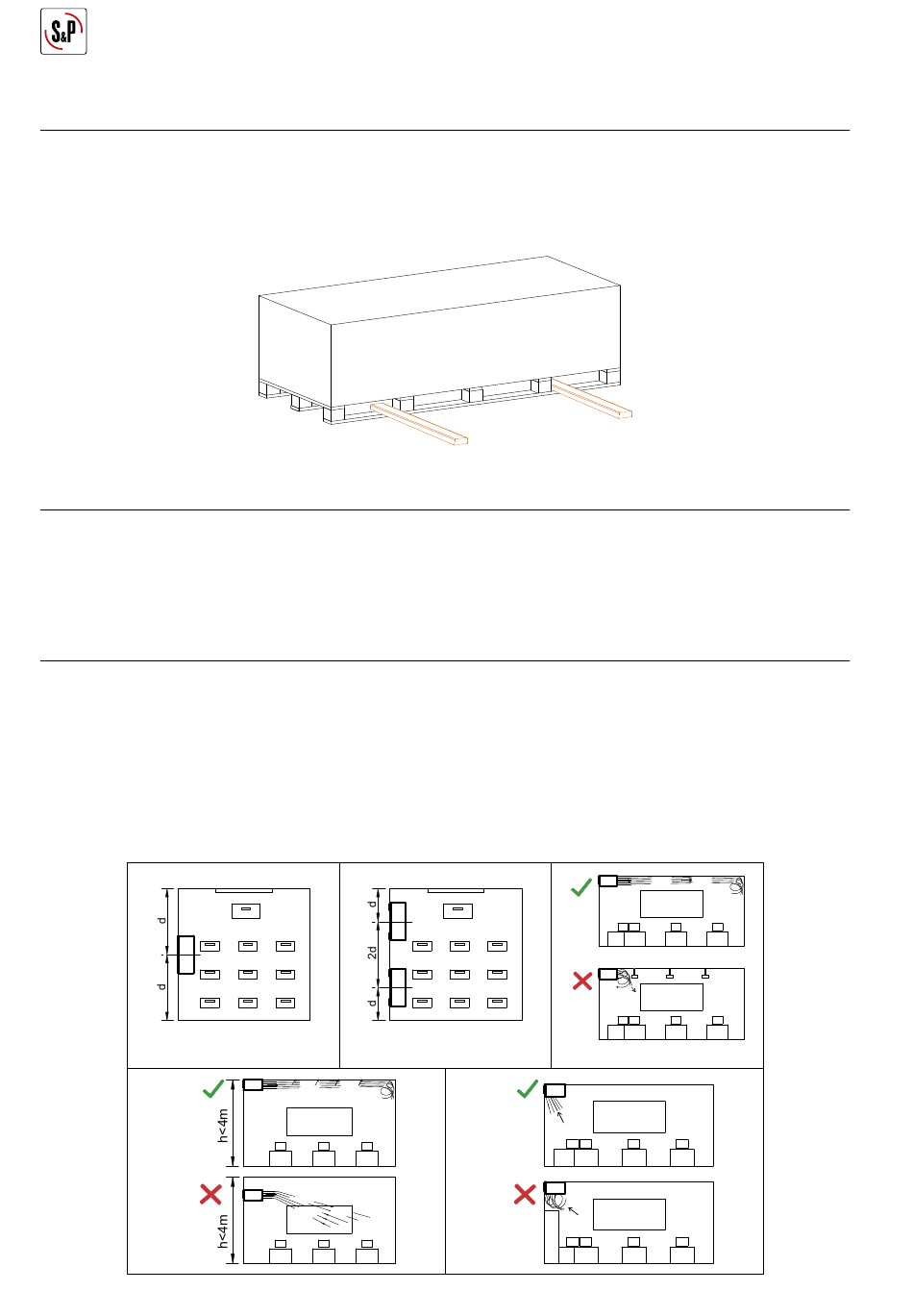

5. HANDLING

The PURECLASS CL units are delivered on a pallet and protected by a cardboard box. This packaging is not suitable for
being exposed to the elements. Storage of the product must be done indoors.
The handling of the equipment must be carried out using forklifts suitable for the shape and weight of the equipment.
In all cases, the lifting must be done from the device's base. The centre of gravity is located at the centre of the unit. The
device must be carefully manipulated only in the horizontal position.

6. RECEPTION

Inside the PURECLASS CL packaging you will find the following material:
• 1 heat recovery unit
• 2 side panels
• 1 Installation manual

7. LOCATION

When choosing the location, take into account the following recommendations:
• Locate the unit as centered as possible in the occupied area (Fig. 1). In the case of more than one unit in a single area,
distribute the units so that the area is covered evenly (Fig. 2)
• Do not obstruct the diffusion of supply air, avoiding obstacles in the airflow, ex: beams, luminaires, projectors, etc.
(Fig. 3).
• In spaces with heights of less than 4 meters, locate the equipment as close to the ceiling as possible to take advantage
of the coanda effect in air diffusion (Fig. 4).
• Facilitate air intake to the unit, leaving a minimum of 50 cm. between the suction grille and any object or wall (Fig. 5).
• To avoid discomfort, do not place work/study places under the unit
Fig.1
Fig.4
6
Fig.2
Fig.5
Fig.3
