PURECLASS CL
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PURECLASS CL and is the answer not in the manual?

Questions and answers

Related Manuals for S&P PURECLASS CL

Summary of Contents for S&P PURECLASS CL

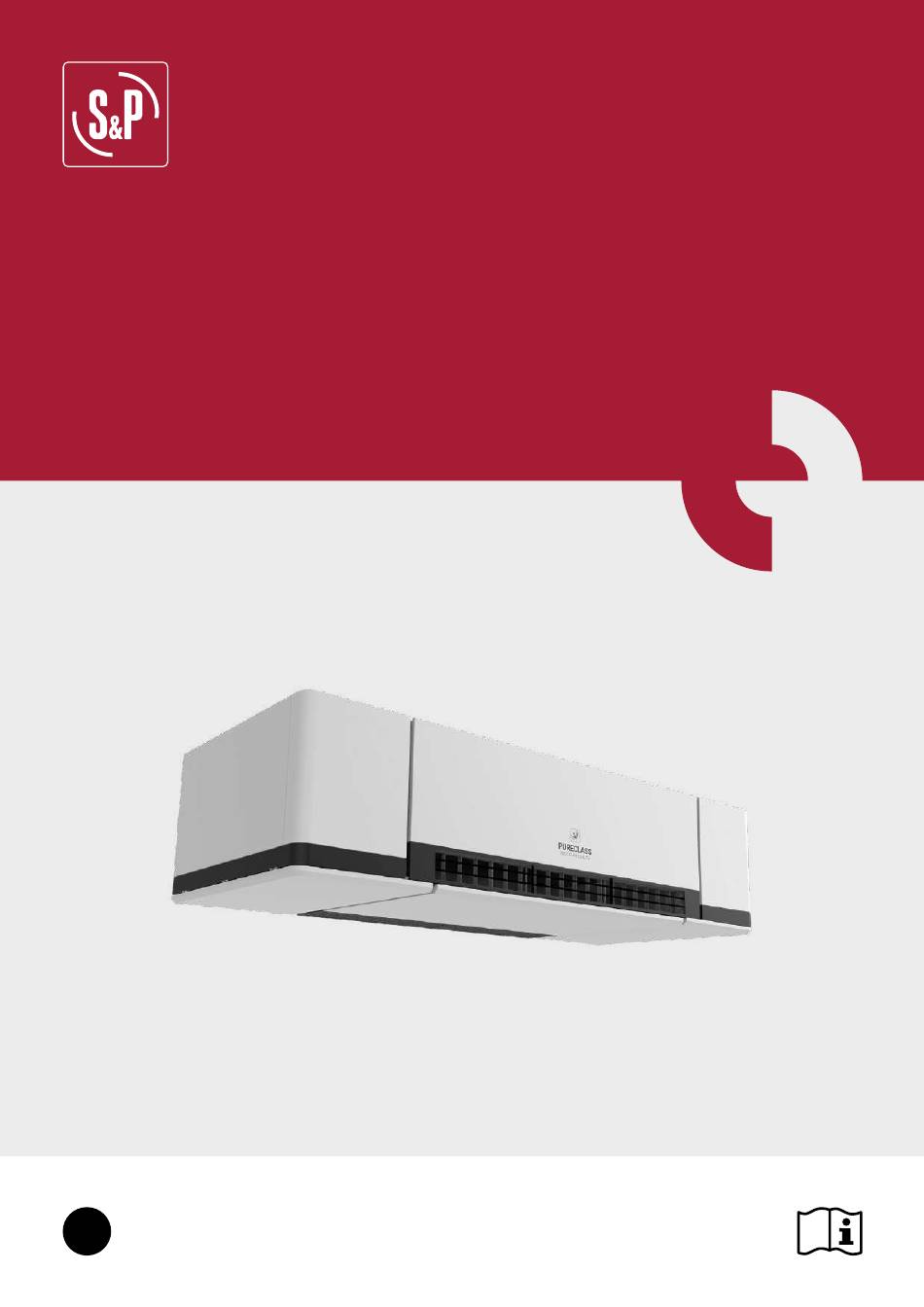

  • Page 1 PURECLASS CL...

  • Page 3: Table Of Contents

    8.6.2. Connection with air duct on the top ........................14 8.6.3. Condensate drainage ..............................15 8.6.3.1. PURECLASS CL without condensation pump ....................15 8.6.3.2. PURECLASS CL with condensation pump (Version CP) ................16 8.6.4. Electrical connection ..............................17 8.6.4.1. Access to the electric board (Just in case of accessories wiring) .............17 8.6.4.2.
  • Page 4 16. BUILDING MANAGEMENT SYSTEM (BMS) connection ......................46 17. INSPECTION, MAINTENANCE AND CLEANING ........................51 17.1. Filters replacement .................................51 17.2. Heat exchanger ................................52 17.3. Fans ....................................52 17.4. Condensation drainpipe ..............................52 17.5. List of spare parts ................................53 18. OPERATION ANOMALIES .................................54 18.1. General anomalies ................................54 18.2.

  • Page 5: Introduction

    1. INTRODUCTION Thank you for purchasing this appliance. It has been manufactured in full compliance with applicable safety regulations and EU standards. Please read this instruction book carefully, as it contains important information for your safety during the installation, use and maintenance of this product. Keep it at hand for future reference.

  • Page 6: Handling

    5. HANDLING The PURECLASS CL units are delivered on a pallet and protected by a cardboard box. This packaging is not suitable for being exposed to the elements. Storage of the product must be done indoors. The handling of the equipment must be carried out using forklifts suitable for the shape and weight of the equipment.

  • Page 7: Installation

    8. INSTALLATION 8.1. Introduction All models are designed to be installed hanging from the ceiling. When installing the unit, is necessary to distribute the unit weigh between the 4 supports existing in the units. Using studded rods (Ø 8 mm), it can be secured to the ceiling and levelled: Check the distances between supports in the diagrams of the section: “Dimensions and free dimensions for mainte- nance”.

  • Page 8: Equipment Lift

    8.2.1. Equipment lift To lift the equipment it will be necessary to use a lifting table or elevator. To avoid damaging the external parts of the unit, it is necessary to handle the equipment with great care, avoiding not leaning on the outer skin of the equipment. To lift the unit follow the procedure detailed in the next steps: Step 1: Carefully remove the cardboard box that protects the equipment.
  • Page 9 Using a lift, raise the equipment until the outside air couplings are positioned in the holes in the wall. Fix the equipment to the ceiling using the threaded rods (a). To prevent the transmission of vibrations from the unit to the wall and ceiling, it is recommended to use accessory 5130064900 KIT AM HRU, which is designed to be fitted inside the unit bracket (b).
  • Page 10 Make the electrical wiring: (A) Electric power connection to the connector located on the side internal panel. In case of accessories to be wired (External touch display ETD and/or CO sensor), pass the cables through the cable gland (B) to the electrical panel. Finally place the side panels (C). To assembly the side panels insert one end of the panel into the two existing slots in the equipment (A), and once positioned, secure the assembly with 2 or 3 screws (B) depending on the side panel...

  • Page 11: Dimensions And Free Space For Maintenance

    8.3. DIMENSIONS AND FREE SPACE FOR MAINTENANCE 8.3.1. Dimensions a) PURECLASS 800 CL and PURECLASS 800 CL DI View from the rear View from the top View from the rightside (A) OUTDOOR / FRESH AIR SUPPLY AIR EXTRACT AIR EXHAUST AIR DRAIN OUTLET...

  • Page 12: Mounting Process Of An Additional Supply Filter

    b) PURECLASS 800 CL DC (With integrated water coil) View from the rear View from the top View from the right side (A) OUTDOOR / FRESH AIR SUPPLY AIR EXTRACT AIR EXHAUST AIR WATER INLET " WATER OUTLET " DRAIN OUTLET 8.4.

  • Page 13: Electric Data

    8.6. CONNECTIONS 8.6.1. Connection with air duct on the back PURECLASS CL units are decentralized HRU that do not require air ducting inside the building. However, it is necessary to exhaust and take air outside the building. There are accessories to facilitate installation in case of air intake/exhaust directly through the façade:...

  • Page 14: Connection With Air Duct On The Top

    MPM 315 L: 280 - 430 Wall telescopic sleeve. 8.6.2. Connection with air duct on the top The PB-V1 PURECLASS 800 CL plenum accessory allows directing the outside air intake and the stale air dis- charge outlet (by default on the back of the equipment) towards the top, allowing the connection to the building's ducts, when these are located on the ceiling.

  • Page 15: Condensate Drainage

    Once done, place the lower cover (C). 8.6.3. Condensate drainage Concerning the drainage system, PURECLASS CL units are available in two different versions: a) With condensate fall by gravity (without condensation pump) b) Version CP: With condensation drain pump integrated (factory mounted).

  • Page 16: Pureclass Cl With Condensation Pump (Version Cp)

    The siphon should always be full of water. Check its level periodically, refilling it if necessary. An empty siphon can cause the condensate tray to overflow and water leak through the equipment casing. 8.6.3.2. PURECLASS CL with condensation pump (Version CP) The condensate collection system consists of a tray equipped with a condensate pump that conducts the conden- sate to the edge of the equipment (bottom part in contact with the wall of the room.

  • Page 17: Electrical Connection

    - Differential protection with 300mA sensitivity - Manually operated safety device (main switch or cut-off section) In the recovery unit PURECLASS CL range, all components integrated in the unit, are supplied wired to the electric SLIM - R board (fans, preheater, postheater, filters pressure switches, temperature probes and by-pass damper).

  • Page 18: External Touch Display (Etd) Control Connection

    (supplied as an accessory). This is so since a single ETD can control up to 5 PURECLASS CL units. The remote control is supplied with a 10 meter length cable, which can be replaced by a cable up to 30 meters (re- commended control cable type.

  • Page 19: Connecting Electrical Accessories

    8.6.5. Connecting electrical accessories The control included in the PURECLASS CL makes it possible to work on fixed predefined flow rates, as well as assign these flow rates to different time slots. To be able to work with variable airflow rates, it is necessary to add accessories: To access the electric board see chapter "8.6.4.1.

  • Page 20: Components Diagrams

    9. COMPONENTS DIAGRAMS PURECLASS 800 CL (without heaters) Supply fan Extract fan Heat exchanger Drain tray Condensation pump (depending version) Supply air filter Supply air prefilter Extract air filter Bypass damper with actuator Backdraft damper (spring) Supply air damper with actuator Extract air grid Supply air diffuser Exhaust air outlet coupling...
  • Page 21 PURECLASS 800 CL DC (with hot water post-heater) Supply fan Extract fan Heat exchanger Water post-heater Drain tray Condensation pump (depending version) Supply air filter Supply air prefilter Extract air filter Bypass damper with actuator Backdraft damper (spring) Supply air damper with actuator Extract air grid Supply air diffuser Exhaust air outlet coupling...
  • Page 22 PURECLASS 800 CL PH DI (with electric pre-heater and post-heater) Supply fan Extract fan Heat exchanger Electric pre-heater Electric post-heater Drain tray Condensation pump (depending version) Supply air filter Supply air prefilter Extract air filter Bypass damper with actuator Backdraft damper (spring) Supply air damper with actuator Extract air grid Supply air diffuser...

  • Page 23: Control Advanced Operation

    10.1. DESCRIPTION PURECLASS CL units are equipped with the ADVANCED controller, a Plug & Play controller, factory mounted and wired that allows the management and supervision of the main components in the unit, as well as the adaptation* of the unit operation to the requirements of each application.
  • Page 24 11ºC 20ºC Active alarms: 1 Active alarms: 1 15:17 02.01.2020 Pause Pause Wednesday Friday Comf. t=20ºC 17:13 12ºC 12ºC 30ºC 20ºC 02.01.2020 11ºC 20ºC Active alarms: 1 Active alarms: 1 Information displayed in the “Data list” view: Supply fan speed Extract fan speed Current date and time Pause...

  • Page 25: Access Levels

    10.3.2. Access levels There are 3 levels of access: • User: Access to the parameters that a user may need. It allows making basic adjustments such as changing the fan speed or the temperature set point, as well as selecting the unit’s operating mode (Use of time program- ming, remote stop the unit or possibly forcing a specific speed).

  • Page 26: Set Temperature Setting

    By pressing the calendar icon in the bottom part of the display, it is possible to access the time schedule configu- ration (See specific chapter TIME SCHEDULE): Change setpoint temperature Friday 17:13 30ºC 20ºC 02.01.2020 Friday 17:13 30ºC 20ºC 02.01.2020 Active alarms: 1 Select the working mode Active alarms: 1...
  • Page 27 From this menu it is possible to read / configure the following information: Main menu 15:17 02.01.2020 Main menu 15:17 02.01.2020 Informations Informations Submenu Function Information (only read) of the following functional variables Parameter Description Temperatures Air temperatures Information Fans control Fans state Filters Filters state...

  • Page 28: Information Menu

    10.3.5. Information menu Through this menu it is possible to have access to a large number of functional parameters of the equipment that allows to know the functional situation of the equipment (Temperatures, status of the inputs and outputs of the controller, operating hours, etc.) All this information is read-only, it is not possible to modify any of the settings.

  • Page 29: Unit Configuration

    10.4. UNIT CONFIGURATION Access to the General Settings menu parameters: General settings 15:17 02.01.2020 Brightness Brightness Increase brightness Decrease brightness Confirm and exit Exit Button pressing sound Back to main screen Screen brightness Information about the function 10.4.1. Change the idiom Language Language From factory the controller is configured in English language.

  • Page 30: Time Schedule

    Button pressing sound Button sound Button pressing sound Button sound Button pressing sound Button sound Turned OFF Turned ON Turned OFF Turned ON Turned OFF Turned ON Friday Modify or cancel the sound volume when an alarm is activated: 17:13 30ºC 20ºC 02.01.2020...
  • Page 31 And from the main menu icon: Time Schedule 15:17 02.01.2020 Time 1 Time 2 Time 3 Time 4 Time 5 Number of program Day of the week Monday Increase / Decrease the value of the selected box Stop: 19 Start: 07 : 00 : 00 Period start hour Mode:...

  • Page 32: Unit Configuration - Installer Parameters

    Example of time programming: • Monday to Thursday: From 8:00 to 13:00 and from 15:00 to 19:00 in AUTO With high speed sweep from 13:00 to 15:00 • Friday: From 8:00 to 16:00 in AUTO Monday Tuerday Wednesday Monday Thursday Stop 13 : 00 Friday Start 08 : 00...
  • Page 33 Content of the functions and parameters accessible from the Installer menu: IMPORTANT: Most of the parameters contained in this menu should not be modified by the installer or user. Its configuration has been made at the factory and its modification could lead to a malfunction of the unit. Limit yourself to setting only those parameters related to the equipment’s working mode.

  • Page 34: Fans Working Modes

    10.4.6. Fans working modes The unit fans can operate according to 2 operating modes: • VAV: Variable airflow. The speed of the fans can be defined manually or in automatic mode depending on an external sensor supplied as accessory (Air quality, humidity or similar). •...
  • Page 35 AHU working mode VAV configuration Speed 1 VAV manual Follow the procedure below for the 3 preset speeds/airflows: Work mode selection VAV Manual Speed 1 SAF control 100% AHU working mode VAV configuration Speed 1 VAV manual VAV configuration VAV Auto Speed 2 EAF control 100%...
  • Page 36 The settings by default are optimized for combination with a CO sensor model AIRSENS CO2 with the following settings: Configuration by default - Low speed 4V = 400 m³/h up to 450 ppm of CO - High speed 8V = 800 m³/h from 850 ppm of CO - Proportional variable airflow from 400 m³/h to 800 m³/h when CO is between 450 and 850 ppm.

  • Page 37: Constant Flow Operation (Cav)

    - Airflow 3: 400 m³/h 10.4.7. Filter supervision PURECLASS CL heat recovery units are supplied with pressure switches mounted on both filters (supply and extraction). When the differential pressure value measured by the pressure switches exceeds 150 Pa an alarm is produced.

  • Page 38: Functions Associated To Digital Inputs (Boost, Remote On/Off, Fire Alarm)

    The following table shows the availability of digital inputs depending on the y de baja de tensión así como las normas de instalación y reglamento de seguridad en vigor. PURECLASS CL version: Nunca modificar el cableado interno del aparato. Seguir los planos de instalación y el esquema de conexión suministrado.

  • Page 39: Boost Function

    To reconfigure the functionality associated to a digital input follow the procedure: Example showing how to associate "Remote ON/OFF" function to Digital input DIN1: Digital inputs configuration Producer menu Input / Output configuration Current configuration DIN 1 Boost Input / Output configuration Digital inputs configuration DIN 2 External AHU OFF...

  • Page 40: Remote Stop-Start

    11.2. REMOTE STOP-START It is possible to start-stop the unit by means of an external digital contact (see electric diagrams). The contact closure between the digital input, will produce the unit stop. DIN1 to DIN3 has to be previously configured. When the equipment is stopped remotely the control hand terminal displays an alarm message, warning that it is possible that the unit will be start up from remote suddenly.
  • Page 41 Step 1. Wiring Make the Modbus communication wiring between the units in the net and the remote terminal (ETD) Yellow (VCC) Green (D+) Brown (D-) White (GND) PANEL PANEL PANEL PANEL PANEL 11ºC 20ºC Active alarms: 1 REMOTE TERMINAL (ETD) CONTR.
  • Page 42 The procedure to get the “factory numbers” could be performed by direct connection between the ETD and each contro- ller, before the units are integrated in the communication net. Once the “Factory numbers” of all controllers have been noted and the wiring between remote controller and controllers is finished (See wiring diagrams at the end of this manual), it is moment to proceed with the configuration of the whole system.
  • Page 43 Enter then the number of controllers the ETD will manage (Maximum 5 units): Additional controllers Number of controllers Increase number Decrease number Number of controllers Additional controllers Confirm and exit Controller address settings Exit Number of controllers Back to main screen Information about the function Step 4.
  • Page 44 Carry out the addressing procedure: 1 Controller address settings Addressing procedure Controller 1 factory number 10000000001 Controller 1 name Controller 2 factory number 10000000002 Controller 2 name Addressing procedure The time between powering up all controllers and the addressing procedure should be minimized (avoid too much time elapses between all equipment being under voltage and the activation of the procedure).

  • Page 45: Update The Controller

    14. UPDATE THE CONTROLLER In some cases it may be necessary to update the version of the ADVANCED control software (Development of new func- tionalities, improvements, new languages ...). The controller has separate softwares, for the controller and for the hand terminal.

  • Page 46: Controller Reconfiguration

    15. CONTROLLER RECONFIGURATION IMPORTANT After load a new software version, it is necessary to reconfigure the unit, as the factory settings are deleted. Necessary reconfiguration: • Language • Time schedule • Fan working mode • Pre-heater configuration (if exists) • Post-heater configuration (if exists) •...
  • Page 47 Modbus memory map Modbus Register description Value Register Variable Notes address options type Min. Max. Def. ecoVENT program version 0xFFFF Format: SXXX.YYY XXX – older byte, YYY – younger byte Factory number – chars 1 12336 23130 ASCII and 2 Factory number –...
  • Page 48 Modbus Register description Value Register Variable Notes address options type Min. Max. Def. Exhaust fan stop delay UINT8 Unit: min. Exhaust fan set point during Dyn.* Dyn.* UINT8 Unit: % drying Relay outputs state (both: 0x01 – OUT1 active; voltage and non-voltage) 0x02 –...
  • Page 49 Modbus Register description Value Register Variable Notes address options type Min. Max. Def. Minimum voltage to start 10.0 float Parameter resolution: 0.1; to modify linear characteristic control by the parameter please send: requested in AUTO-VAV mode value x 10 Maximum voltage end linear 10.0 float Parameter resolution: 0.1;...
  • Page 50 Modbus Register description Value Register Variable Notes address options type Min. Max. Def. Enabling water heater UINT8 0x00 - procedure disabled (no use of prevention by dedicated T6 sensor) and no fans at water temperature probe heater protection 0x01 - procedure enabled (use of T6 sensor) and no fans at water heater protection 0x02 - procedure disabled (no use of...

  • Page 51: Inspection, Maintenance And Cleaning

    17. INSPECTION, MAINTENANCE AND CLEANING 17.1. Filters replacement Before changing filters, disconnect the power from the equipment. Extract air filter Access to extract filter is done by open the extraction grill panel (hinged) located on the underside of the unit. To replace the filter, follow the following sequence: Fig.1 Fig.2...

  • Page 52: Heat Exchanger

    References of filters included in the unit Side Filter Type Dimensions Length Width Frame ISO-16890 EN-779 (mm) (mm) (mm) AFR PURECLASS 800 CL G4-SUP ISO Coarse 60% Supply air AFR PURECLASS 800 CL F7-SUP ePM1 50% Extract air AFR PURECLASS 800 CL M5-EXT ePM10 50% 1104* * The extraction filter is divided into two half-length filters.

  • Page 53: List Of Spare Parts

    17.5. LIST OF SPARE PARTS Type S&P code Electronics External touch display (ETD) 5800089000 ETD PURECLASS CL Controller R153190111 CONTROLADOR ADVANCED Air temperature probe R153190013 TEMPERATURE SENSOR (800 mm) Coil frost protection temperatu- R153190014 TEMPERATURE SENSOR (1650 mm) re probe...

  • Page 54: Operation Anomalies

    18. OPERATION ANOMALIES 18.1. GENERAL ANOMALIES Anomaly Cause Solution Difficult to start. Reduced power supply voltage. Check motor specification plate. Insufficient static torque of motor. Check the motor supply voltage and the control input signal. Default settings Restore default settings? Change the motor is necessary.
  • Page 55 Alarm messages and possible causes: Alarm message Meaning Correction No communication with The comunication between controller and Check wire and connections controller remote terminal is lost Supply air temperature probe The controller is not receiving information from Check the wiring / Replace the error supply air temperature probe damaged probe...

  • Page 56: Wiring Diagrams

    19. WIRING DIAGRAMS 19.1. PURECLASS 800 CL. Standard version without preheater nor postheater...

  • Page 57: Pureclass 800 Cl Di. Version With Integrated Electric Postheater

    19.2. PURECLASS 800 CL DI. Version with integrated electric postheater I>...
  • Page 58 Post-heater (3 kW) power regulation POSTHEATER REGULATOR Electric heater TP RA TP RM Heater supply voltage 230V Kpos F2 (6,3 A) To DIN3 Control input Electric battery overheat 0-10 V From AOUT3 Regulator From X5 supply voltage Terminal Block 24 Vac...

  • Page 59: Pureclass 800 Cl Dc. Version With Integrated Water Postheater

    19.3. PURECLASS 800 CL DC. Version with integrated water postheater...

  • Page 60: Pureclass 800 Cl Ph. Version With Integrated Electric Preheater

    19.4. PURECLASS 800 CL PH. Version with integrated electric preheater I>...

  • Page 61: Pureclass 800 Cl Ph Dc. Version With Integrated Electric Preheater And Water Postheater

    19.5. PURECLASS 800 CL PH DC. Version with integrated electric preheater and water postheater I>...

  • Page 62: Pureclass 800 Cl Ph Di. Version With Integrated Electric Preheater And Electric Postheater

    19.6. PURECLASS 800 CL PH DI. Version with integrated electric preheater and electric postheater I> I>...
  • Page 63 Pre-heater wiring diagram PREHEATER REGULATOR Electric heater TP RA TP RM Heater supply voltage 230V Kpre To DIN3 Control input Electric battery overheat 0-10 V From AOUT3 Regulator From X5 supply voltage Terminal Block 24 Vac Post-heater (1,5 kW) wiring diagram POSTHEATER REGULATOR 1,5kW...
  • Page 64 S&P SISTEMAS DE VENTILACIÓN, S.L.U. C. Llevant, 4 Polígono Industrial Llevant 08150 Parets del Vallès Barcelona - España Tel. +34 93 571 93 00 www.solerpalau.com Ref. UM9023128600...
