CAD-COMPACT BASIC
EN

Advertisement

Table of Contents
loading

Related Manuals for S&P CAD-COMPACT 500

Summary of Contents for S&P CAD-COMPACT 500

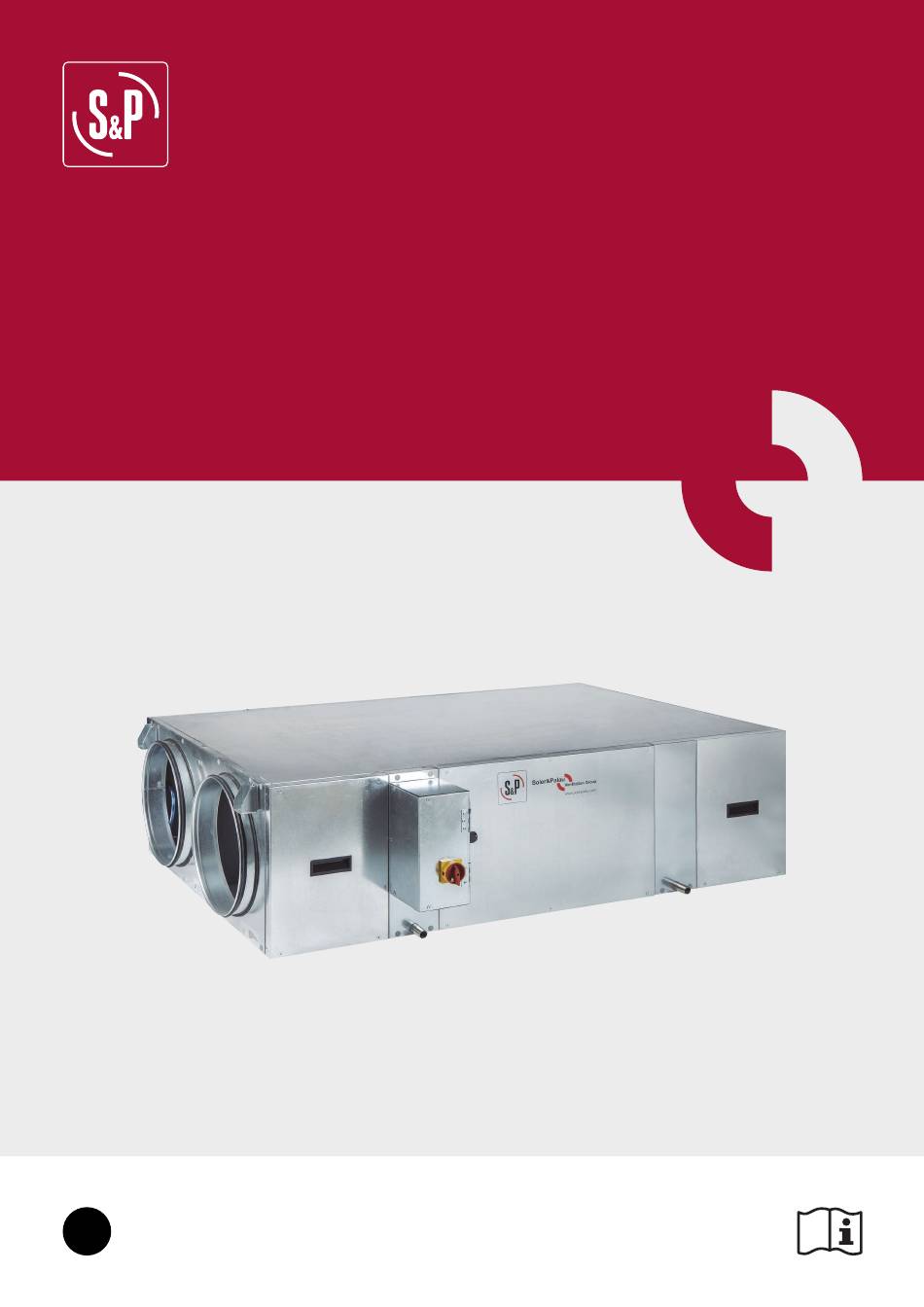

  • Page 1 CAD-COMPACT BASIC...

  • Page 2: Table Of Contents

    10.3. Heat exchanger ................................27 10.4. Fans ....................................27 10.5. Condensation drainpipe ..............................27 11. OPERATION ANOMALIES .................................28 11.1. General anomalies ................................28 11.2. List of alarms ..................................28 12. WIRING DIAGRAMS ..................................30 12.1. CAD-COMPACT 500 to 3200 models ..........................30 12.2. CAD COMPACT 4500 model .............................31...

  • Page 3: Introduction

    1. INTRODUCTION Thank you for purchasing this appliance. It has been manufactured in full compliance with applicable safety regulations and EU standards. Please read this instruction book carefully, as it contains important information for your safety during the installation, use and maintenance of this product. Keep it at hand for future reference.

  • Page 4: Handling

    5. HANDLING The CAD-COMPACT BASIC units are delivered fi xed with screws to the pallets. The handling machines will be adapted to the load and the lifting conditions. In all cases, the lifting will be done at the device’s base. The centre of gravity is located at the centre of the unit. The device must be carefully manipulated only in the horizontal position.

  • Page 5: Outdoor Installation

    Model Total weight of unit Anti vibration kit support (kg) (Composed of 4 pcs.) CAD-COMPACT 500 KIT AM CAD-COMPACT CAD-COMPACT 900 KIT AM CAD-COMPACT CAD-COMPACT 1300 KIT AM CAD-COMPACT CAD-COMPACT 1800 KIT AM CAD-COMPACT CAD-COMPACT 2500 KIT AM CAD-COMPACT CAD-COMPACT 3200...

  • Page 6: Dimensions And Free Space For Maintenance

    6.2. DIMENSIONS AND FREE SPACE FOR MAINTENANCE 6.2.1. Dimensions a) CAD-COMPACT 500 to 1800 models TOP VIEW CONFIGURATION RESULT OF SIMPLE BY DEFAULT (FACTORY SUPPLY) MODIFICATION ON SITE FAN ACCESS FAN ACCESS FAN ACCESS FAN ACCESS FILTER FILTER FILTER FILTER...
  • Page 7 b) CAD-COMPACT 2500 to 4500 models TOP VIEW CONFIGURATION RESULT OF SIMPLE BY DEFAULT (FACTORY SUPPLY) MODIFICATION ON SITE FAN ACCESS FAN ACCESS FAN ACCESS FAN ACCESS FILTER FILTER FILTER FILTER ACCESS ACCESS ACCESS ACCESS ELECTRICAL CABINET OUTDOOR AIR INTAKE SUPPLY FRESH AIR EXTRACT INDOOR AIR EXHAUST INDOOR AIR...

  • Page 8: Free Space For Maintenance

    TOP VIEW TOP VIEW CONFIGURATION RESULT OF SIMPLE MODIFICATION ON SITE BY DEFAULT (FACTORY SUPPLY) Model Unit Filters Heat exchanger Fans CAD-COMPACT 500 1120 500* / 550** CAD-COMPACT 900 1345 500* / 680** CAD-COMPACT 1300 1495 1218 500* / 1020**...

  • Page 9: Connections

    6.5. CONNECTIONS 6.5.1. Connection with air duct The fans are always blowing out with regard to the machine. Before making the connection of air lines, verify existing identifi cation labels in each mouth of the heat recovery units. Supply air Exhaust air Aire de impulsión Aire de expulsión...

  • Page 10: Connecting Electrical Accessories

    Recommended accessories for fan speed regulation Model VAV for CO Only available via Modbus Ambient Duct CAD-COMPACT 500 to 3200 SCO2-A 0/10V SCO2-G 0/10V TDP-D 6.5.4.1. VAV Control (variable airfl ow), with CO sensor or similar CAD-COMPACT BASIC units are equipped with EC motors. The motors have specifi c terminals to receive a re- gulation signal to control fan speed (0-10V).

  • Page 11: Reverse Outdoor Air / Indoor Air Side

    mined experimentally during the system start-up process. CAD-COMPACT BASIC units are equipped with EC motors. The motors have specifi c terminals to receive a regu- lation signal to control fan speed (0-10V). The 0V signal corresponds to the fan stop, while the signal of 10V corresponds to fan maximum speed. To perform speed regulation in constant pressure mode, it is only necessary to have a pressure transmitter with a 0-2000ppm full scale and 0-10V output signal and connect it to the electrical panel as indicated in the electric dia- grams.
  • Page 12 To carry on this modifi cation it is necessary to make the following modifi cations to the unit: 1. Exchange the supply and extract fi lters as well as the access covers to the fi lters. 2. Replace the labels that identify the function of the air inlet/outlet. To do this, a new set of labels is supplied with the unit.

  • Page 13: Control Schemes

    7. CONTROL SCHEMES Supply fan High-effi ciency heat exchanger Extract fan Remote control panel Supply fi lter Supply temperature probe Extract fi lter Outdoor temperature probe Bypass actuator Extract temperature probe SCO2 CO2 sensor (accessory) Exhaust temperature probe Pressure sensor TDP-D (accessory. Exclusively for use FCD Polluted fi...

  • Page 14: Through Integration To Modbus Network (External Bms)

    8.2.2. Through integration to Modbus network (external BMS) Integration into Modbus networks is incompatible with the use of the remote control. In addition to allfunctionality available through the remote control, through the map of modbus registers it is possible to obtain the following functionalities and information: FUNCTIONALITY Automatic fan speed adjustment in COP (Constant Pressure) mode.

  • Page 15: Free-Cooling Function Setting

    8.3.2. Free-cooling function setting The heat recovery units of the CAD-COMPACT range are equipped with a by-pass damper that, when opened, allows outdoor air to be introduced in the building without being heated / cooled in the heat exchanger. (As this is a partial bypass a small percentage of air continues passing through the heat exchanger).

  • Page 16: Advanced Parameters Configuration

    8.4. ADVANCED PARAMETERS CONFIGURATION In addition to the functions that can be performed through the three buttons of the hand terminal, it is also possible to modify some of the parameters and functionalities set from factory. Depending on the parameter to be modifi ed, it will be necessary to access the electronic board of the controller (inside the electrical cabinet) or the remote hand terminal.

  • Page 17: Modifi Cation Of Predefi Ned Speeds

    Jumper Functionality Enable Modbus communication (Control of the unit from the BMS) In Modbus networks, define last unit in the network (end of line) Exchange of the supply and extraction airflows Origin of fan speed control (Command, external sensor, etc.) Functionality of the selectors and jumpers on the controller board (inside the electrical cabinet).

  • Page 18: Fan Selection That Acts As A Master(Only Available On Units Controlled Via Modbus In Cop Mode)

    8.4.3. Fan selection that acts as a master (only available on units controlled via Modbus in COP mode) Using the SW4.3 selector it is possible to defi ne which of the two fans acts as a master. The fan defi ned as mas- ter must be the one that supplies or extracts air from the network of ducts in which the pressure transmitter is installed.

  • Page 19: Filter Supervision

    8.4.5. Filter supervision CAD-COMPACT BASIC heat recovery units are supplied with pressure switches mounted on both fi lters (supply and extraction). When the differential pressure value measured by the pressure switches exceeds 200Pa an alarm is produced. Depending on the particularities of the installation (operating hours and polution of the outdoor en- vironment) it may be advisable to change the pressure switch setting as indicated in the following table: Filters state Airfl...

  • Page 20: Exchange The Function Of The Supply And Extraction Circuits

    8.4.6. Exchange the function of the supply and extraction circuits • By the JP6 Jumper existing on the electronic board of the electrical panel, it is possible to interchange the func- tion of the supply and extract fans. • The supply fan becomes the extraction fan and viceversa. left side (by default) right side Jumper JP6...

  • Page 21: Protection Of Heat Exchanger Unit

    When the equipment is stopped remotely the control hand terminal displays an alarm message, warning that it is possible that the unit will be start up from remote suddenly. 8.4.9. Protection of heat exchanger unit This functionality prevents freezing of the condensates existing inside the heat exchanger (On the side of the air exhaust).
  • Page 22 Position of the JP1 and JP4 Jumpers depending on the location of the unit in the Modbus network. CONTROL CONTROL CONTROL BASIC nº1 BASIC nº2 BASIC nº3 JP1=Open JP1=Open JP1=Open JP4=Open JP4=Open JP4=Closed MODBUS RS-485 SHIELDED CABLE SHIELDED CABLE 0V - Gnd Basic characteristics of the Modbus-RTU controller Addressing Slave: configurable address from 1 to 247...
  • Page 23 Nº Type of register Description Range Data Default Comments Reg. value MODBUS confi guration Holding Register Communication 1 - 247 Channel / Node channel Holding Register Baudrate 1200 2400 4800 9600 14400 19200 28800 38400 56000 57600 115200 Holding Register Parity Without parity Involves that will exist...
  • Page 24 Nº Type of register Description Range Data Default Comments Reg. value Holding Register Type of sensor Without sensor Temperature Relative humidity 0-10V external control Holding Register Range PPM 0 - 4000 CO2 PPM 2000 If type sensor = 1 Holding Register Temperature Range 0 - 80 ºC If type sensor = 2...
  • Page 25 Nº Type of register Description Range Data Default Comments Reg. value BY-PASS management Discret input By-pass status Open Closed Holding Register By-pass operation Automatic mode Manual open Manual closed Coil Definition of TETA Control in extract air Tcontrol TSUP Control in supply air Holding Register Timmer after 0 - 600...

  • Page 26: Inspection, Maintenance And Cleaning

    fi nd in the new S&P fi lter. Filters spare parts table Model Accessory fi lters and spare parts for CAD-COMPACT* CAD-COMPACT 500 AFR-CAD-COMPACT 500 G4 AFR-CAD-COMPACT 500 M5 AFR-CAD-COMPACT 500 F7 AFR-CAD-COMPACT 500 F9 CAD-COMPACT 900...

  • Page 27: Heat Exchanger

    10.3. HEAT EXCHANGER To perform the heat exchanger cleaning it is necessary to remove it from the unit. The disassembly can be easily done from the lateral panel: Core disassembly sequence per side Fig.1 To disassemble of the heat exchanger follow the following sequence: •...

  • Page 28: Operation Anomalies

    11. OPERATION ANOMALIES 11.1. GENERAL ANOMALIES Anomaly Cause Solution Difficult to start. Reduced power supply voltage. Check motor specification plate. Insufficient static torque of motor. Close the air inlets to reach the maximum speed. Change the motor is necessary. Contact the S&P Post-Sales service. Insufficient airflow.
  • Page 29 The number of LED fl ashes refers to the type of error detected: Priority Alarm/Status Actuation Communication error Red led, 1 blink Stop the unit between hand terminal and electronic board Extraction fan failure Red led, 2 blinks Stops unit after 90 s (adjustable) from the “Fan Fault”...

  • Page 30: Wiring Diagrams

    12. WIRING DIAGRAMS 12.1. CAD-COMPACT 500 TO 3200 MODELS Control 0-10V Supply fan Control 0-10V SUPPLY Extract fan 230V 50Hz 1Ph+N Remote ON/OFF CLP2 N2 L2 N1 L1 Digital input CLP1 230VAC ALARM Digital output (Free of voltage) By-pass Actuator...

  • Page 31: Cad Compact 4500 Model

    12.2. CAD COMPACT 4500 MODEL Control 0-10V Supply fan SUPPLY 400V 50Hz Control 0-10V 3Ph+N Extract fan Remote ON/OFF CLP2 N2 L2 N1 L1 Digital input CLP1 230VAC ALARM Digital output (Free of voltage) By-pass Actuator Control Local/Modbus BOOST (High Speed) Digital Input MODBUS RTU White...
  • Page 32 S&P SISTEMAS DE VENTILACIÓN, S.L.U. C. Llevant, 4 Polígono Industrial Llevant 08150 Parets del Vallès Barcelona - España Tel. +34 93 571 93 00 www.solerpalau.com Ref. 9023092000-01...
