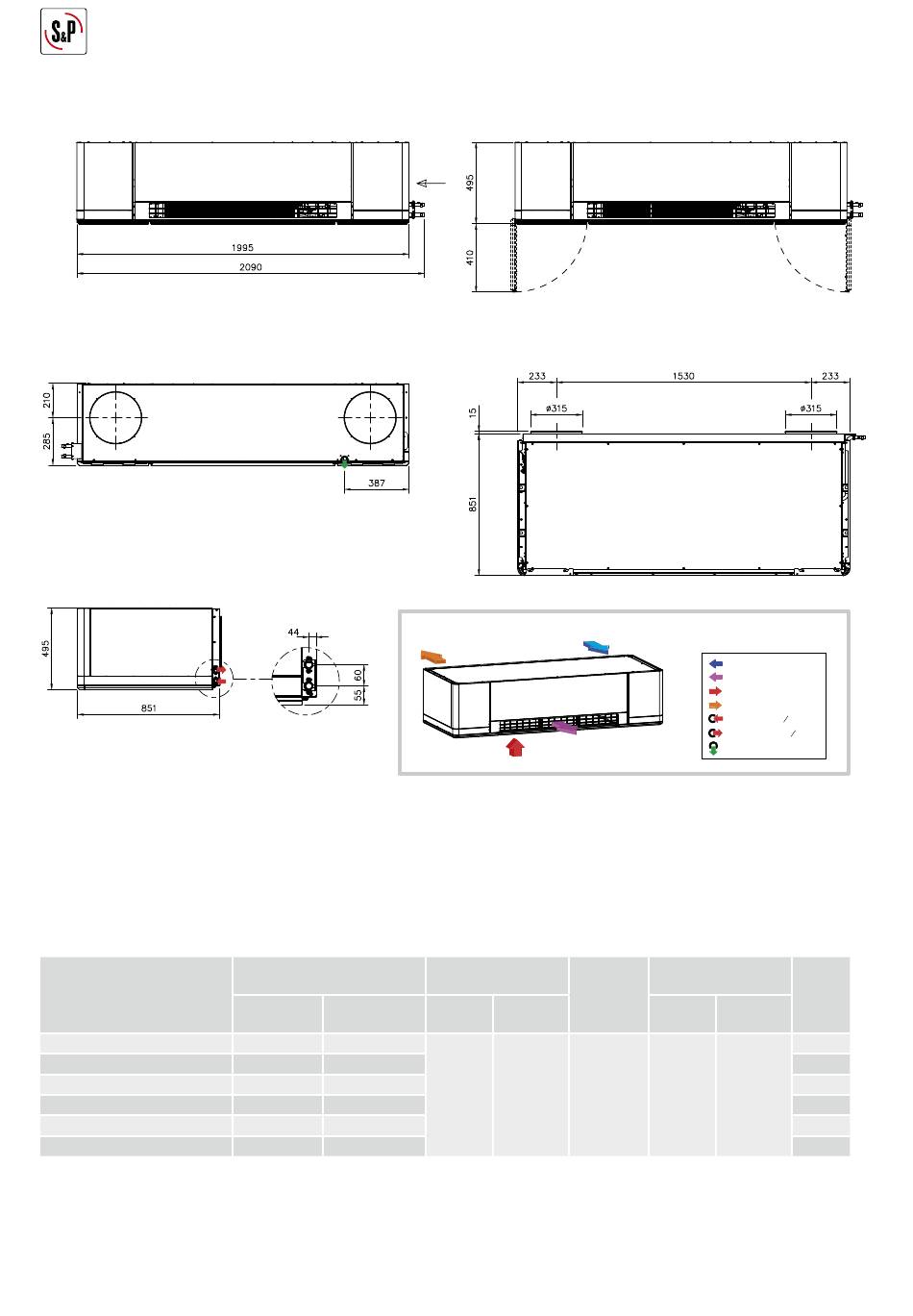

b) PURECLASS 800 CL DC (With integrated water coil)
View from the rear
View from the right side (A)

8.4. MOUNTING PROCESS OF AN ADDITIONAL SUPPLY FILTER

The heat recovery unit is supplied with the filters mounted inside. ISO Coarse +ISO ePM1 50% (G4+F7) in the supply air
and ISO ePM10 50% (M5) in the extract air (for more information see section "Replacing filters").

8.5. RANGE SPECIFICATIONS

8.5.1. Versions and general characteristics

Model
PURECLASS 800 CL
PURECLASS 800 CL DC
PURECLASS 800 CL DI
PURECLASS 800 CL PH
PURECLASS 800 CL PH DC
PURECLASS 800 CL PH DI
¹ Wet efficiency referred to nominal airflow. Outdoor -5ºC 80% Rel.Hum. Indoor 20ºC 50%.
² At 3 m distance, considering installation in room with acoustic ceiling, reverberation time 0.5s and room attenuation -12 dB(A).
³ 800 m³/h with clean filters.
1000 m³/h with clogged filters (maximum fan speed).
4
12
Coils configuration
Preheater Postheater
No No
No Water
No Electric 3kW
Electric 2kW No
Electric 2kW Water
Electric 2kW Electric 1,5kW
A
View from the top
Airflow rate Heat
(m³/h) exchanger
efficiency¹
Nominal Maximum
(%)
(Boost)
800 1000 84,5
OUTDOOR / FRESH AIR
SUPPLY AIR
EXTRACT AIR
EXHAUST AIR
WATER INLET 1 "
2
WATER OUTLET 1 "
2
DRAIN OUTLET
Sound level Weight
dB(A)² (kg)
Nominal Maximum
airflow³ (Boost)
4
152
157
158
35 dB(A) 42 dB(A)
157
162
163
