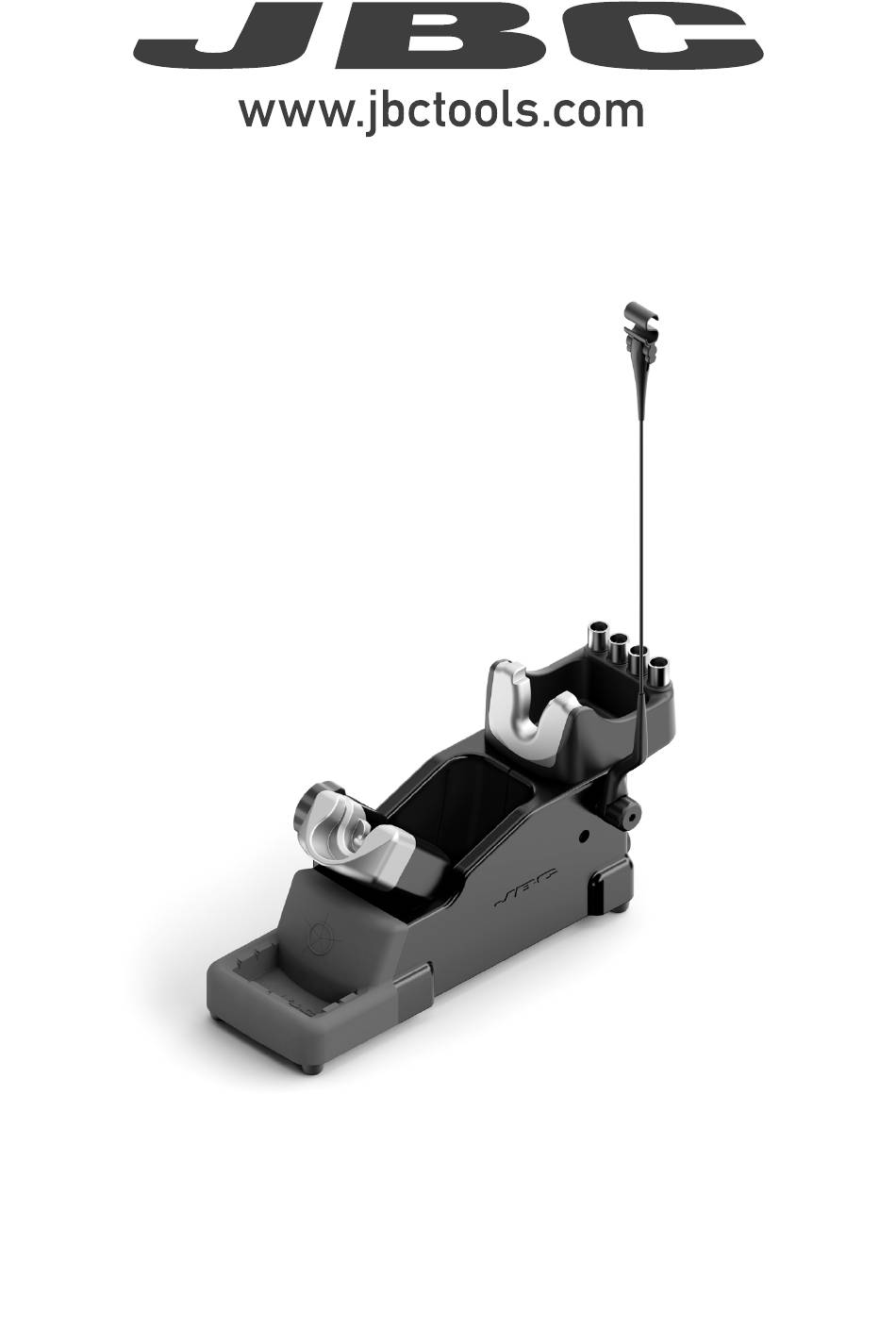

- Page 1 INSTRUCTION MANUAL Stand for DT530...
-
Page 2: Packing List
This manual corresponds to the following references: DT-SA Packing List The following items are included: Stand for DT530 Angled Desoldering Iron ................ 1 unit Stand Cable 1m .... 1 unit Sponge for Modular Brass Wool ....1 unit Ref. 0024227 Tool Stands .... -
Page 3: Features And Connections
w w w.jbctools.com Features and Connections CC1001 Cable Collector Tip Holder Tool Holder CL6210 Brass Wool (inside) S7034 Sponge CL7889 Wiper To Control Unit To Tool... - Page 4 Assembly Cable Collector (CC1001) Insert the cable into the clip and then insert into the cable collector. Do not leave the cable longer than necessary The cable collector is flexible. to reach the work area freely. It accompanies and adapts to the movements during the soldering process.
- Page 5 Brass Wool Very effective cleaning method. Leaves a small layer of solder on the tip preventing oxidation between cleaning and rewetting. If the tip is very dirty, JBC recommends first the cleaning with the wiper to remove excess solder. Wiper The integrated wiper offers different ways to clean the cartridge tips.
- Page 6 At least 250 ºC Spanner Tip Storage When is spanner is not used, Use JBC’s spanner to unscrew To remove the tip from the it can be stored on the stand. the tip. The tip will remain spanner, simply place the tip...
- Page 7 w w w.jbctools.com Workplace Example* Connection between stand, tool, filter, module and control unit. Pneumatic Desoldering Module A1287 Suction Tube Extension (Length: 1.5 m / 39.37 in) 0821830* Suction Filter Set (incl. Suction Tube) 2-Tool Control Unit min. station firmware** 8886903 4-Tool Control Unit A1286* min station firmware** 8886909...
-
Page 8: Maintenance
- Periodically check all cables and tube connections. - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. - Page 9 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the stand for any other purpose than desoldering or rework. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
- Page 10 Notes...
- Page 11 w w w.jbctools.com Notes...
-
Page 12: Specifications
13.39 x 6.30 x 4.72 in / 4.67 Complies with CE standards ESD safe Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
