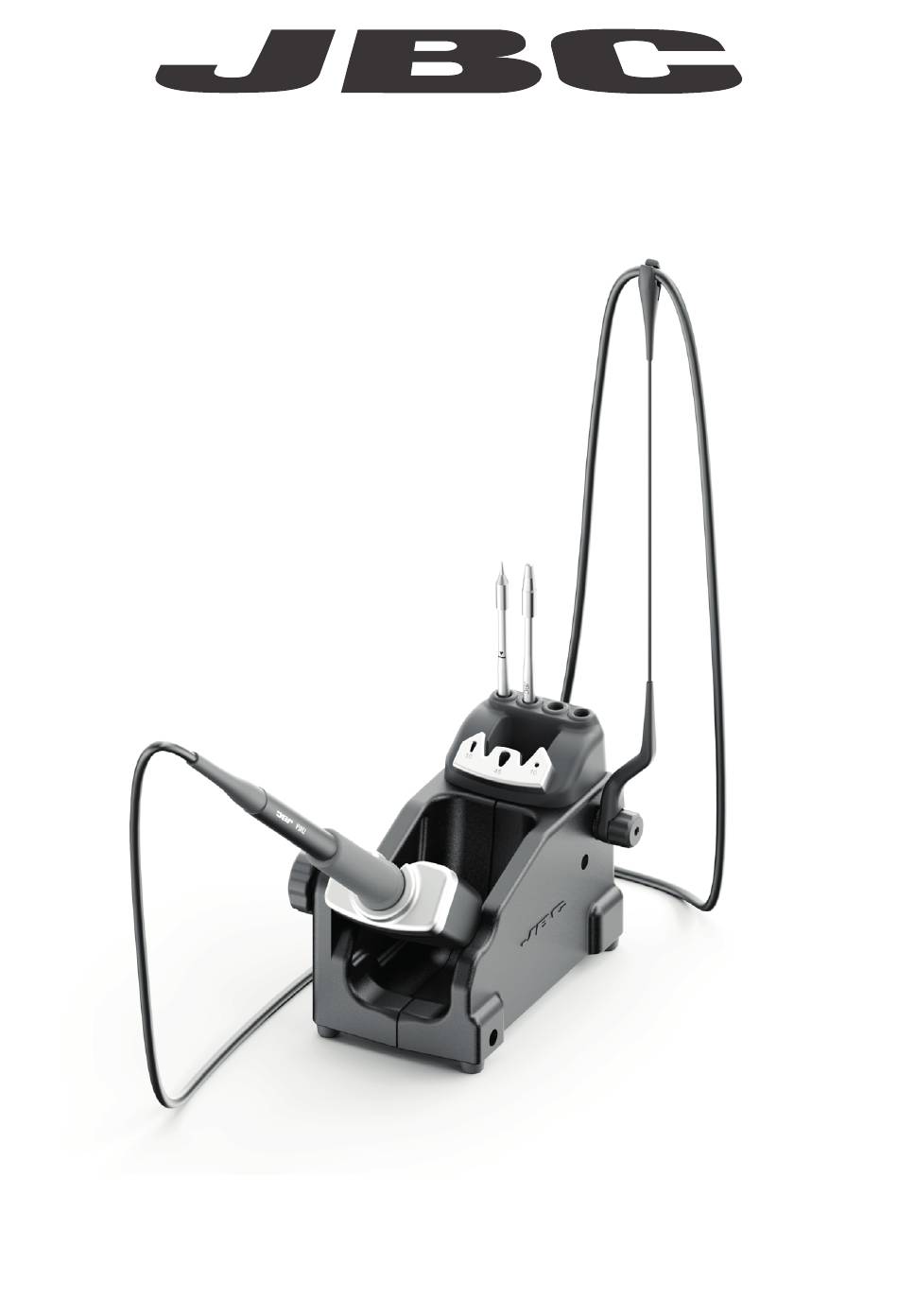

- Page 1 INSTRUCTION MANUAL Stands for Handles Ref. AD-SE / DN-SE...
- Page 2 Packing List Stand ............1unit Stand ............1 unit Ref. DN-SE Ref. AD-SE The following items are included in each stand: Stand Cable 1m........ 1 unit Manual ............1 unit Ref. 0011283 Ref. 0021639...

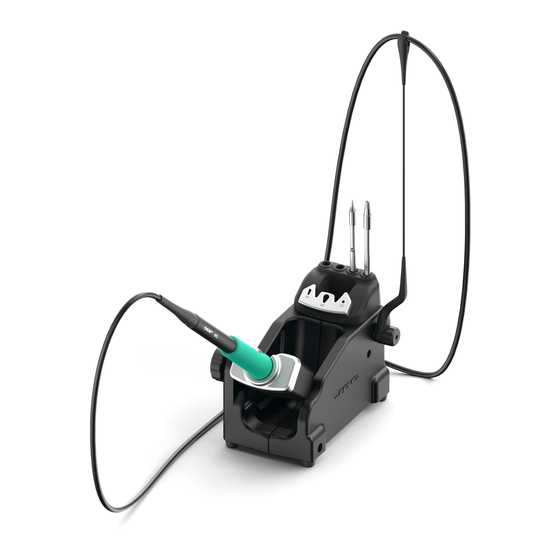

- Page 3 Stand To Control Unit To tool Quick Tip Changer Ref. AD-SE Save time and change cartridges safely without switching the station off. Be careful, the cartridges may be hot, when placing them in the storage rack. 1. Removing 2. Inserting 3.
- Page 4 Extractor DN-SE Ref. DN-SE Loosen the handle screw and follow the guide. Handle Screw Assembly: Cable Collector and Adjustable Tool Holder AD-SE...
- Page 5 w w w.jbctools.com Accessories Stand extension cable Ref. A1286 Length: 1.5m Stand cable...
- Page 6 - Periodically check all cables and tube connections. - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
- Page 7 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the stands for any purpose other than soldering or rework. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
- Page 8 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
