Solder Pot Cartridge Stand
Ref. CT-SA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT-SA and is the answer not in the manual?

Questions and answers

Summary of Contents for jbc CT-SA

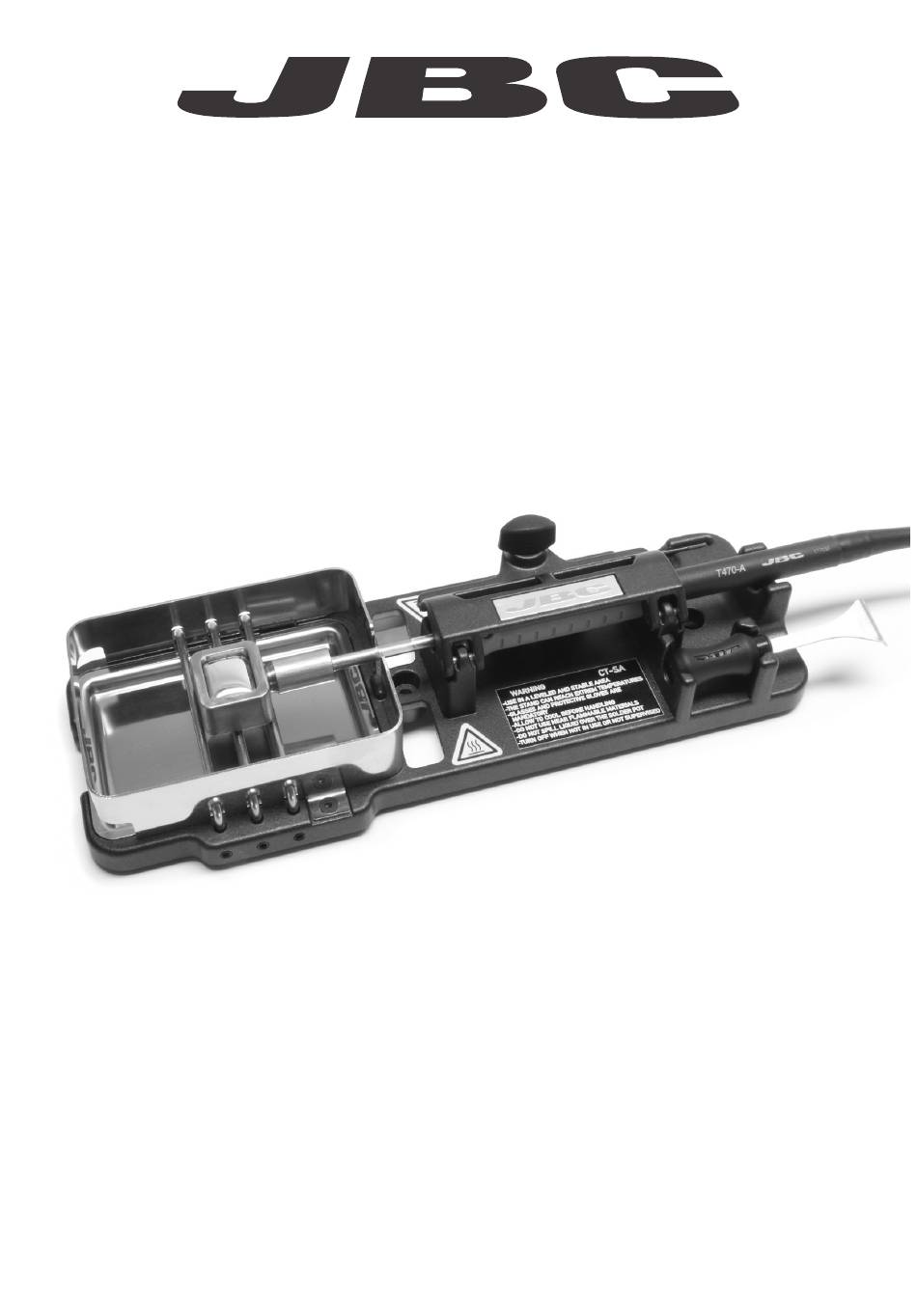

  • Page 1 Solder Pot Cartridge Stand Ref. CT-SA...
  • Page 3: Packing List

    Packing List The following items should be included: Solder Pot Cartridge stand .......................... 1 unit Ref. CT-SA Handle & Cartridge are not included Spatula 17 mm .......... 1 unit Spatula 39 mm .......... 1 unit Ref. 0017193 Ref.
  • Page 4: Operation

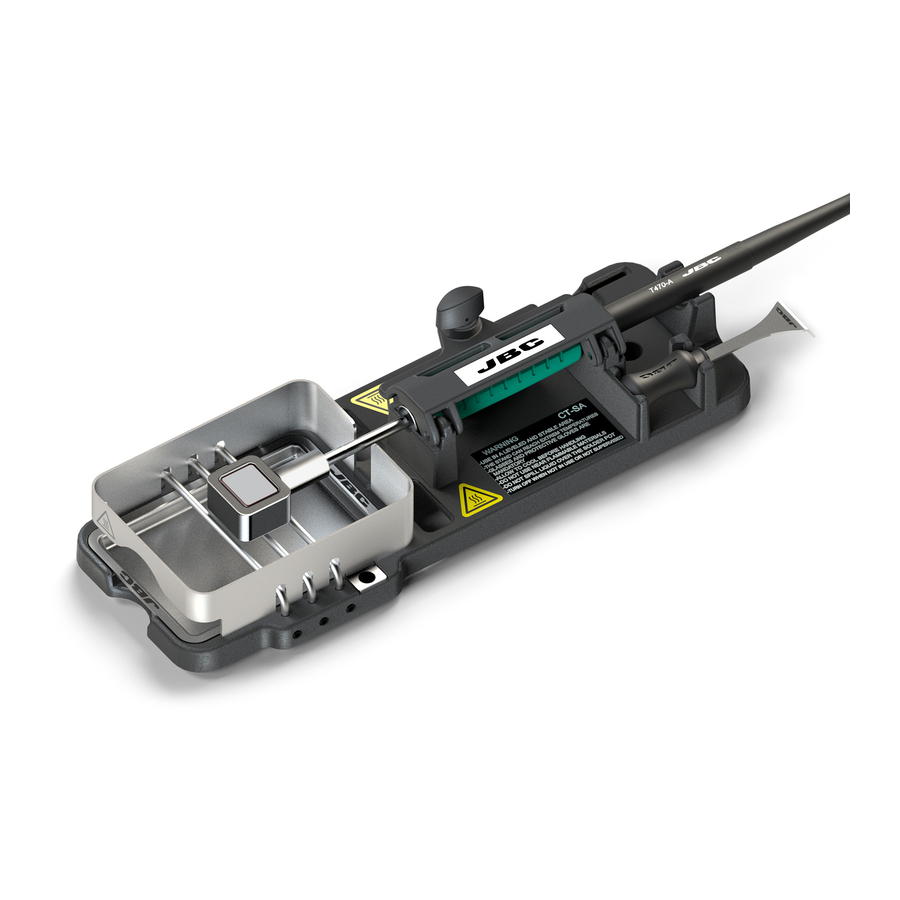

    Operation The CT-SA Solder Pot Cartridge Stand holds the handle T245 or T470 with the Solder Pot Cartridge to avoid it tipping over accidentally. Find the cartridges availables in www.jbctools.com As a safety precaution, before placing the handle, make sure the station is off and the tin is cold.
  • Page 5 The screws, washers and the self-locking nuts are not included To fix the CT-SA in place, put the spacers (Ref. 0014899) between the stand and the workbench. This means you protect the stand’s rubber feet from wear and tear.
  • Page 6: Maintenance

    - Use a damp cloth to clean the tray and the protective screen. Alcohol can only be used for cleaning the metal parts. - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
  • Page 7: Exploded View

    w w w.jbctools.com Exploded View...
  • Page 8: Specifications

    50 x 246 x 92 mm (1.97 x 9.69 x 3.62 in) Complies with CE standards. ESD protected housing “skin effect”. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
