Summary of Contents for jbc DS-SE

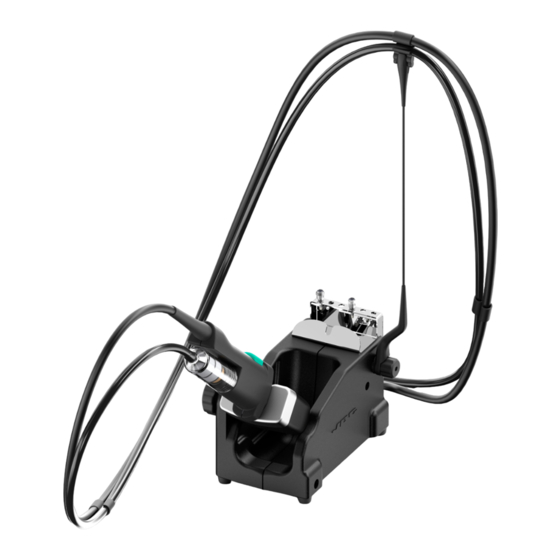

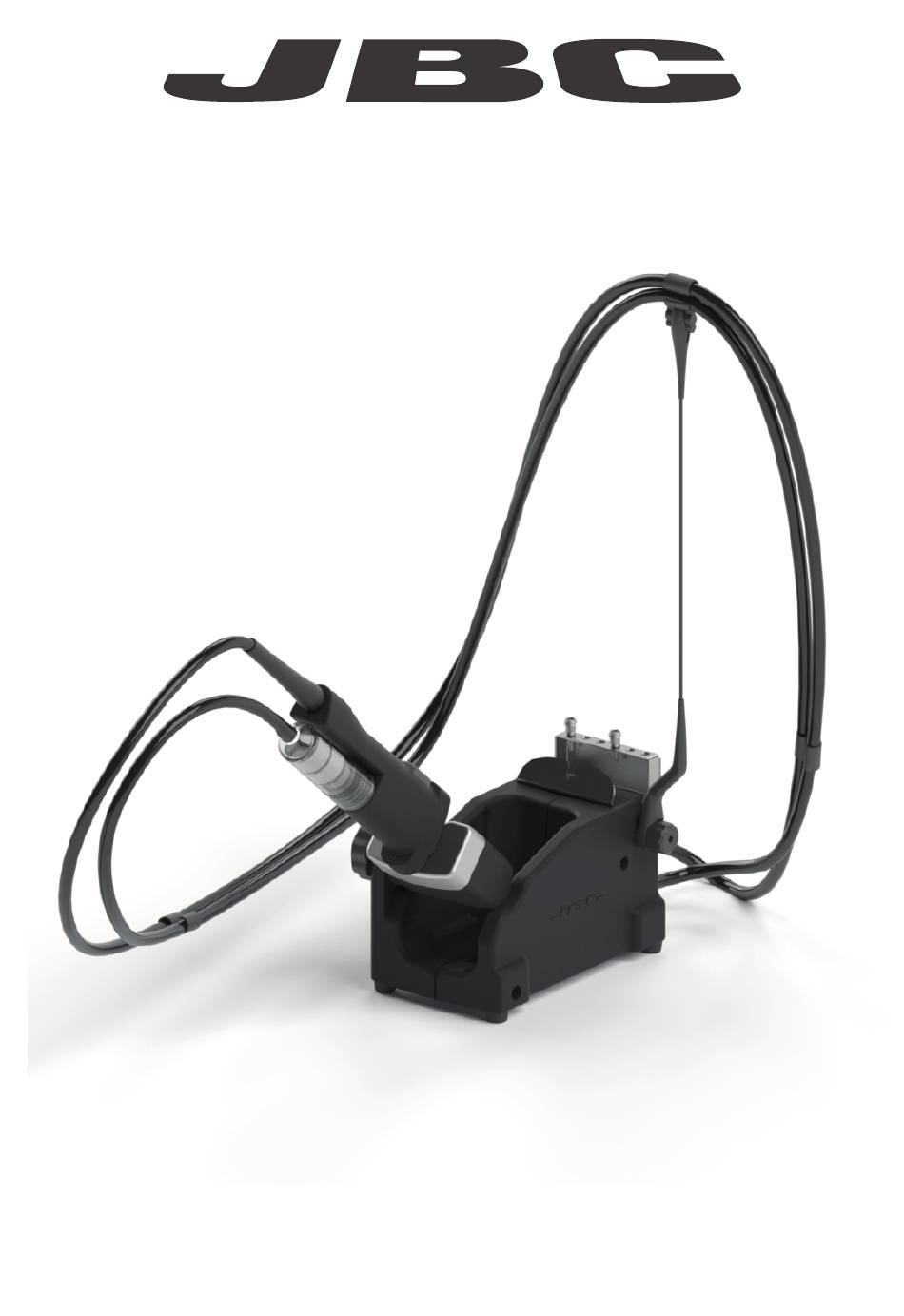

- Page 1 INSTRUCTION MANUAL Stands for Desoldering Iron Ref. DS-SE / DR-SE...
- Page 2 The following items are included in each stand: Stand Cable 1m..1 unit Cable Holder....1 unit Manual ......1 unit Ref. 0011283 Ref. 0010154 Ref. 0021652 w w w.jbctools.com INSTRUCTION MANUAL Stands for Desoldering Iron Ref. DS-SE / DR-SE...
- Page 3 DS-SE DR-SE Stand To Control Unit To tool Extractors Ref. DS-SE Place the Soldering Iron in the extractor and remove the tip. Loosen Insert the new tip and press slightly. Use the holes to place the different tips. Tips holder Ref.
- Page 4 Assembly: Collector and Adjustable Tool Holder Assembly for DR and DS stands. Cable holder Ref. 0010154 DS-SE DR-SE...
- Page 5 w w w.jbctools.com Accessories Suction extension tube kit Ref. A1287 Length: 1.5m Stand extension cable Ref. A1286 Length: 1.5m Stand cable...
- Page 6 - Periodically check all cables and tube connections. - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
- Page 7 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the stand for any other purpose than soldering or rework. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
- Page 8 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
