Emerson Rosemount 648 Quick Start Manual

Emerson Rosemount 648 Quick Start Manual

Wireless temperature transmitter with rosemount x-well technology
Hide thumbs Also See for Rosemount 648:

Advertisement

Table of Contents

Quick Start Guide
00825-0200-4648, Rev EK
September 2023
Rosemount
648 Wireless
™
Temperature Transmitter
with Rosemount X-well
Technology
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rosemount 648 and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson Rosemount 648

Summary of Contents for Emerson Rosemount 648

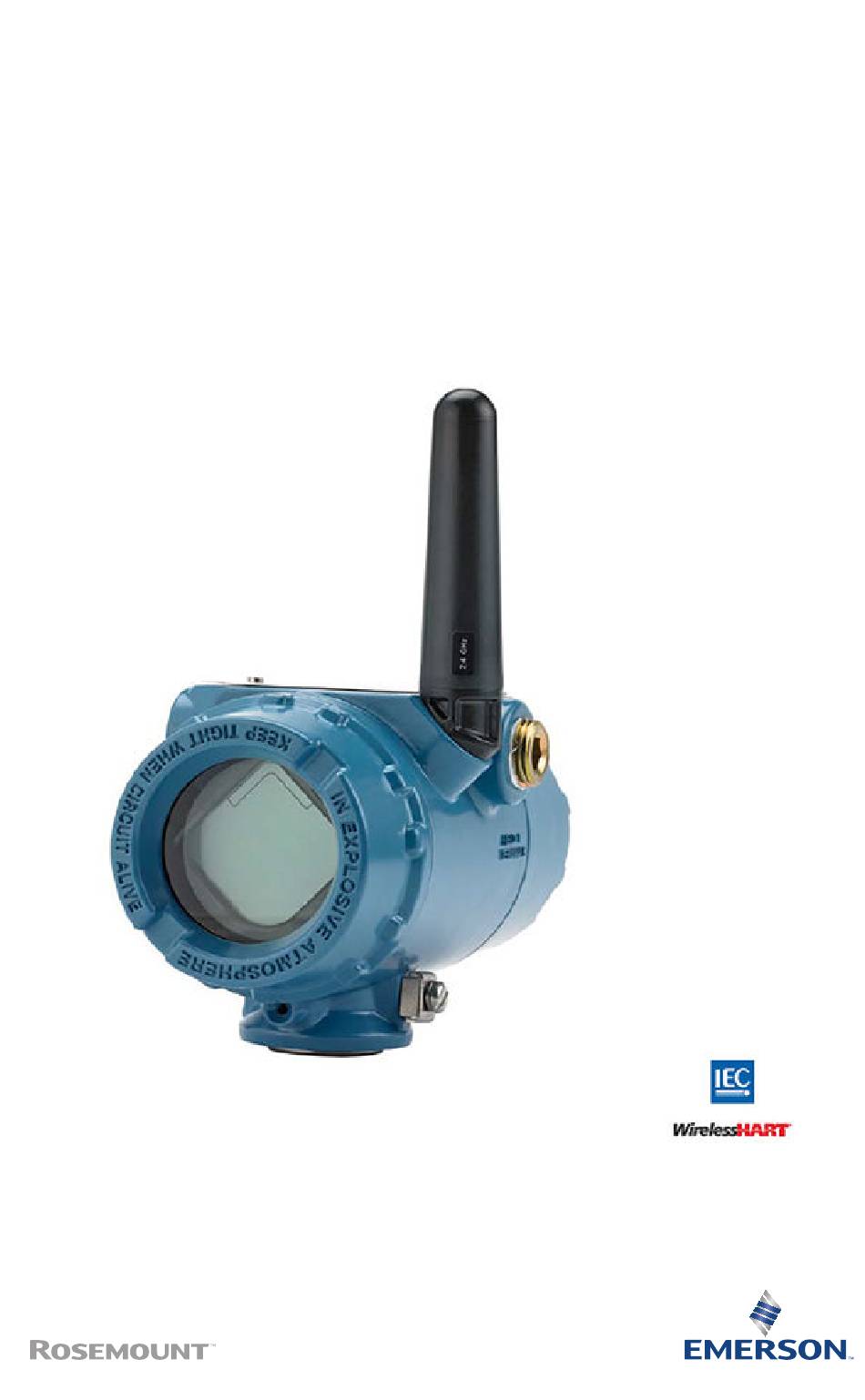

  • Page 1 Quick Start Guide 00825-0200-4648, Rev EK September 2023 Rosemount 648 Wireless ™ Temperature Transmitter with Rosemount X-well Technology ™...
  • Page 2 Device Install Kit/DD Revision Revision 4, DD Revision 1 or higher NOTICE This guide provides basic information for the Rosemount 648 Wireless. It does not provide instructions for detailed configuration, diagnostics, maintenance, service, troubleshooting, or installations. Refer to the Rosemount 648 Wireless Reference Manual for more instruction.
  • Page 3 September 2023 Quick Start Guide Power module replacement..................... 21 Product certifications........................ 23 Declaration of Conformity......................31 China RoHS..........................33 Quick Start Guide...
  • Page 4 Quick Start Guide September 2023 Rosemount 648...

  • Page 5: Wireless Considerations

    Wireless considerations 1.1  Power up sequence The Rosemount 648 Wireless and all other wireless devices should be installed only after the Wireless Gateway (“Gateway”) has been installed and is functioning properly. Wireless devices should also be powered up in order of proximity from the Gateway, beginning with the closest.
  • Page 6 A. Conduit entry 1.4  Field Communicator connections The Black Power Module needs to be installed in the device for the Field Communicator to interface with the Rosemount 648 Wireless. For HART Wireless Transmitter communication via a Field ® Communicator, a Rosemount 648 Wireless Device Dashboard (DD) is required.
  • Page 7 September 2023 Quick Start Guide Figure 1-3: Connection P/N 00753-9200-0020 COMM Quick Start Guide...

  • Page 8: Physical Installation

    Direct Mount, where the sensor is connected directly to the Rosemount 648 Wireless housing’s conduit entry. • Remote Mount, where the sensor is mounted separate from the Rosemount 648 Wireless housing, then connected to the transmitter using conduit. Select the installation sequence that corresponds to the mounting configuration.
  • Page 9 September 2023 Quick Start Guide Figure 2-1: Installing Electronics Housing Cover 5. Close housing cover and tighten to safety specification. Always ensure a proper seal by installing the electronics housing covers so metal touches metal, but do not overtighten. 6. Position antenna vertically, either straight up or straight down.
  • Page 10 7. Position antenna vertically, either straight up or straight down.The antenna should be approximately 3 ft. (1 m) from any large structures or buildings. This will allow clear communication to other devices. Rosemount 648...
  • Page 11 September 2023 Quick Start Guide Figure 2-4: Possible Antenna Rotation Quick Start Guide...
  • Page 12 September 2023 2.4  Rosemount X-well Installation Rosemount X-well Technology is only available in the Rosemount 648 Wireless and 0085 pipe clamp sensor factory assembled complete point solution. Rosemount X-well Technology will only work as specified with factory supplied and assembled pipe clamp sensor.
  • Page 13 September 2023 Quick Start Guide Figure 2-5: Rosemount 648 Wireless with Rosemount X-well Technology Installation Drawing Quick Start Guide...
  • Page 14 Operating:–4 to 175 °F (–20 to 80 °C) • Storage:–40 to 185 °F (–40 to 85 °C) Note Only use Rosemount Wireless LCD Display part number: 00753-9004-0002. Figure 2-6: Optional LCD Display A. LCD display pins B. LCD display display C. LCD display cover Rosemount 648...

  • Page 15: Verify Operation

    AMS Wireless Suite or AMS Device Manager LCD display During normal operation, the LCD display will show the PV value at the confirmed update rate. Refer to the Rosemount 648 Wireless Reference Manual for error codes and other LCD display messages.
  • Page 16 Comm, Join Mode, Neighbor Count, Advertisement Count, Join Attempts Wireless Gateway If the Rosemount 648 Wireless was configured with the Network ID and Join Key and sufficient time for network polling has passed, the transmitter will be connected to the network. To verify device operation and connectivity using the Wireless Gateway's web based user interface, navigate to the Devices page.
  • Page 17 For HART Wireless transmitter communication via AMS Device ® Manager, a Rosemount 648 Wireless Device Dashboard (DD) is required. Rosemount 648 Wireless Transmitters equipped with Rosemount X-well Technology requires DD revision 648 Dev. 4 Rev. 1 or higher to view Rosemount X-well functionality. To obtain the latest DD, visit the Emerson Easy Upgrade site at: Emerson.com/Device-Install-Kits...

  • Page 18: Reference Information

    Quick Start Guide September 2023 4  Reference Information The Rosemount 648 Wireless is compatible with a number of RTD and thermocouple sensor types. Figure 4-1 shows the correct input connections to the sensor terminals on the transmitter. Figure 4-2, Figure 4-3, and...
  • Page 19 September 2023 Quick Start Guide Note In order to communicate with a Field Communicator, the device must be powered by connecting the black power module. Figure 4-2: Single Element Rosemount 65, 68, 78 Series, and 58C Lead Wire Configurations White (1) White (2) Red (3) Red (4)
  • Page 20 Quick Start Guide September 2023 Table 4-1: Rosemount 648 Wireless Fast Key Sequence Function Fast Key Menu items sequence Device 2, 2, 7 Tag, Long Tag, Descriptor, Message, Information Date Guided Setup 2, 1 Configure Sensor, Join to Network, Config Advance Broadcasting, Calibrate...

  • Page 21: Power Module Replacement

    September 2023 Quick Start Guide 5  Power module replacement Expected black power module life is 10 years at reference conditions. When module replacement is required, perform the following procedure: 5.1  Replace the power module Procedure 1. Remove the cover and module. 2.
  • Page 22 Quick Start Guide September 2023 encouraged. For battery specific information, consult the materials safety data sheet. 5.4  Shipping considerations The unit was shipped to you without the Black Power Module installed. Remove the module prior to shipping the unit. Rosemount 648...

  • Page 23: Product Certifications

    RF spectrum. Nearly every country requires this type of product certification. Emerson is working with governmental agencies around the world to supply fully compliant products and remove the risk of violating country directives or laws governing wireless device usage.
  • Page 24 2. The surface resistivity of the antenna is greater than 1 GΩ . To avoid electrostatic charge build-up, it must not be rubbed or cleaned with solvents or dry cloth. 3. The Rosemount 648 Wireless Transmitter shall only be used ™ with the 701PBKKF Rosemount SmartPower...
  • Page 25 September 2023 Quick Start Guide 6.6.2  N5 U.S. Nonincendive (NI) and Dust Ignition-Proof (DIP) FM 3027705 Certificate FM Class 3600 — 2011, FM Class 3611 — 2004, FM Class Standards 3810 — 2005, ANSI/NEMA 250 — 2003 NI CL I, DIV 2, GP A, B, C, D T4/T5; T4(–50 °C ≤ T ≤...
  • Page 26 II 1 G Ex ia IIC T4 Ga, T4(-60 °C ≤ T ≤ +70 °C) Markings: For use with Rosemount SmartPower power module part number 753-9220-0001, or for use with Emerson SmartPower option 701PBKKF. Sensor terminal parameters = 6.6 V = 26.2 mA...
  • Page 27 3. The Rosemount 648 enclosure may be made of aluminum alloy and given a protective polyurethane paint finish; however, care should be taken to protect it from impact or abrasion if located in a Zone 0 area.
  • Page 28 GYJ21.3298X Certificate GB3836.1-2010, GB3836.4-2010, GB3836.20-2010 Standards Ex ia IIC T4 Ga Markings T code Ambient temperature -60 °C ≤ T ≤ +70 °C Sensor terminal parameters = 6.6 V = 26.2 mA = 42.6 mW = 11 μF Rosemount 648...
  • Page 29 September 2023 Quick Start Guide Sensor terminal parameters = 25 mH Special Condition for Safe Use (X): See certificate for special conditions. 6.12  Japan 6.12.1  I4 Japan Intrinsic Safety CML 18JPN2105X Certificate Ex ia IIC T4 Ga Markings See certificate for ambient temperature ranges. Sensor terminal parameters = 6.6 V...
  • Page 30 Markings Sensor terminal parameters = 6.6 V = 26.2 mA = 42.6 mW = 10.9 μF = 25 mH Special Condition for Safe Use (X): See certificate for special conditions. 6.15  Combination Combination of I1, I5, and I6 Rosemount 648...

  • Page 31: Declaration Of Conformity

    September 2023 Quick Start Guide 7  Declaration of Conformity Quick Start Guide...
  • Page 32 Quick Start Guide September 2023 Rosemount 648...

  • Page 33: China Rohs

    September 2023 Quick Start Guide 8  China RoHS Quick Start Guide...
  • Page 34 Quick Start Guide September 2023 Rosemount 648...
  • Page 35 September 2023 Quick Start Guide Quick Start Guide...
  • Page 36 2023 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
