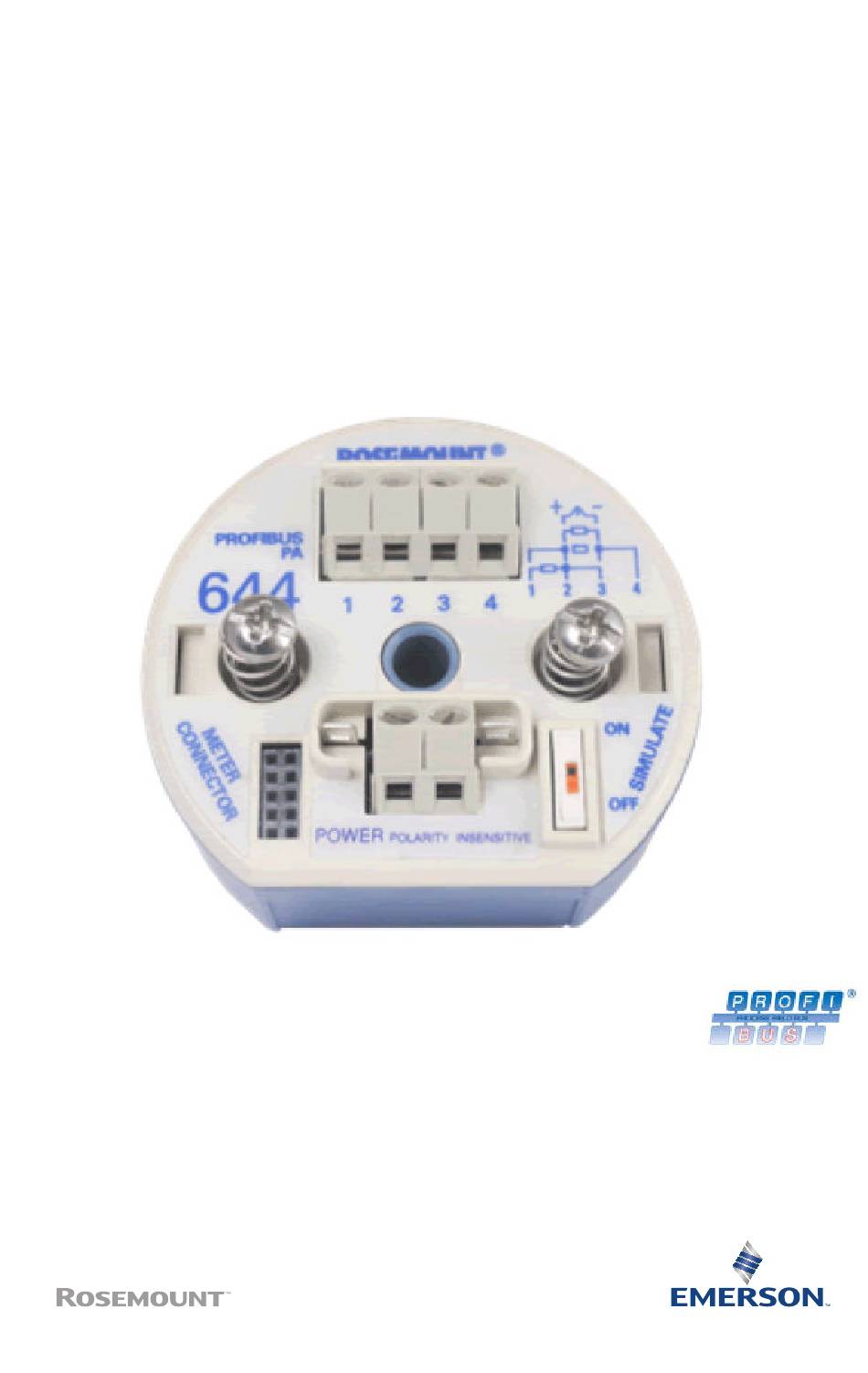

Quick Start Guide
00825-0300-4728, Rev EB
November 2024
Rosemount
™
644H Temperature
Transmitter
with PROFIBUS
PA
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rosemount 644H and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson Rosemount 644H

Summary of Contents for Emerson Rosemount 644H

  • Page 1 Quick Start Guide 00825-0300-4728, Rev EB November 2024 Rosemount ™ 644H Temperature Transmitter with PROFIBUS ®...

  • Page 2: Table Of Contents

    Quick Start Guide November 2024 Contents About this guide........................... 3 Mount the transmitter.........................6 Wire and apply power......................... 9 Ground the transmitter......................11 Verify tagging..........................15 Transmitter configuration......................16 Product certifications........................ 20 Declaration of Conformity......................36 China RoHS..........................40 www.Emerson.com...

  • Page 3: About This Guide

    Using non-nuclear qualified products in applications that require nuclear-qualified hardware or products may cause inaccurate readings. For information on Emerson nuclear-qualified products, contact your local Emerson Sales Representative. Follow instructions Failure to follow these installation guidelines could result in death or serious injury.
  • Page 4 Avoid contact with the leads and terminals. High voltage that may be present on leads can cause electrical shock.  WARNING Refer to the Product certifications section of this Quick Start Guide documentation when using the RFID tag (option code Y3) for required installation conditions. www.Emerson.com...
  • Page 5 Entries marked "M20" are M20 x 1.5 thread form. When installing in a hazardous location, use only appropriately listed or Ex-certified plugs, glands, or adapters in cable/conduit entries. www.Emerson.com...

  • Page 6: Mount The Transmitter

    7. Insert the shielded cable leads into the connection head through the cable entry. Connect and tighten the cable gland. 8. Connect the shielded power cable leads to the transmitter power terminals. Avoid contact with sensor leads and sensor connections. 9. Install and tighten the connection head cover. www.Emerson.com...
  • Page 7 4. Verify the correct installation of Integral Transient Protection (option code T1). a) Ensure the transient protector unit is firmly connected to the transmitter puck assembly. b) Ensure the transient protector power leads are adequately secured under the transmitter power terminal screws. www.Emerson.com...
  • Page 8 Attach the sensor and power leads to the transmitter. Note Avoid contact with other terminals. 9. Install and tighten the universal head cover. A. Threaded thermowell B. Standard extension C. Threaded style sensor D. Universal head (transmitter and LCD display inside) E. Conduit entry www.Emerson.com...

  • Page 9: Wire And Apply Power

    5. Apply power (9–32 Vdc). Figure 3-1: Sensor Connections Two-wire RTD Three-wire RTD Four-wire RTD T/C and mV and Ω and Ω and Ω Note Emerson provides four-wire sensors for all single element RTDs. Use these RTDs in three-wire configurations by leaving www.Emerson.com...
  • Page 10 RTD in order to recognize an RTD with a compensation loop. Note The power supply, filter, first terminator, and configuration tool are typically located in the control room. Note Each segment in a F Fieldbus trunk must be ™ OUNDATION terminated at both ends. www.Emerson.com...

  • Page 11: Ground The Transmitter

    1. Connect sensor wiring shield to the transmitter housing. 2. Ensure the sensor shield is electrically isolated from surrounding fixtures that may be grounded. 3. Ground signal wiring shield at the power supply end. A. Sensor wires B. Transmitter C. Shield ground point D. 4-20 mA loop www.Emerson.com...
  • Page 12 3. Ground shield at the power supply end only. 4. Ensure the sensor shield is electrically isolated from the surrounding grounded fixtures. A. Sensor wires B. Transmitter C. Shield ground point D. 4-20 mA loop Note Connect shields together, electrically isolated from the transmitter. www.Emerson.com...
  • Page 13 3. Do not connect the signal wiring shield to the sensor wiring shield. 4. Ground the signal wiring shield at the power supply end. A. Sensor wires B. Transmitter C. Shield ground point D. 4-20 mA loop www.Emerson.com...
  • Page 14 3. Do not connect the signal wiring shield to the sensor wiring shield. 4. Ground signal wiring shield at the power supply end. A. Sensor wires B. Transmitter C. Shield ground point D. 4–20 mA loop www.Emerson.com...

  • Page 15: Verify Tagging

    (PD Tag field) is properly entered in both places on the removable commissioning tag and tear off the bottom portion for each transmitter. Note The device description loaded in the host system must be at the same revision as this device. You can download the device description from Emerson.com/Rosemount. www.Emerson.com...

  • Page 16: Transmitter Configuration

    Rosemount ships the transmitter with a temporary address of 126. To establish communication with the host, change the address to a unique value between 0 and 125. Usually, addresses 0-2 are reserved for masters or couplers; therefore Emerson recommends using transmitter addresses between 3 and 125. Note When shipped from the factory, Rosemount 644 PROFIBUS Profile 3.02 devices are defaulted in Identification Number ADAPTATION...
  • Page 17 Since the transmitter does not require linearization, this parameter will always be set to No Linearization. This means that the AI block will only apply scaling, filtering, and limit checking to the input value. www.Emerson.com...

  • Page 18: Physical Block

    Physical block The Physical Block encompasses all parameters and functions required to identify the hardware and software (revision numbers, status values, device address etc.) of the device. Use the IDENT_NUMBER_SELECTOR parameter to change how the host sees the device. www.Emerson.com...

  • Page 19: Host Integration

    - Rosemount 644 specific (rmt4053.gsd) or Profile 3.02 Generic (pa139700.gsd). These files can be found on Emerson.com/Rosemount or www.profibus.com. Configuration host (Class 2) The appropriate DD or DTM file must be installed in the configuration host. These files can be found at Emerson.com/Rosemount. www.Emerson.com...

  • Page 20: Product Certifications

    A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount. 7.2  Ordinary Location Certification As standard, the Rosemount 644 Temperature Transmitter has been...
  • Page 21 Safety and Division 2 1091070 Certificate: CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No. 25-1966, Standards: CSA Std. C22.2 No. 30-M1986, CAN/CSA-C22.2 No. 94- M91, CSA Std C22.2 No. 142-M1987, CAN/CSA-C22.2 No. 157-92, CSA Std C22.2 No. 213-M1987, C22.2 No www.Emerson.com...
  • Page 22 -60 °C to +80 °C T5…T1 Sensor Connection is where the sensor threads into the transmitter or junction box housing. 7.6.2  I1 ATEX Intrinsic Safety [Headmount HART ]: Baseefa12ATEX0101X Certificate: ® [Headmount Fieldbus/PROFIBUS ® Baseefa03ATEX0499X [Railmount HART]: BAS00ATEX1033X     www.Emerson.com...
  • Page 23 Special Conditions for Safe Use (X): 1. The Rosemount 644 Temperature Transmitter must be installed in a suitably certified enclosure such that it is afforded a degree of protection of at least IP54 in accordance with IEC 60529 and EN 60079-15. www.Emerson.com...
  • Page 24 Ex db IIC T6…T1 Gb, T6 (–60 °C ≤ T ≤ +70 °C), T5…T1 Markings: (–60 °C ≤ T ≤ +80 °C) Table 7-1 for process temperatures. Special Conditions for Safe Use (X): 1. Flameproof joints are not intended for repair. www.Emerson.com...
  • Page 25 Zone 0 environment. 2. When fitted with the Transient Protector Assembly, the equipment is not capable of withstanding the 500 V test as defined in Clause 6.3.13 of IEC 60079-11:2011. This must be taken into account during installation. www.Emerson.com...
  • Page 26 Non-Standard Paint options may cause risk from electrostatic discharge. Avoid installations that cause electrostatic build-up on painted surfaces, and only clean the painted surfaces with a damp cloth. If paint is ordered through a special option code, contact the manufacturer for more information. www.Emerson.com...
  • Page 27 Additional Specific Conditions of Use (X) when “XA” designation is ordered: 1. Guard DIN Style sensors against impacts greater than 4J. 2. The spring-loaded adapter style sensors and DIN style sensors must be installed in a thermowell to maintain Ex tb protection. www.Emerson.com...
  • Page 28 ABNT NBR IEC 60079-11. This must be taken into account during installation. 7.9  China 7.9.1  E3 China Flameproof GYJ21.1118X Certificate: GB/T 3836.1-2021, GB/T 3836.2-2021, GB/T3836.31-2021 Standards: Ex d IIC T6~T1 Gb; Ex tb IIIC T130 °C Db Markings: www.Emerson.com...
  • Page 29 ≤ +80 °C); IP66 Markings: See EM for Flameproof Markings and see IM for Intrinsic Safety Markings. Special Conditions for Safe Use (X): Refer to certificate for details regarding process and ambient temperature limits as well as Special Conditions for Safe Use. www.Emerson.com...
  • Page 30 Sensor Connection is where the sensor threads into the transmitter or junction box housing 7.11.2  I4 Japan Intrinsic Safety CML 18JPN2118X Certificate: JNIOSH-TR-46-1, JNIOSH-TR-46-6 Standards: [Fieldbus] Ex ia IIC T4 Ga (–60 °C ≤ T ≤ +60 °C); Markings: www.Emerson.com...
  • Page 31 Combination of E2 and I2 Combination of E3, I3, and N3 Combination of E5 and I5 Combination of E7, I7, N7, and NK Combination of K6, E1, and I1 Combination of K5 and K6 Combination of I5 and I6 www.Emerson.com...

  • Page 32: Additional Certifications

    Process temperature [°C] Dust transmitter installed) T130 °C 85 °C 100 °C 135 °C 200 °C 300 °C 450 °C 130 °C extension (185 °F ) (212 °F) (275 °F) (392 °F) (572 °F) (842 °F) (266 °F) length www.Emerson.com...
  • Page 33 230 °F (110 °C) Table 7-4: Service Temperature Limits Transmitter Service temperature [°C] with LCD Dust display cover T4...T1 T130 °C No extension 149 °F (65 °C) 167 °F (75 °C) 203 °F (95 °C) 203 °F (95 °C) www.Emerson.com...
  • Page 34  WARNING Additional warnings The plastic enclosure may present a potential electrostatic ignition hazard. RFID tag has limitations in ambient temperature and zone installation areas (Zones 1 & 21) as compared to the gauge. www.Emerson.com...
  • Page 35  WARNING Additional warnings The plastic enclosure may present a potential electrostatic ignition hazard. RFID tag has limitations in ambient temperature and zone installation areas (Zones 1 & 21) as compared to the gauge. www.Emerson.com...

  • Page 36: Declaration Of Conformity

    Quick Start Guide November 2024 8  Declaration of Conformity www.Emerson.com...
  • Page 37 November 2024 Quick Start Guide www.Emerson.com...
  • Page 38 Quick Start Guide November 2024 www.Emerson.com...
  • Page 39 November 2024 Quick Start Guide www.Emerson.com...

  • Page 40: China Rohs

    Quick Start Guide November 2024 9  China RoHS www.Emerson.com...
  • Page 41 November 2024 Quick Start Guide www.Emerson.com...
  • Page 42 Quick Start Guide November 2024 www.Emerson.com...
  • Page 43 November 2024 Quick Start Guide www.Emerson.com...
  • Page 44 2024 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
