RX CONTROLLER

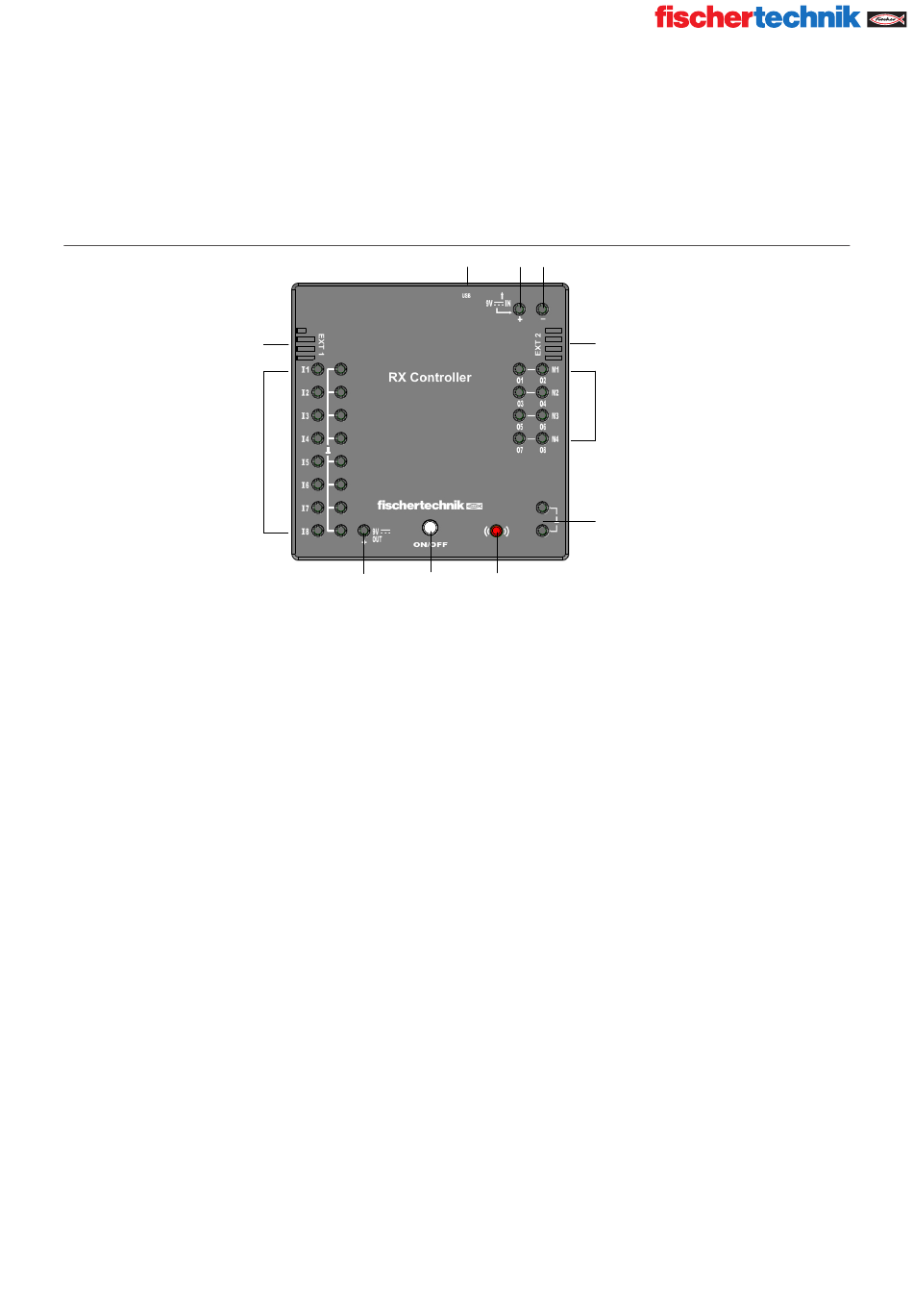

OVERVIEW OF CONNECTIONS

1 mini-USB socket
The mini-USB connection establishes the connection to the PC.
2 9V IN, DC socket (3.45mm, positive pole inside)
The power supply unit from the Power Set is connected here (not included in the scope of delivery)
3 9V IN, battery / battery pack connection
This connection enables a mobile power supply via a fischertechnik battery holder
or rechargeable battery pack.
4 EXT 1 and EXT 2 connections for I2C sensors
fischertechnik I2C sensors can be connected via these 6-pin pin headers
5 Outputs M1-M4 or O1-O8
4 motors can be connected to these outputs. Alternatively 8 LEDs
or solenoid valves, the second pole of which is connected to an earth connection .
6 2 connections for earth (negative pole)
7 Bluetooth button
Red button for activating the Bluetooth connection
8 ON/OFF button
For switching the RX Controller on and off. Indication of different
operating states via different color and flashing codes of the integrated LED
9 9V Out
Supplies sensors with the required 9V operating voltage, e.g. track sensor, ultrasonic sensor
10 Universal inputs I1-I8
Inputs for various sensors. They can be set via software for
- Digital sensors (push-buttons, reed contacts, phototransistors) - Digital 5 kΩ
- Analogue sensors 0-5kΩ (NTC resistors, photoresistors, potentiometers)
- Analogue sensors 0-10V (color sensors). Display of the value in mV (millivolts)
- Ultrasonic distance sensors. Display of the value in cm
4
10
9
2
3
1
8 7
4
5
6
03
