Summary of Contents for Trox Technik FV-EU

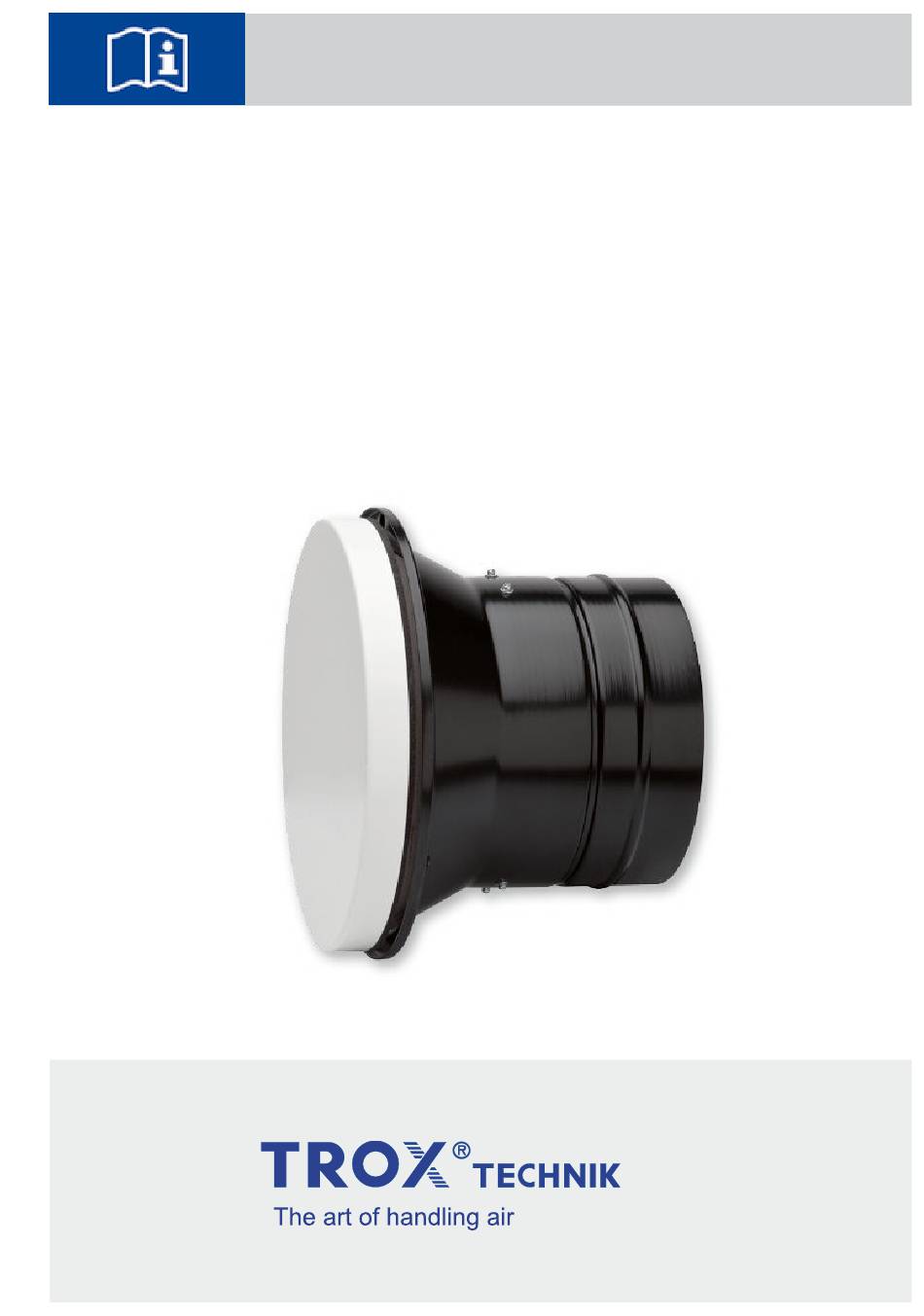

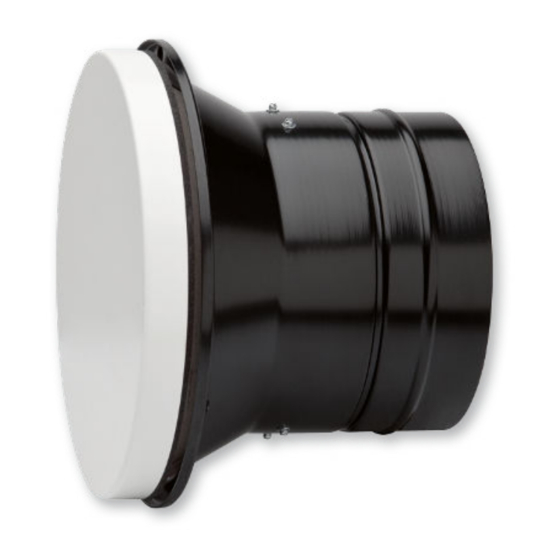

- Page 1 Assembly and operating instructions GB/en Fire protection valves Type FV-EU according to Declaration of Performance DoP / FV-EU / DE / 002 Read the instructions prior to performing any task!
- Page 2 TROX GmbH Heinrich-Trox-Platz 47504 Neukirchen-Vluyn Germany Phone: +49 2845 202-0 Fax: +49 2845 202-265 E-mail: trox-de@troxgroup.com Internet: http://www.troxtechnik.com Installation and operating instructions (translation of the original) M375DD0, 3, GB/en 06/2024 © 2015 Fire protection valves Type FV-EU...
- Page 3 To ensure that your request is processed as quickly as possible, please keep the following information ready: Product name TROX order number Delivery date Brief description of defect or issue Online www.trox.de Phone +49 2845 202-0 Fire protection valves Type FV-EU...
- Page 4 Warning – danger zone. NOTICE! Potentially hazardous situation which, if not avoided, may result in property damage. ENVIRONMENT! Environmental pollution hazard. Tips and recommendations Useful tips and recommendations as well as informa- tion for efficient and fault-free operation. Fire protection valves Type FV-EU...
-
Page 5: Table Of Contents
1.3 Qualified staff ..........6 Technical data ..........7 2.1 General data ..........7 2.2 FV-EU with fusible link ....... 8 2.3 FV-EU with fusible link, limit switch and extension piece ......... Transport and storage ........10 Structure and function ........11 Installation ............ -
Page 6: Safety
Trained personnel are individuals who have sufficient professional or technical training, knowledge and actual experience to enable them to carry out their assigned duties, understand any potential hazards related to the work under consideration, and recognise and avoid any risks involved. Fire protection valves Type FV-EU... -
Page 7: Technical Data
tions – Part 2: Fire dampers EN 1751 Ventilation for buildings – Air terminal devices Declaration of performance DoP / FV-EU / DE / 002 Rating plate Fig. 1: Rating plate (example) ① CE mark ⑥ Year of manufacture Manufacturer's address No. -
Page 8: Fv-Eu With Fusible Link
Dimensions [mm] / Weight [kg] Nominal size ØD ØD1 ØD2 Weight 2.3 FV-EU with fusible link, limit switch and extension piece Dimensions and weights Fig. 3: FV-EU with fusible link, limit switch and extension piece Fire protection valves Type FV-EU... - Page 9 Technical data FV-EU with fusible link, limit switch and extens... Dimensions [mm] / Weight [kg] Nominal size ØD ØD1 ØD2 Weight Limit switch Limit switch Connecting cable length / cross section 2 m / 3 × 0.75 mm² Protection level...
-
Page 10: Transport And Storage
Do not expose the unit to the effects of weather (not even in its packaging). Do not store the product below -40 °C or above 50 °C. Packaging Properly dispose of packaging material. Fire protection valves Type FV-EU... -
Page 11: Structure And Function
To ensure proper functioning of the fire protection valve, functional tests must be carried out in regular intervals. Ä 21 Fig. 4: FV-EU with limit switch and extension piece ① Installation subframe (subframe and fixing material are supplied as loose items) ②... -
Page 12: Installation
– Cover openings and release mechanism (e.g. with plastic foil) to protect them from mortar and dripping water. Fire protection valves Type FV-EU... -
Page 13: After Installation
Insert fire protection valve into the installation sub- frame. Ä 21 Make the electrical connection. Fig. 5: FV-EU Installation subframe ① Screw ② Installation subframe ③ Trim ring (optional), either "circular" or "square" ④ Cage nut ⑤ Wall fixing tabs, 3 x 120° staggered For mortar-based installation, an optional trim ring (cir- cular or square) is available. -
Page 14: Solid Walls
If the installation subframe is installed as the wall is being erected, the perimeter gap »s« is not required. The open spaces between the installation subframe and the wall must be closed off with mortar. Entrapped air is to be avoided. The mortar bed depth should be equal to the thickness of the wall. Fire protection valves Type FV-EU... -
Page 15: Solid Ceilings
If the fire installation subframe is installed as the ceiling slab is being completed, the perimeter gap »s« is not required. Protect the clear opening and the limit switches (if any) from contamination, e.g. with plastic foil. Fire protection valves Type FV-EU... -
Page 16: Lightweight Partition Walls With Metal Support Structure And Cladding On Both Sides
Option Ⓐ: Provide the installation opening in the metal support structure with support sections. – Option Ⓑ: After cladding the wall, create a square wall opening and brace it with a perimeter metal section. Fire protection valves Type FV-EU... -
Page 17: Mortar-Based Installation
(If a trim ring is used, screw it to the lightweight partition wall.) If the wall thickness is >115 mm , extend the fire protection valve on the installation side with an extension piece or a spiral duct. Close off the perimeter gap »s« with mortar. Fire protection valves Type FV-EU... - Page 18 Installation Lightweight partition walls with metal support s... > Mortar-based installation Ä Chapter 8 ‘Func- Once the mortar has cured, insert the fire protection valve into the installation subframe tional test’ on page 21 . Fire protection valves Type FV-EU...
-
Page 19: Connecting The Air Duct
Air ducts of combustible or non-combustible materials may be connected to fire protection valves. 6.4 Flexible connectors 6.2 Limiting duct expansion Flexible connectors Fig. 11: FV-EU with a flexible connector ① FV-EU ② Flexible connector ③ Air duct Ⓐ Installation side Ⓑ... -
Page 20: Make Electrical Connections
Indicator lights or relays may be connected as long as the performance specifications are taken into consideration. Connection Limit Valve posi- Electric cir- type switch tion cuit Ⓐ NC con- not actuated CLOSED or closed tact OPEN posi- tion is not reached Fire protection valves Type FV-EU... -
Page 21: Functional Test
Fig. 13: Removing the fire protection valve Release the fire protection valve ② by turning it Fig. 15: Opening the FV-EU anti-clockwise (bayonet fixing). Attach the fusible link ⑥ to the wire eyelet ⑦. Pull the fire protection valve forwards, out of the installation subframe ①. - Page 22 Functional test For variants with limit switches, note the installa- tion marks. Fire protection valves Type FV-EU...
-
Page 23: Commissioning
Fire protection valves in CLOSED position Fire protection valves which closed during normal operation of the ventilation system must be inspected before opening again, in order to ensure Ä ‘Inspection’ on page 24 . their correct function Fire protection valves Type FV-EU... -
Page 24: Maintenance
Insert the fire protection valve into the installation Maintenance Ä 21 . subframe Fire protection valves are maintenance-free with regard to wear an tear, but must still be included in the regular cleaning of the ventilation system. Fire protection valves Type FV-EU... -
Page 25: Inspection And Repair Measures
C = as required, depending on the degree of contamination Maintenance work Inspection point Description of the target condition – Measures to achieve the target condition Fire protection valves Type FV-EU... -
Page 26: Decommissioning, Removal And Disposal
Switch off the power supply before working on any electrical equipment. Disconnect the connecting cable. Remove the air ducts. Remove the fire protection valve from the installa- tion subframe. Disposal ENVIRONMENT! Dispose of electronic components according to the local electronic waste regulations. Fire protection valves Type FV-EU... -
Page 27: Index
Fusible link..............11 Valve disc..............Inspection............24 , 25 Installation situations..........12 Warranty claims............3 Installation subframe..........Weight................. 8 Weights............... Lightweight partition walls with metal support structure and cladding on both sides......Limitation of liability............. 3 Fire protection valves Type FV-EU... - Page 28 TROX GmbH Phone: +49 2845 202-0 Heinrich-Trox-Platz +49 2845 202-265 47504 Neukirchen-Vluyn E-mail: trox-de@troxgroup.com Germany http://www.troxtechnik.com © 2015...
