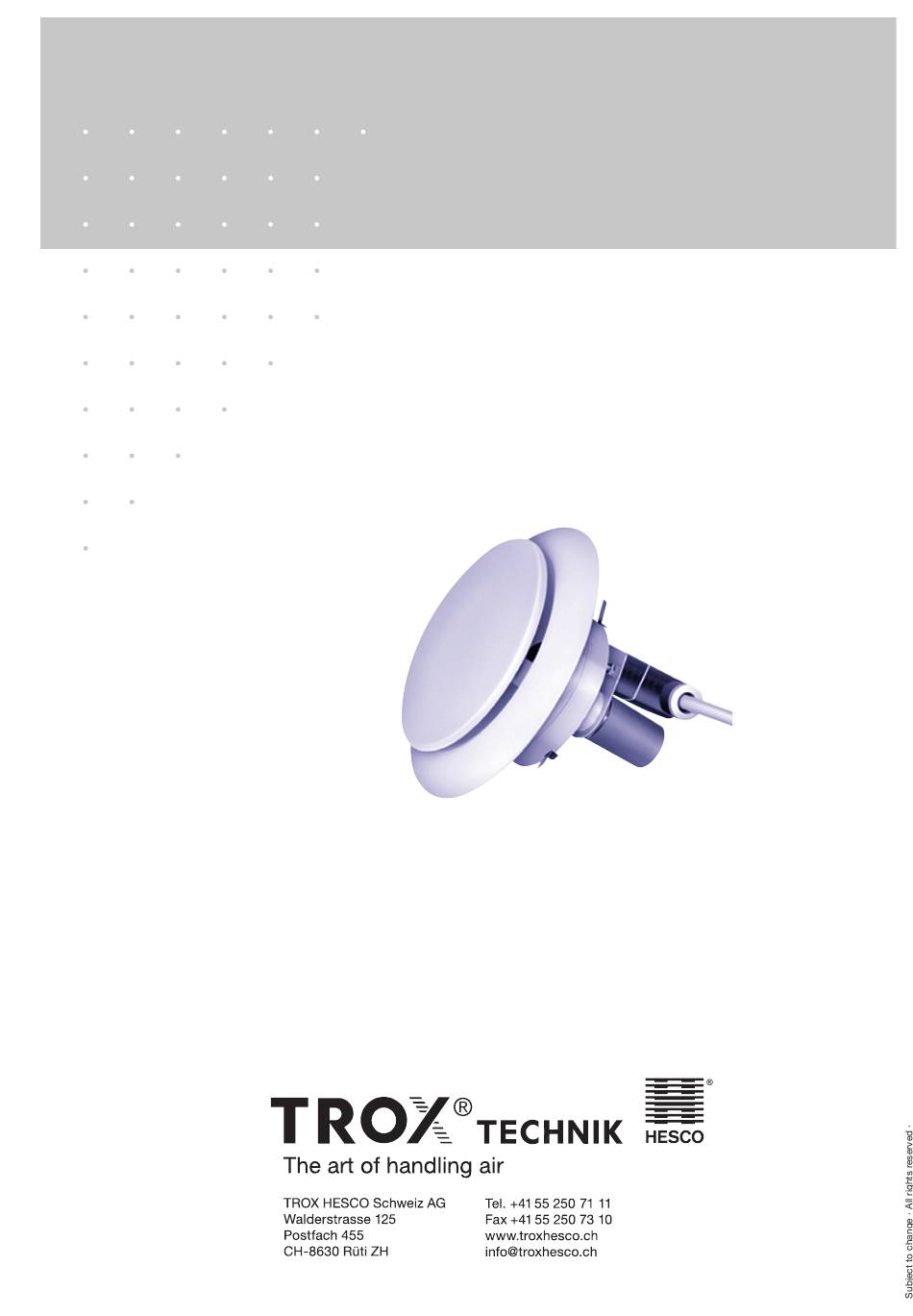

  • Page 1 L-50-7-02e Installation manual Automatic exhaust valve Type ATVC-100...

  • Page 2: Table Of Contents

    Installation manual for automatic exhaust valve ATVC-100 Contents 1. General information This installation manual describes the automatic exhaust valve 1. General information type: ATVC-100 2. Safety and correct use General safety notes To ensure correct functioning of the automatic exhaust valve,...

  • Page 3: Safety And Correct Use

    Installation manual for automatic exhaust valve ATVC-100 2. Safety and correct use General safety notes WARNUNG! VORSICHT! Verletzungsgefahr an scharfen Kanten, Graten, spitzen Gefahr durch Fehlgebrauch! Fehlgebrauch des Produktes kann zu gefährlichen Situationen führen. Ecken und dünnwandigen Blechteilen! Das Produkt darf nicht eingesetzt werden: –...

  • Page 4: Standards And Guidelines

    - Unauthorised modifications The ATVC-100 can be installed in new buildings and in refur- bishment projects. The actual supply package may differ from the information in this manual for special versions, additional order options or as a result of recent technical changes.

  • Page 5: Transport, Storage And Packaging

    Installation manual for automatic exhaust valve ATVC-100 3. Transport, storage and packaging Delivery check Upon delivery, carefully remove the packaging and check the unit for transport damage and completeness. In case of any damage or an incomplete shipment, contact the shipping com- pany and the supplier immediately.

  • Page 6: Product Description

    Installation manual for automatic exhaust valve ATVC-100 4. Product description Brief description The automatic exhaust valve is an exhaust air device control- led by an electric external power supply. It is normally closed or only slightly open to enable a basic volume flow rate. Air is only extracted at a higher operating volume flow rate when the corresponding switch contact is closed.

  • Page 7: Installation / Commissioning

    Installation manual for automatic exhaust valve ATVC-100 6. Installation / commissioning Example (as plotted) Given: Device selection - Stat. pressure drop p = 40 Pa The exhaust valve is determined by the following data: - Operating volume flow rate V = 80 m - Stat.

  • Page 8: Setting The Basic Volume Flow Rate

    Installation manual for automatic exhaust valve ATVC-100 Setting the basic air volume flow rate V0 The automatic exhaust valve is delivered ex-works in a closed condition (basic volume flow rate V0 = m3/h). If a basic volume flow rate is required, this must be set as follows:...

  • Page 9: Assembly

    Installation manual for automatic exhaust valve ATVC-100 Assembly Connection diagram Once the required volume flow rate has been set and the electric connection has been completed, the automatic exhaust valve can be inserted into the appropriate opening so that the casing is flush with the wall.

  • Page 10: Maintenance

    Installation manual for automatic exhaust valve ATVC-100 8. Maintenance GEFAHR! Stromschlag beim Berühren spannungsführender Teile. Elektrische Ausrüstungen stehen unter gefährlicher elektrischer Spannung. Nichtbeachtung kann Tod, schwere Körperschäden oder Sachschaden verursachen! – An den elektrischen Komponenten dürfen nur Elektrofachkräfte arbeiten. –...
