FMS-A
LØV-R
Monitoring and control of fire dampers
• Complete control cabinet for fire dampers
• Monitoring up to nine fire dampers
• Timer for programming of exercising
TROX Auranor Norge AS
PO Box 100
NO-2712 Brandbu
GB0305
03.18
Telephone +47 61 31 35 00
Fax
+47 61 31 35 10
e-mail: firmapost@auranor.no
www.trox.no
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Trox Technik Auranor FMS-A
Summary of Contents for Trox Technik Auranor FMS-A
- Page 1 GB0305 03.18 FMS-A LØV-R Monitoring and control of fire dampers • Complete control cabinet for fire dampers • Monitoring up to nine fire dampers • Timer for programming of exercising TROX Auranor Norge AS Telephone +47 61 31 35 00 +47 61 31 35 10 PO Box 100 e-mail: firmapost@auranor.no NO-2712 Brandbu www.trox.no...

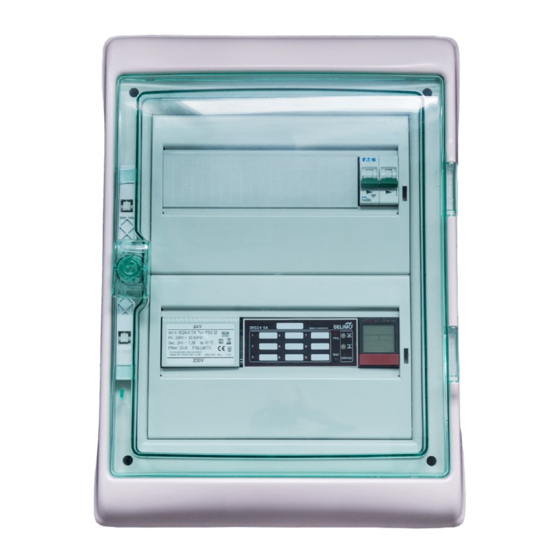

- Page 2 FMS-A MATERIAL AND SURFACE COATING APPLICATION The control cabinet is made of plastic with DIN-rails of zinc-coated FMS-A is an analog control and monitoring unit for fire dampers. steel. It is possible to connect up to nine fire dampers in one cabinet. The control cabinet is suitable for small and medium-sized facilities where bus connections is not necessary. DIMENSION AND WEIGHT, FMS-A Dimension: 310mm x 427mm x 151mm (W x H x D) Weight: ca 4,2 kg FUNCTION FMS-a has input for nine fire dampers. It communicates with the dampers via a BKN230-24, transformer and communication device, ORDER CODE, FMS-A as is mounted on each fire damper. There are quick connections on the damper motor for connecting to BKN230-24. Between FMS-A and the BKN230-24 a twin conductor is used for the communication. See FMS-A wiring diagram, figure 1. FMS-A monitors and controls the fire dampers, and performs exercise Product: to desired intervals, with BKS24-9A and a programable timer. Data sheet with programming instructions is available on our website: Example: www.trox.no FMS-A Explanation: Control cabinet FMS-A complete DESIGN FMS-A consists of a protection class II cabinet and IP54 protec- INSTALLATION tion wich contains trafo 230/24, 30 VA, circuit breaker, 10 A, Belimo Mechanical installation BKS24-9A, timer type Müller SC 28.11 pro and terminal blocks FMS-A attaches directly to the wall with four screws,...
