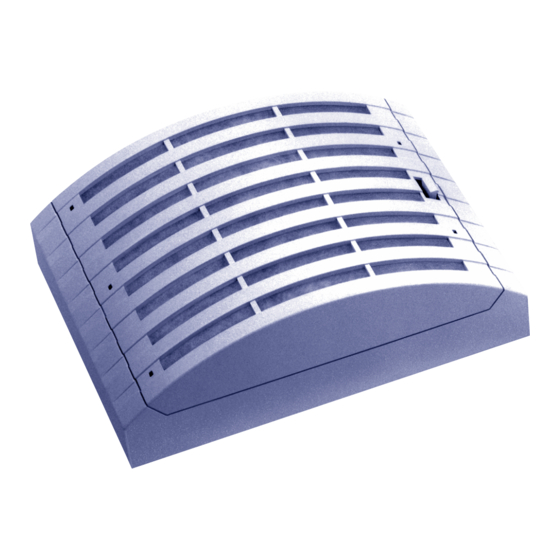

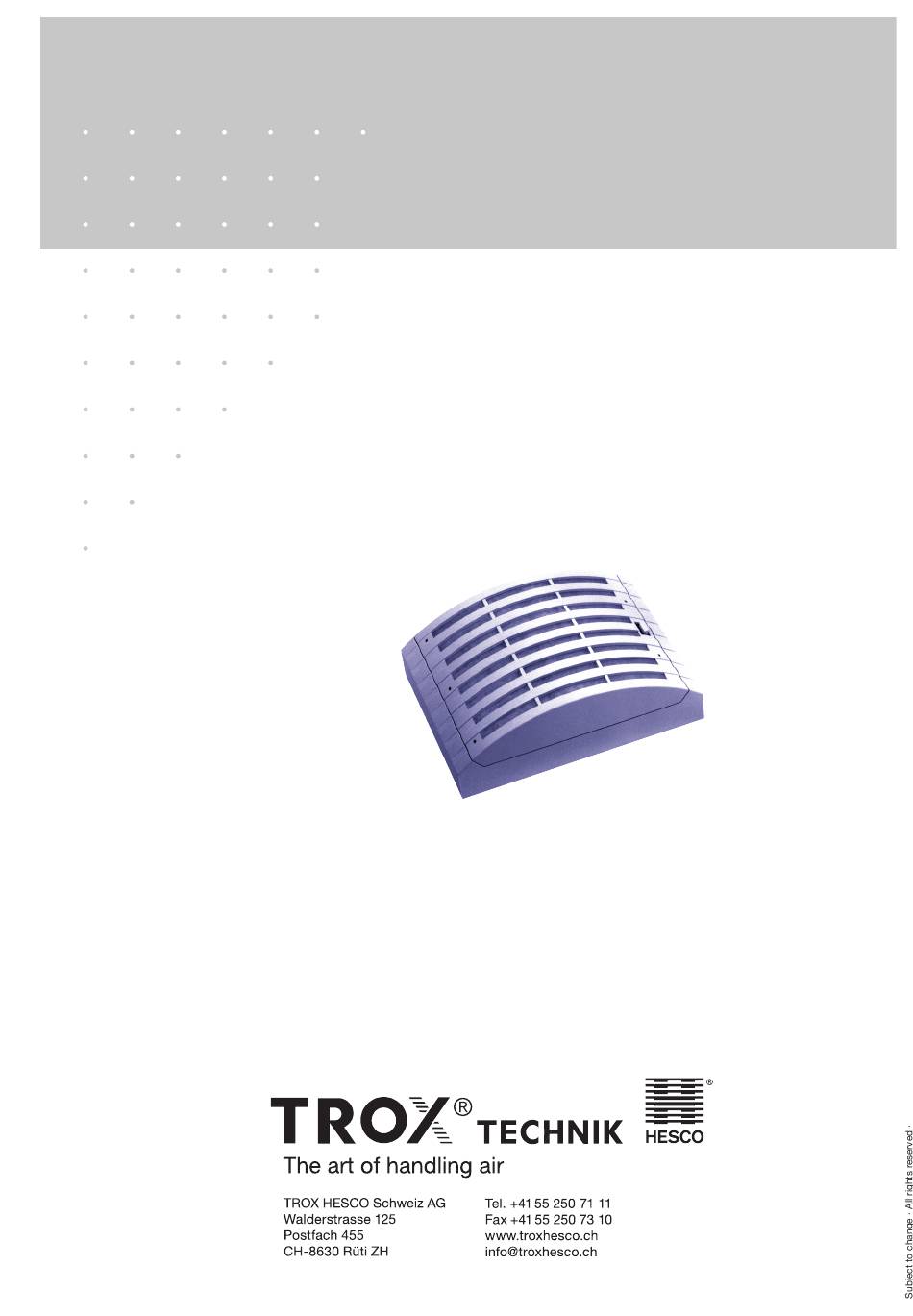

- Page 1 L-50-6-01e Installation manual Automatic extract air valve Type HFA...
-
Page 2: Table Of Contents
Installation manual for automatic extract air valve Contents 1. General information This installation manual describes the automatic extract air 1. General information valve type: 2. Safety and correct use General safety notes Standards and guidelines To ensure correct functioning of the automatic extract air valve, Repair and replacement parts it is essential to read the provided installation manual before Environmental protection / disposal... -
Page 3: Safety And Correct Use
Installation manual for automatic extract air valve 2. Safety and correct use General safety notes WARNUNG! VORSICHT! Verletzungsgefahr an scharfen Kanten, Graten, spitzen Gefahr durch Fehlgebrauch! Fehlgebrauch des Produktes kann zu gefährlichen Situationen führen. Ecken und dünnwandigen Blechteilen! Das Produkt darf nicht eingesetzt werden: –... -
Page 4: Standards And Guidelines
Installation manual for automatic extract air valve Standards and guidelines For all work on the automatic extract air valve, the following The appropriate protective equipment for a job must be worn for as long as the job takes. provisions and guidelines among others must be observed - Product Safety Law (PrSG) - EKAS provisions Industrial safety helmet... -
Page 5: Transport, Storage And Packaging
Installation manual for automatic extract air valve 3. Transport, storage and packaging Delivery check Upon delivery, carefully remove the packaging and check the unit for transport damage and completeness. In case of any damage or an incomplete shipment, contact the shipping com- pany and your supplier immediately. -
Page 6: Product Description
Installation manual for automatic extract air valve - Depending on the building, heating energy 4. product description can be reduced by 10 – 30% in terms of total consumption. Functional description - The heating system can be designed to smaller dimensions. The automatic extract air valve HFA works with two volume - The automatic extract air valve HFA is suitable for use in all flow rates:... -
Page 7: Technical Data
Installation manual for automatic extract air valve 5. Technical data Dimensions Length: 240 mm Width: 163 mm Height: 84 mm Basic volume flow rate that can be selected depending on the negative pressu- Approx. 7-30m3/h re and number of remaining plugs Required volume flow rate that can be set depending on the negative pressu-... -
Page 8: On-Site Precautions
Installation manual for automatic extract air valve On-site precautions 1 Recess for HFA connection in frame wall It must be possible to disconnect the unit from the mains after installation, unless the unit is equipped with a switch to 24.3. This can be done by making the plug accessible or by fitting a switch into the fixed installation in compliance with the installa- tion regulations. -
Page 9: Commissioning
Installation manual for automatic extract air valve 8. Commissioning Setting the volume flow rates Selecting the basic volume flow rate of the automatic extract air valve The basic volume flow rate can be increased by removing the plastic plugs (from position 0 to position 1, 2, 3 or 4). This can particularly be required in large rooms. -
Page 10: Maintenance
Installation manual for automatic extract air valve 9. Maintenance GEFAHR! Stromschlag beim Berühren spannungsführender Teile. Elektrische Ausrüstungen stehen unter gefährlicher elektrischer Spannung. Nichtbeachtung kann Tod, schwere Körperschäden oder Sachschaden verursachen! – An den elektrischen Komponenten dürfen nur Elektrofachkräfte arbeiten. – Vor Arbeiten an der Elektrik die Versorgungs- spannung ausschalten.
