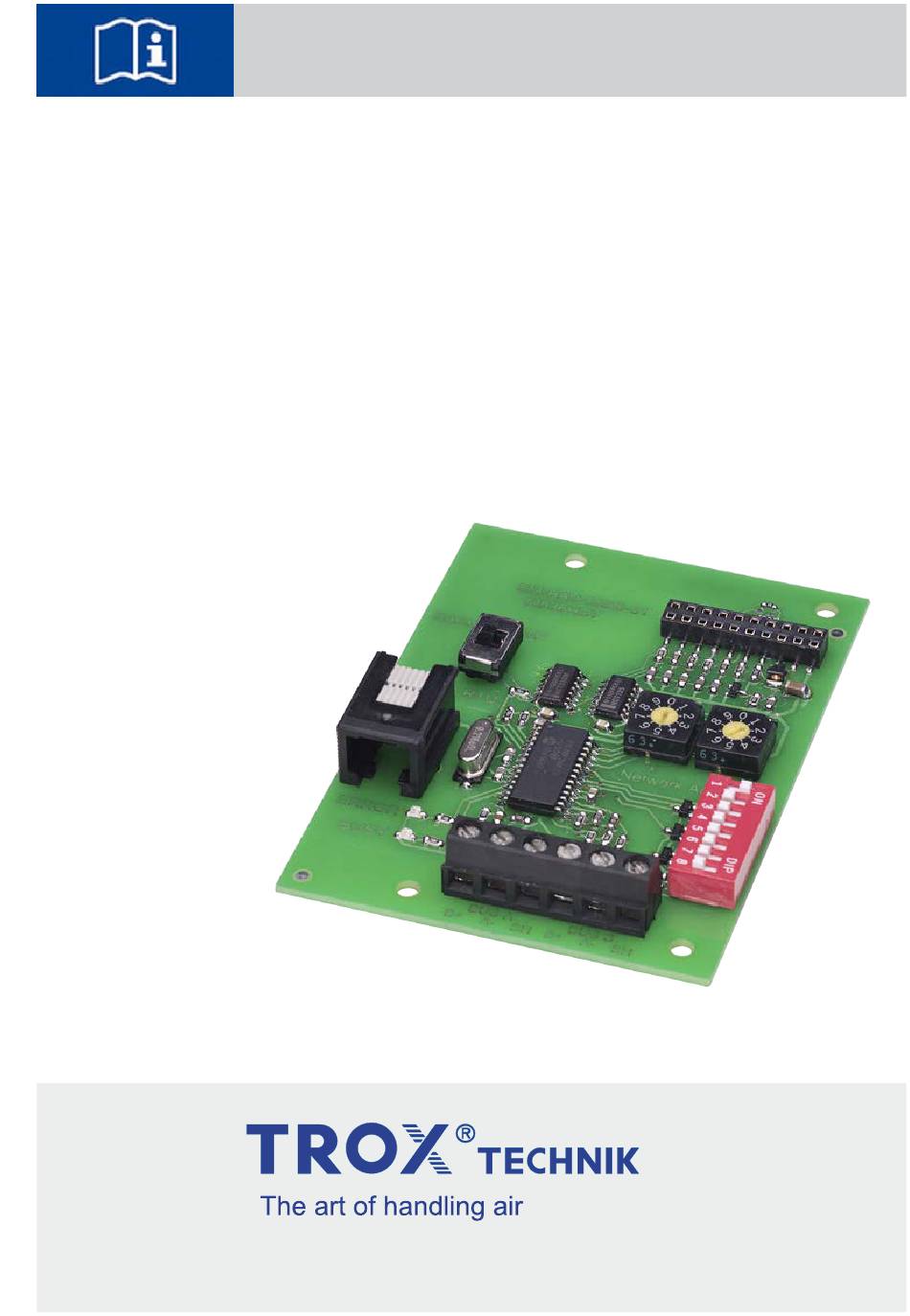

- Page 1 Installation manual GB/en Expansion module EM-BAC-MOD-01 BACnet MS/TP or Modbus RTU interface card for EASYLAB Controller TCU3 and adapter module TAM Firmware from 4.1...
- Page 2 TROX GmbH Heinrich-Trox-Platz 47504 Neukirchen-Vluyn Germany Telephone: +49 2845 202-0 Fax: +49 2845 202 265 email: trox@trox.de Internet: www.troxtechnik.com Translation of the original M375EW4, 3, GB/en 06/2019 © TROX GmbH 2017 Expansion module EM-BAC-MOD-01...
-
Page 3: Table Of Contents
Carrying the expansion module....10 Storage ............. 10 Installation..........11 Configuration........... 13 Commissioning........15 Required TCU3 software version ....15 Interface information....... 15 Removal and disposal......16 Safety notes regarding removal and dis- posal............16 Removal............. 16 Disposal............. 16 Expansion module EM-BAC-MOD-01... -
Page 4: Important Notes
Section VI, Warranty Claims, of the Delivery and see www.troxtechnik.com Payment Terms of TROX GmbH. Documentation for EASYLAB controller TCU3 The Delivery and Payment Terms of TROX GmbH or adapter module TAM are available at www.troxtechnik.com. Project-specific wiring documents, if any Expansion module EM-BAC-MOD-01... -
Page 5: Security
EASYLAB base components as well as for the TROX UNIVERSAL CONTROLLER. Use the expansion module for the following devices: EASYLAB controller TCU3 This symbol marks all equipotential bonding con- EASYLAB adapter module TAM nection points on EM-BAC-MOD. TROX UNIVERSAL CONTROLLER Expansion module EM-BAC-MOD-01... -
Page 6: Residual Risks
– Let EM-BAC-MOD warm up to room temper- knowledge and experience described below: ature before you install it. Network administrator Network administrators design, install, configure and maintain the IT infrastructure in companies or organisations. Expansion module EM-BAC-MOD-01... -
Page 7: Environmental Protection
These parts have to be disposed of separately from other waste, i.e. taken to your local reuse and recycling centre or disposed Fig. 1: EM-BAC-MOD-01 of by a specialist disposal company. ① Switch to select BACNet MS/TP or Modbus... -
Page 8: Functional Description
Structure and functional description Functional description When used on a fume cupboard controller, room controller or adapter module (TAM), the expansion Expansion module EM-BAC-MOD-01 provides the module provides an interface to access data for the EASYLAB base components (controller TCU3 or controller. -
Page 9: Technical Data
6 terminals for cable cross sections of 0.12 – 1.5 mm² (B+, A- and shielding, two of each) Ä on page 11 Displays Ä ‘Status LEDs ’ on page 7 Two indicator lights, BUSY and ERROR Expansion module EM-BAC-MOD-01... -
Page 10: Delivery And Storage
Storage temperature: -10 °C to +70 °C. Relative humidity: < 90 %, no condensation. If a product has to be stored for more than 3 months, regularly check the general condi- tion of all parts and of the packaging. Expansion module EM-BAC-MOD-01... -
Page 11: Installation
Switch off the supply voltage to the TCU3 controller or TAM adapter module and secure it against being switched on acciden- tally. Then open the cover of the TCU3 or TAM casing (see instructions for the respec- tive device). Expansion module EM-BAC-MOD-01... - Page 12 ④ SH (shield) EM-BAC-MOD has terminals for two data cables of an EIA-485 network. Strip the insulation from the bus cable (at least two wires), insert the bare wires into the terminals and tighten the screws by hand. Expansion module EM-BAC-MOD-01...
-
Page 13: Configuration
38400 Bd Setting the network address 57600 Bd Use the two address code switches X and Y Setting parity ② to set a network address (01 to 99). Address 00 is reserved for broadcast mode. Parity None None Expansion module EM-BAC-MOD-01... - Page 14 Configuration Parity Even Terminal resistor for EIA-485 network from rev. 2 Terminal resistor Disabled Enabled Expansion module EM-BAC-MOD-01...
-
Page 15: Commissioning
You need not adapt the controller configuration with the EasyConnect configuration software for the expansion module to work. Interface information For a description of all BACnet and Modbus inter- face data points refer to the configuration manual for EM-BAC-MOD. Expansion module EM-BAC-MOD-01... -
Page 16: Removal And Disposal
Have electronic waste and electronic com- ponents disposed of by an approved spe- cialist disposal company. – If you are not sure how to dispose of any- thing in an environmentally friendly manner, contact your local authorities or a specialist disposal company. Expansion module EM-BAC-MOD-01...
