Product overview
2
1

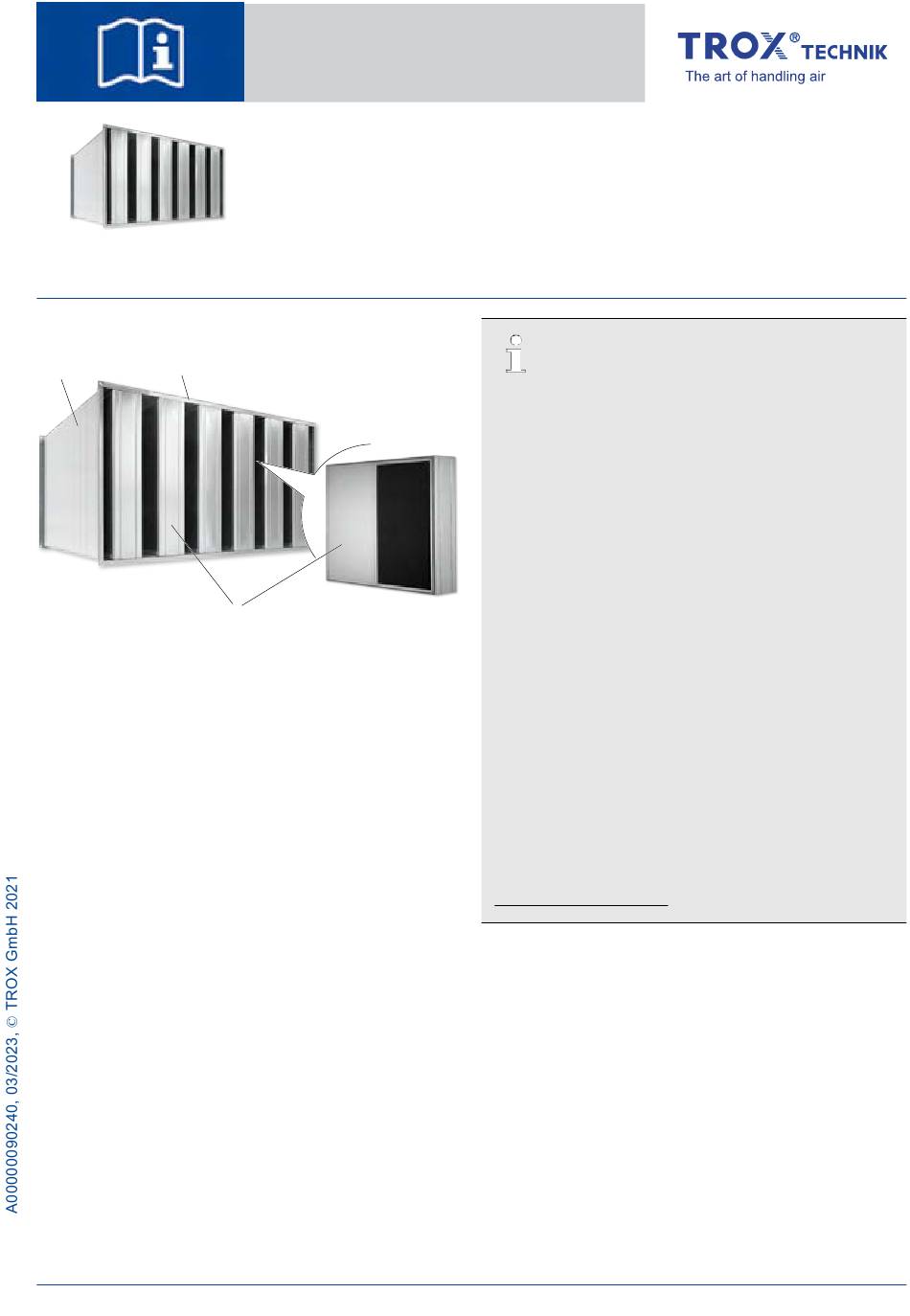

Fig. 1: Schematic illustration of MS and MK
1 Sound attenuator casing MS
2 Connecting subframe
3 Splitter MK
Important notes
Safety
Correct use
Splitter sound attenuators and sound attenuator
splitters are used for the reduction of fan noise
and air-regenerated noise in ventilation and air con-
ditioning systems, for example in air handling units
or ducts.
Installation manual
Splitter sound
attenuator
XS / MS / XK / MK / RK
3
Splitter sound attenuator XS / MS / XK / MK / RK
GB/en
Use in areas with potentially explo-
sive atmospheres according to EU Directive
2014/34/EU (ATEX)
Splitter sound attenuators XS and MS as well
as sound attenuator splitters XK, MK and RK
may be used in zone 1 and 2 areas as well
as in zone 21 and 22 (outside) areas with poten-
tially explosive atmospheres according to Direc-
tive 1999/92/EC.
Please note:
– Max. operating temperature 100 °C
– Max. airflow velocity 20 m/s
– Make an electrical connection between the
splitter and the casing.
– Connect the splitter sound attenuator to the
earth.
– Clean sound attenuators and splitters regu-
larly to prevent accumulated dust.
– Clean attenuators and splitters in such a
way that no electrostatic charge builds up.
Manufacturer's statement
www.troxtechnik.com.
TROX GmbH
Heinrich-Trox-Platz
47504 Neukirchen-Vluyn
Germany
+49 (0) 2845 2020
+49 (0) 2845 202265
E-mail: trox@trox.de
www.trox.de
