TRASSIR TR-D8351WDIR4 Manual

Specification
Model TR-D8351WDIR4
Image sensor 1/2.7" CMOS 5МP
Resolution 5MP(2592x1920) 4MP(2560x1440)
3MP(2304x1280) 2MP(1920x1080)
Frame rate 50Hz: 5MP@25fps
60Hz: 5MP@30fps
Electronic shutter speed 1/2 ~ 1/1 000 s
Day/Night mode Mechanical ICR
Sensitivity 0.003Lux (F1.3)
IR range
up to 40 m
Lens (mm)
Field of view (horiz./vert.)
2.8mm: 99˚±5˚ / 72˚±5˚
3.6mm: 79˚±5˚ / 60˚±5˚
Axes setting Pan: 0˚-360˚
Tilt: 0˚-90˚
Rotation: 0˚-360˚
WDR Real WDR (120dB)
Digital noise reduction
Video compression Н.265+ / Н.265 / H.264
Bitrate up to 8Mbps
Local storage MicroSD up to 256GB
Audio Built-in microphone
Audioinput / Audiooutput
Alarm inputs/outputs
Corridor mode
IVS
RTC
Power supply PoE (802.3af) / 12V DC
PoE Class
Power consumption DC: 5.4W
PoE: 6.0W
Case material
Dimensions (mm) Ø93 x 92.2
Weight Net/Gross (g) 400 / 490
Protection IP67, IK10
Power surge TVS 4000V
suppressor
Working temperature
-40°C ... +60°C
Cold start
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
2.8 / 3.6
3D DNR
1 / 1
Yes
Yes
No
0
Metal
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
-40°C

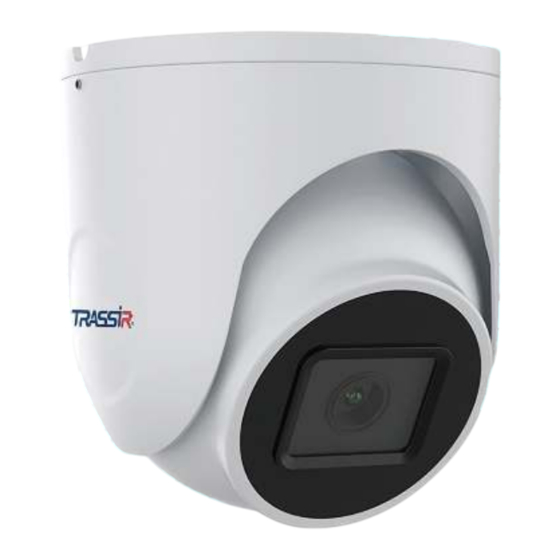

TR-D8351WDIR4
Outdoor IR Eyeball Network Camera
IK10
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
