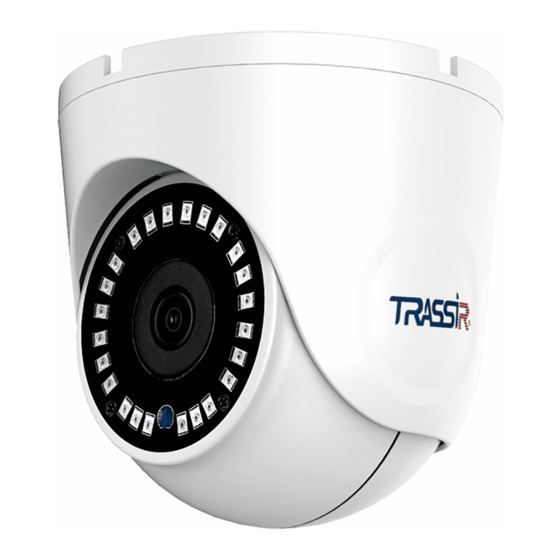

TRASSIR TR-D8151IR2 Passport

TRASSIR TR-D8151IR2 Passport

Outdoor ir
Hide thumbs Also See for TR-D8151IR2:

Advertisement

Quick Links

Specification
Model
TR-D8151IR2
Image sensor
1/2.8" CMOS 5Мп
Resolution
5MP(2592x1944)
4MP(2592x1520)
3MP(2304x1296)
Frame rate
5MP@15fps
4MP@20fps
3MP@25fps
Electronic Shutter Speed
1/2 ~ 1/1 000 c
Day/Night Mode
Mechanical ICR
Sensitivity
0.003Lux (F1.8)
IR range
up to 25 m
Lens (mm)
Field of view (horiz./vert.)
2.8mm: 102˚±5˚ / 72˚±5˚
3.6mm: 83˚±5˚ / 60˚±5˚
WDR
Real WDR (120dB)
Digital noise reduction
Video compression
Н.265 / H.264
Bitrate
up to 8Mbps
Local storage
MicroSD up to 128Gb
Audio
Built-in microphone
Corridor mode
IVS
Human Detection
Line Crossing
Intrusion Detection
RTC
Power supply
PoE (802.3af) / 12V DC
Class PoE
Power consumption
DC: 3.6W
PoE: 4.8W
Case material
Dimensions (mm)
Ø92.8 x 92.2
Weight Net/Gross (g)
380 / 480
Ingress protection
IP66, IK10
Lighting protection
TVS 4000V
Working temperature
-40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
2.8 / 3.6
3D DNR
Yes
No
3
Metall
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
TR-D8151IR2
Outdoor IR Network Camera
H.265
HEVC
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
