Specification
Model
TR-D8281WDIR4
Image sensor
1/2.8" CMOS 8МP
Resolution
8MP(3840x2160)
Frame rate
8MP@20fps (WDR off)
8MP@15fps (WDR on)
Electronic shutter speed
1/3 ~ 1/10 000 s
Day/Night mode
Mechanical ICR
Sensitivity
0.005Lux (F1.8)
IR range
up to 40 m
Lens (mm)
Field of view (horiz./vert.)
106˚ / 58˚
Axes setting
Pan: 0˚-360˚
Tilt: 0˚-90˚
Rotation: 0˚-360˚
WDR
Real WDR (120dB)
Digital noise reduction
Video compression
Н.265+ / Н.265 / H.264+ / H.264
Bitrate
up to 13Mbps
Local storage
MicroSD up to 128GB
Audio
Built-in microphone
AudioIn / AudioOut
Alarm In/Out
Corridor mode
IVS
Power supply
PoE (802.3af) / 12V DC
PoE Class
Power consumption
DC: 7.1W
PoE: 7.3W
Case material
Dimensions (mm)
Ø103.5 x 82.4
Weight Net/Gross (g)
330 / 383
Protection
Power surge
TVS 6000V
suppressor
Working temperature
-40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
2.8
3D DNR
1 / 1
Yes
Yes
0
Metal
IP67
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
TR-D8281WDIR4

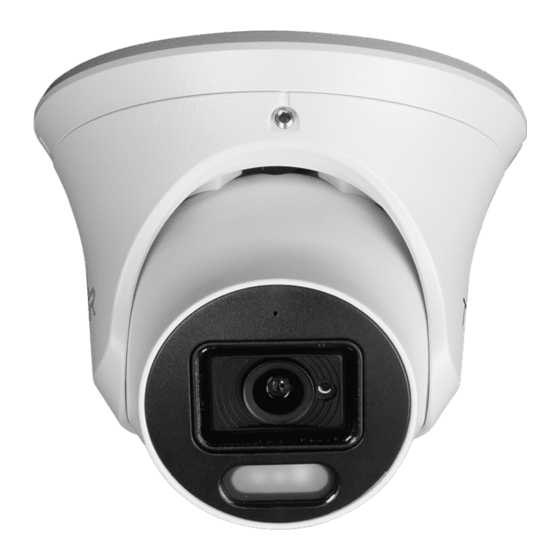

Outdoor IR Network Camera
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TRASSIR TR-D8281WDIR4
Summary of Contents for TRASSIR TR-D8281WDIR4
- Page 1 Weight Net/Gross (g) 330 / 383 Protection IP67 Power surge TVS 6000V Data ___________________________ Stamp ___________________________ suppressor Working temperature -40°C … +60°C Here is the confirmation form for warranty assurance Note: read user manual before using Website: www.trassir.com For any inquiry: info@trassir.com...
- Page 2 * MicroSD Card is not included into camera package ** With option of object type filtering (person, vehicle) 3. Change IP camera settings using TRASSIR professional software. ∅69,2 Camera package You can find detailed camera settings instructions in User Manual that can be downloaded from trassir.com.
