Specification
Model
TR-D8251WDC
Image sensor
1/2.7" CMOS 5MP
Resolution
5MP(2880x1632)
Frame rate
5MP@25fps
Electronic shutter speed
1/2 ~ 1/1 000 s
Day/Night mode
Sensitivity
0.0015Lux (F1.0)
Lens (mm)
Field of view (horiz./vert.)
2.8mm: 101˚ / 58˚
4.0mm: 87˚ / 46˚
Axes setting
Pan: 0˚-360˚
Tilt: 0˚-90˚
Rotation: 0˚-360˚
WDR
Real WDR (120dB)
Digital noise reduction
Video compression
Н.265+ / Н.265 / H.264
Bitrate
up to 8Mbps
Local storage
MicroSD up to 128GB
Audio
Built-in microphone
1 in / 1 out
Alarm In / Out
Corridor mode
IVS
Power supply
PoE (802.3af) / 12V DC
PoE Class
Power consumption
DC: 1.8W
PoE: 2.4W
Case material
Dimensions (mm)
Ø93 x 92.2
Weight Net/Gross (g)
400 / 490
Protection
IP66, IK10
Power surge
TVS 4000V
suppressor
Working temperature
-40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
FTC
2.8 / 4.0
3D DNR
1 / 1
Yes
Yes
0
Metal
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance

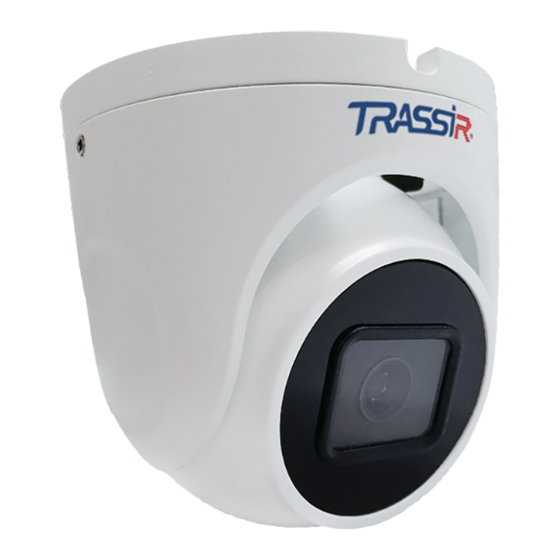

TR-D8251WDC
Outdoor Full Time Color Camera
Full Time
Color
IK10
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TRASSIR TR-D8251WDC
Summary of Contents for TRASSIR TR-D8251WDC
- Page 1 IP66, IK10 Power surge TVS 4000V Full Time Color suppressor Data ___________________________ Stamp ___________________________ IK10 Working temperature -40°C … +60°C Here is the confirmation form for warranty assurance Note: read user manual before using Website: www.trassir.com For any inquiry: info@trassir.com...
- Page 2 Reset Micro SD be downloaded from www.trassir.com. 3. Change IP camera settings using TRASSIR professional software. Camera package You can find detailed camera settings instructions in User Manual that 1. IP camera ..........1 pc.
