IES2220 Series
Unmanaged Industrial Ethernet
Switch Quick Installation Guide
3onedata Co., Ltd.
Address:
3/B, Zone 1, Baiwangxin High Technology
Industrial
Park,
Xili,
Shenzhen
www.3onedata.com
Website:
+86 0755-26702688
Tel:
+86 0755-26703485
Fax:
Package Checklist
Please check whether the package and accessories are
intact while using the switch for the first time.
1. Industrial Ethernet switch 2. Certification
3. DIN-Rail mounting attachment 4. Warranty card
If any of these items are damaged or lost, please contact
our company or dealers, we will solve it ASAP.
Product Overview
This series are unmanaged DIN-Rail industrial
Ethernet switches.
For convenience, the products of this
series adopt the following number on the left in this guide,
please confirm the number of your product:
Model I. IES2220-16T4GS-2P48 (16 100M copper ports +
4 Gigabit SFP slots + 2 48VDC power supplies)
Model II. IES2220-16P4GS-2P48-120W (16 100M PoE
copper ports + 4 Gigabit SFP slots + 2 48VDC
power supplies + 120W PoE power)
Model III. IES2220-16P4GS-2P48-200W (16 100M PoE
copper ports + 4 Gigabit SFP slots + 2 48VDC
power supplies + 200W PoE power)
Model IV. IES2220-16P4GS-2P24-120W (16 100M PoE
copper ports + 4 Gigabit SFP slots +2 24VDC
power supplies +120W PoE power)
Model V. IES2220-8T8P4GS-2P48-120W (8 100M copper
ports + 8 100M PoE copper ports + 4 Gigabit
SFP slots + 2 48VDC power supplies +120W
PoE power)
Model VI. IES2220-8T8P4GS-2P48-200W (8 100M
copper ports + 8 100M PoE copper ports + 4
Gigabit SFP slots + 2 48VDC power supplies +
200W PoE power)
Model VII. IES2220-8T8P4GS-2P24-120W (8 100M
copper ports + 8 100M PoE copper ports + 4
Nanshan
District,
Gigabit SFP slots + 2 24VDC power supplies +
120W PoE power)
1.

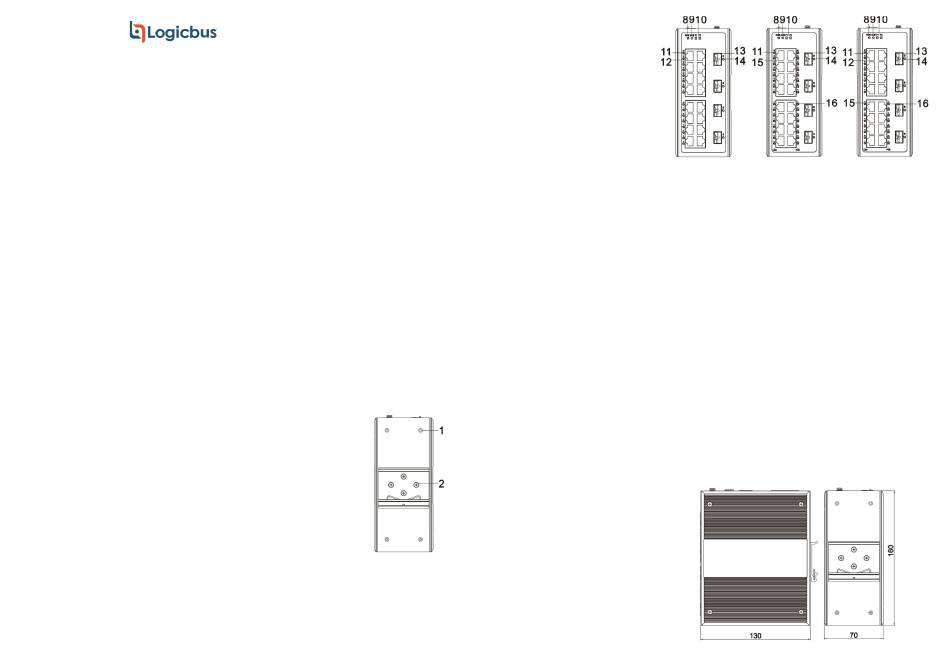

Panel Design
Rear view, Bottom view and Top view
Front view
Model I Model III, IV, V Model VI, VII, VIII 1. Wall-
mounting location hole
2. DIN-Rail mounting kit
3. DC power input terminal
4. Relay alarm output terminal
5. Console port (reserved)
6. DIP switch (reserved)
7. Grounding screw
8. Device running indicator RUN
9. Relay alarm indicator ALM
10. Power input status indicator P1/P2
11. 100M copper port connection indicator
12. 100M copper port
13. Gigabit SFP slot
14. Gigabit SFP connection indicator
15. 100M PoE port
16. PoE indicator
Mounting Dimension
Unit: mm
