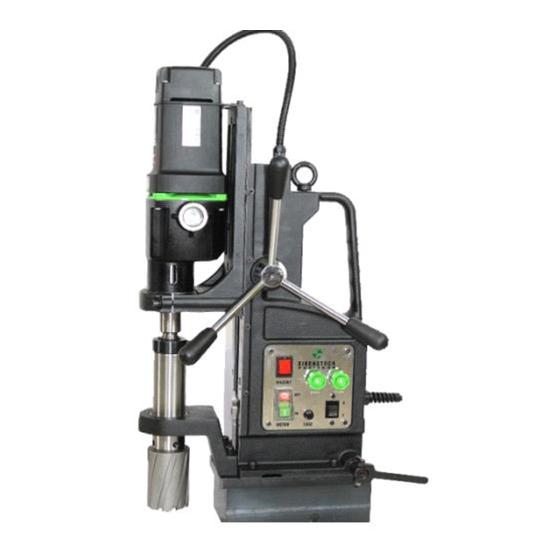

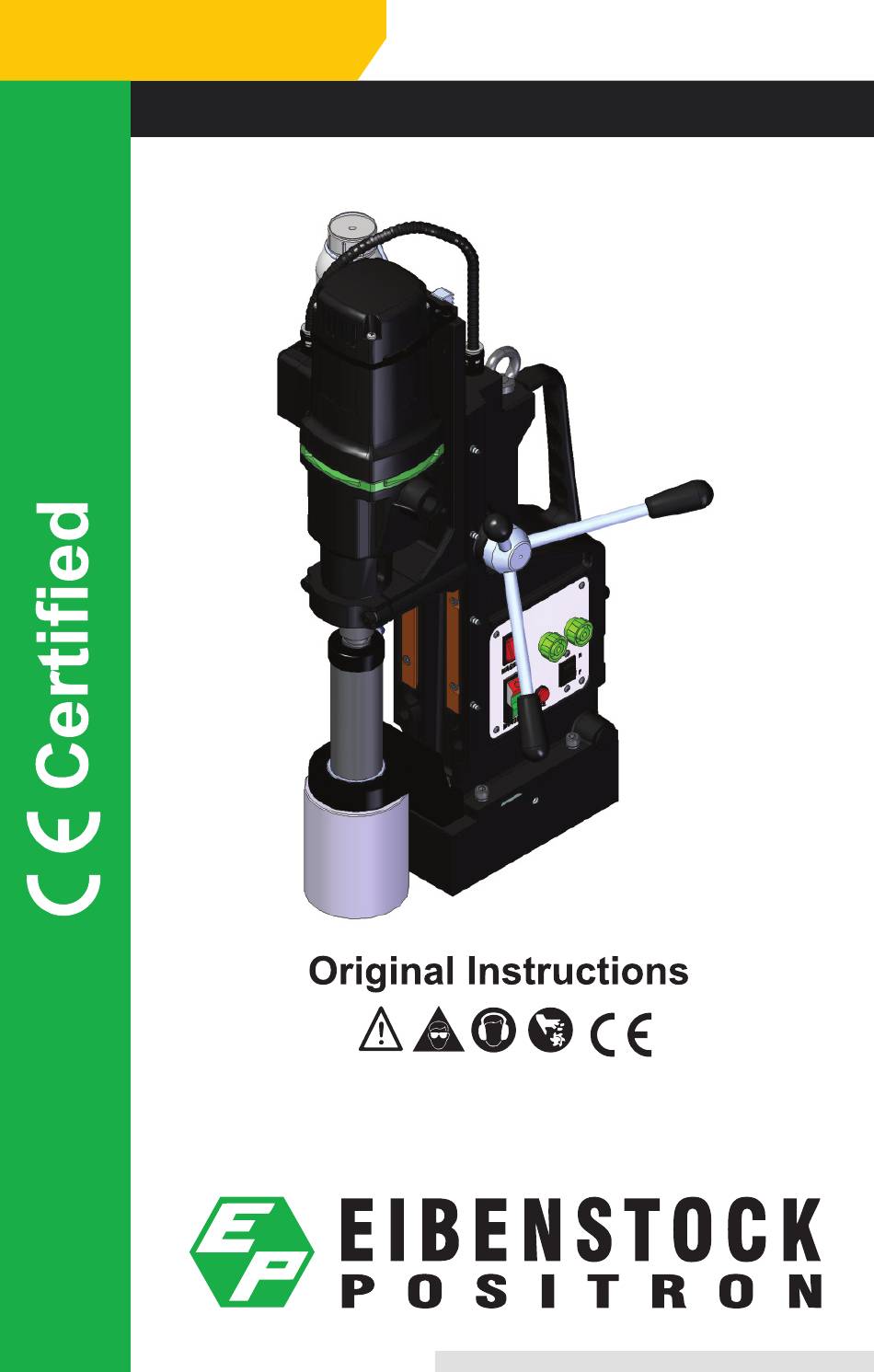

- Page 1 Metal Core Drill Machine KDS 100.1 4R/RL Read instructions before operating Polisher...
- Page 2 KDS 100.1 4R/RL...
- Page 3 We recommend EIBENSTOCK POSITORN annular TCT cutters. Please consult your Dealer for a complete range of sizes. DO NOT modify and / or use your EIBENSTOCK POSITORN Metal core drill for any application other than for which is intended.
- Page 5 KDS 100.1 4R/RL Input Supply Voltage (V) 220-240 1800 Motor Input (W) 50/60 Frequency (Hz) Core Cutting Capacity (mm) Core Cutting Depth (mm) Stroke (mm) 60 to 140 Rated Speed n (min ) 200 to 470 Tapping Capacity up tp M30...
- Page 11 SAFE OPERATION FOR METAL CORE DRILLS ALWAYS USE THE SAFETY BELT WHEN USING METAL CORE DRILL VERTICALLY OR UP-SIDE DOWN POSITION.
- Page 13 Now Metal core drill is ready for vertical / overhead drilling application.
- Page 14 Prior to all operations, mount coolant unit. The Place of installation for the base SA must be clean and rust free. Paint rust, scale or uneven surfaces decreases the holding strength of Magnet. Disconnect the plug from the power source before making any adjustment, changing accessories or storing the tool.
