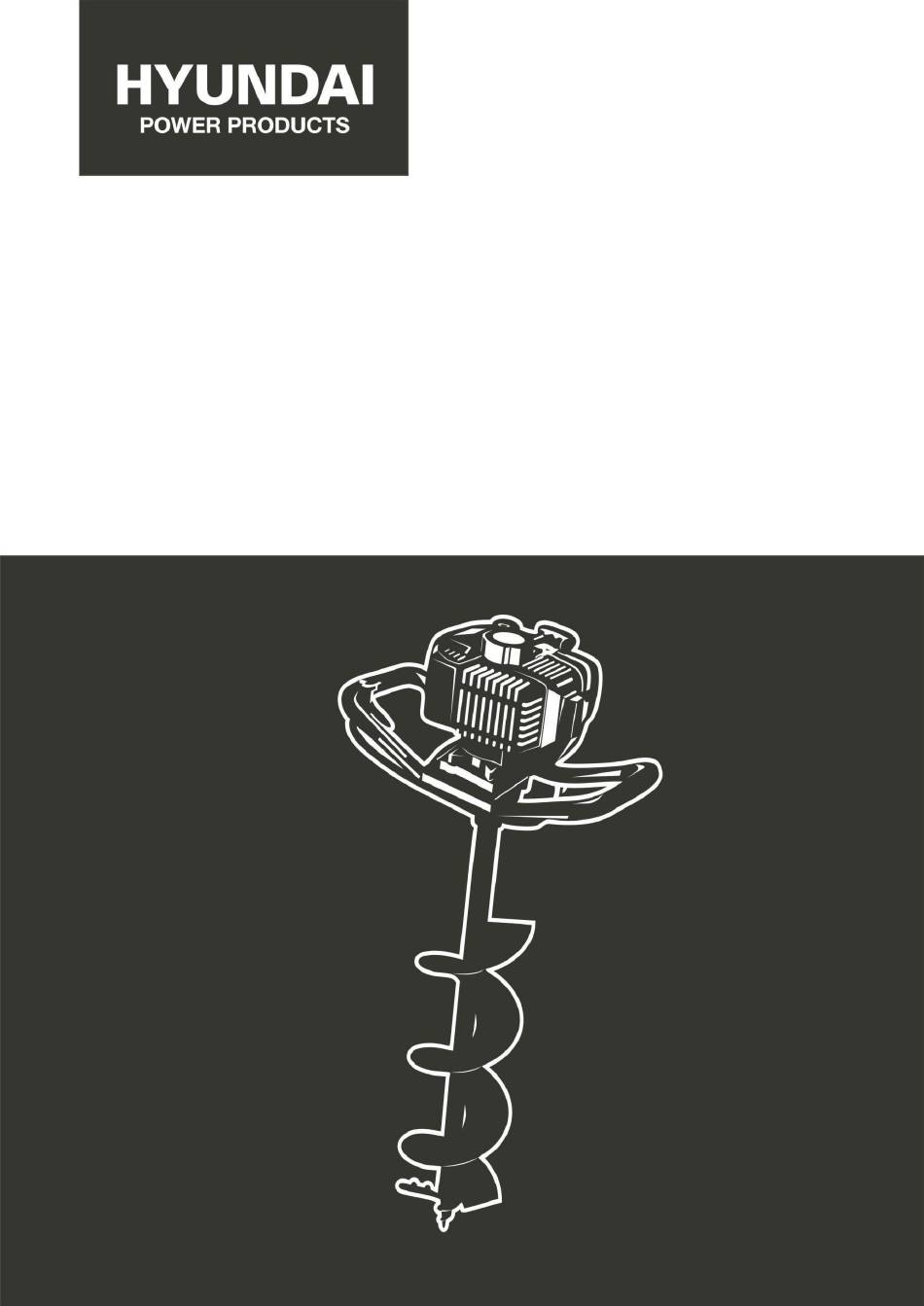

- Page 1 PETROL EARTH AUGER HTTDB52 ORIGINAL INSTRUCTIONS WARNING: READ THE FOLLOWING INSTRUCTIONS BEFORE USE THIS MACHINE.
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS 2. YOUR PRODUCT 3. FILLING THE FUEL TANK 4. ASSEMBLY AND OPERATION 5. MAINTENANCE 6. TOUBLESHOOTING 7. STORAGE AND TRANSPORTATION 8. DECLARATION OF CONFORMITY 9. WARRANTY 10. PRODUCT FAILURE 11. WARRANTY EXCLUSIONS... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS THIS MACHINE MAY CAUSE SERIOUS INJURIES. Read the instructions carefully for handling, preparing, maintaining, starting and stopping the machine. Learn more about all the controls and proper use of the machine. WARNING! When using this type of tool, basic precautions should always be followed toreduce the risk of fire, electric shock and injury. - Page 4 Keep people and animals away from the work area. Children and people who do not know howto use this tool should not touch it and handle it. Use the product only under daylight or under good artificial light. ...
- Page 5 Children should not play with plastic bags, sheets and small parts! Keep them out of the reachof children. There is a danger of suffocation! Always carry the tool while holding the handle, never the drill. Do not use the product on a slippery surface. ...
- Page 6 the so- called "white finger" disease. To reduce the risk, please wear gloves and keep your hands warm. It is recommended to limit the duration of operation. If any of the symptoms of the "white finger" syndrome appear, consult a doctor immediately.
-
Page 7: Your Product
2. YOUR PRODUCT 2.1 DESCRIPTION 1. Fuel cap/tank 2. ON/OFF Switch 3. Throttle 4. Handle 5. Gear box 6. Auger/Drill 7. Spark plug 8. Air filter/Carburetor 9. Choke lever 10. Recoil starter handle... - Page 8 2.2 TECHNICAL DATA Engine displacement 52cm³ Maximum engine power: 1.45kW Maximum speed of the motor 8500/min Engaging speed 3800/min Idle speed: 3000/min Fuel tank volume 1.2L Drilling specific diameter 100mm/150mm/200mm Drilling speed at the maximum speed of 240/min themachine Fuel consumption at maximum engine power ≥700g/h Fuel oil ratio 25:1 Guaranteed sound power...
-
Page 9: Filling The Fuel Tank
3. FILLING THE FUEL TANK WARNING: When filling the tank: The drill should always be stopped and cooled. Never smoke during refueling. It must not have flames or sparks near the fuel. Do not attempt to refuel when the engine is hot. ... -
Page 10: Assembly And Operation
4. ASSEMBLY & OPERATION 4.1. Attaching the auger/drill bit. ( Fig.1) 4.1.1. Remove the securing pin and then the screw from the bit. 4.1.2. Push the auger/drill bit onto the shaft. 4.1.3.Align the hole of the auger/drill with the hole of the shaft. Place the screw into the hole andthen push the securing pin in the hole of the screw. - Page 11 NOTE: When restarting immediately after stopping the engine leave the choke in the open position (6). The primer pump operation is not necessary when restarting the engine immediately afterstopping. 4.3.6. Whilst supporting the auger with your left waist and left hand as shown, pull the starter recoilhandle gently until compression is felt then firmly.
- Page 12 4.5.2.A reacting motion may occur on the auger when spinning drill has hit on stones or tree rootsunder the ground. Always hold the auger firmly to control such motion. 4.5.3. Start drilling with half-throttle, and gradually increase the engine speed so that the drill mayget into the ground smoothly.
-
Page 13: Maintenance
1 – Idle adjusting 2 – RPM up 3 – RPM down screw 4 – H-Needle 5 – Fuel decrease 6 – Fuel increase 7 - L-Needle 8 – Fuel decrease 9 – Fuel increase 5. MAINTENANCE AND STORAGE Warning: Before cleaning, inspecting or repairing the auger, make sure that the engine has stopped andcooled down. - Page 14 5.3.2. The gap should be set to 0.6 – 0.7mm. When replacing with a new plug, use a Champion RCJ-6Y or NGKBPMR7A. Fig.9 Fig.10 Warning: The spark plug MUST be fully tightened otherwise the engine will overheat causing damage. Always complete the following steps with the engine off and cooled. 5.3.3.
- Page 15 5.4.3. Disconnect the filter assembly. 5.4.4. If necessary, replace with new filter or clean by blowing air inside out after spraying acarburetor cleaning solvent. Fig.12 Gear box. (Fig. 5.4.5. Check oil level of the gear box every 50 hours of use and change with new oil as necessary(SAE 80 - 90).
-
Page 16: Toubleshooting
6. TROUBLESHOOTING Note: If troubleshooting does not solve the problem, contact your dealer or the manufacturer directly. Use only original parts approved by the manufacturer, otherwise a hazard risk arises. 6.1Difficulties in starting. Situation Cause Solution No spark Spark plug Clean the spark plug. -
Page 17: Storage And Transportation
7. STORAGE & TRANSPORTATION WARNING: If you do not follow these steps, deposit may arise in the carburetor. This will causestarting difficulties and may cause permanent damage 7.1. Perform all the general maintenance that the maintenance section of your ‘User Manual’... -
Page 18: Declaration Of Conformity
BUILDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux - FranceDeclares that the machinery designated below: EARTH AUGER PETROL HTTDB52 Serial number: 20211190674-20211191108 Complies with the provisions of the Directive “machinery” 2006/42/EC and national lawstransposing it: Also complies with the provisions of the following European... -
Page 19: Warranty
9. WA R R A N T Y WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 20: Product Failure
10. P R O D U C T FA I L U R E WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 21: Warranty Exclusions
11. WA R R A N T Y E X C L U S I O N S THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. •... - Page 22 Philippe MARIE / CEO...
