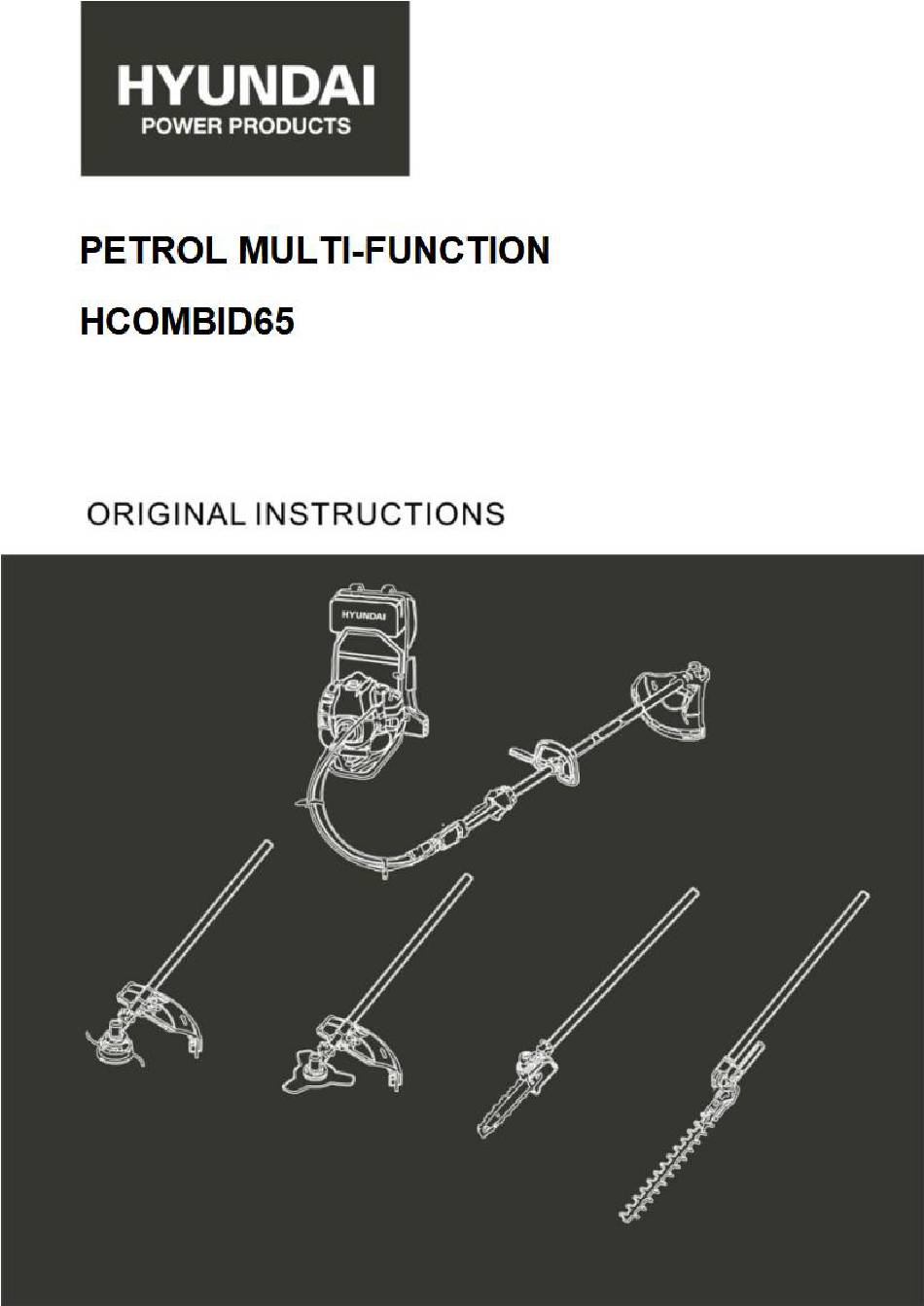

Hyundai power products HCOMBID65 Original Instructions Manual

Petrol multi-function
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ORIGINAL INSTRUCTIONS >EN
GASOLINE MULTI TOOL
KITHCOMBIBP50-A
INSTRUCTION MANUAL
CAUTION: Read the instructions before using the machine!
WARNING: Read thoroughly the instruction manual before use.
WARNING: Read the instructions manual before using the tool

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCOMBID65 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai power products HCOMBID65

Summary of Contents for Hyundai power products HCOMBID65

  • Page 1 ORIGINAL INSTRUCTIONS >EN GASOLINE MULTI TOOL KITHCOMBIBP50-A INSTRUCTION MANUAL CAUTION: Read the instructions before using the machine! WARNING: Read thoroughly the instruction manual before use. WARNING: Read the instructions manual before using the tool...

  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS............................ 3 2. YOUR PRODUCT..............................15 3. ASSEMBLY................................18 4. FILLING OIL TANK AND FUEL TANK......................22 5. OPERATION................................. 23 6. MAINTENANCE..............................28 7. STORAGE................................32 8. DISPOSAL AND RECYCLING.......................... 32 9. TROUBLESHOOTING............................32 10. DECLARATION OF CONFORMITY....................... 34 11.

  • Page 3: Safety Instructions

    1. SAFETY INSTRUCTIONS Safety instructions for brushcutter and grass trimmer Proper safety precautions must be observed. This unit must be handled carefully. DO NOT EXPOSE YOURSELF OR OTHERS TO DANGER. Follow these general rules. Do not permit others to use this machine unless they are thoroughly responsibleand have read and understand the machine manual and are trained in its operation.
  • Page 4 Do not store in a closed area where fuel vapors can reach an open flame from hot water heaters,  furnaces, etc. Store in a locked, well-ventilated area only. Ensure safe and proper performance of your product. These parts are available from your dealer. ...
  • Page 5 Wear no-slip heavy duty work gloves to improve your grip on the brush cutter handle. Gloves  also reduce the transmission of machine vibration to your hands. WARNING: The cutter area is still dangerous while the machine is coasting to a stop. ...
  • Page 6 Residual risks Even if you use this tool correctly, there are always residual risks. The following hazards may arise inconnection with the structure and manufacture of this power tool: Hearing impairment if no suitable hearing protection is worn. Cuts if no suitable protective clothing is worn. Health damage resulting from vibration in the hands and arms if the device is used for a long period of time or is not handled and maintained properly.
  • Page 7 Use only an approved container.  Never remove the fuel cap or add fuel with the power source running. Allow engine and  exhaustcomponents to cool down before refueling. Do not smoke.  Never refuel indoors.  Never store the hedge trimmer or fuel container inside where there is an open flame, such ...
  • Page 8 Additional instructions Warning - Never allow children to use the hedge trimmer.  Work only during in the day or with an enough artificial light.  Before starting to work, check the condition of the tool.  Ensure that all the parts of the machine are well fixed and tightened. ...
  • Page 9 your machine and protect yourself correctly. Also avoid voluntarily breathing exhaust fumes; always hold the machine correctly when you use it. Regularly lubricate the blades of the trimmer by using a lubricant which is sold in specialized  stores. Residual risks Even if you use this product in compliance with all safety requirements, the potential risks of injury and damage remain.
  • Page 10 Keep the handles free from oil and fuel.  Always use proper handles and shoulder strap when cutting.  Do not smoke while mixing fuel or filling tank.  Do not mix fuel in an enclosed room or near open flames. Assure adequate ventilation. ...
  • Page 11 After the engine has stopped, the muffler is still hot. Never place the machine in any places  where there are flammable materials (dry grass, etc.), combustible gasses or combustible liquids. Pay special attention to operation in the rain or just after the rain as the ground may be slippery. ...
  • Page 12 Never modify the tool in any way.  Improper use of the machine can cause SERIOUS OR FATAL PERSONAL INJURY.  The engine exhaust forms this product contains chemicals to cause cancer, birth defects, of other  reproductive harm. Check regularly that the cutting attachment stops turning when the engine idles. ...
  • Page 13 To minimize those risks, follow the instructions of this manual about wearing personal equipment of protection, take some rest during the operation and the manipulation of the tool. Do not work for a prolonged time. Intended use 1)Brushcutter and grass trimmer This machine can be used as a grass trimmer with the sharp nylon line, and as a brush cutter with the cutting blade.
  • Page 14 Wear protective footwear. Caution to exhaust gases. Caution – Risk of fire. Do not smoke and do use the tool near naked flame. The accessible part are hot when operate the tool. Caution! Risk of rebound. Warning – Risk of electric shock. Always beware of the danger from overhead electric-power line, keep a safe distance at least 10m from the power line.

  • Page 15: Your Product

    2. YOUR PRODUCT a. Description Motor drive unit Throttle lever Carter of protection for Pole saw Oil tank for chain saw brushcutter and grass trimmer Tube Saw chain Spark plug wrench Brushcutter/grass Chain saw blade Open-ended spanner (8 trimmerhead 14a) Saw blade cover mm / 10 mm) Nylon wire for grass Cutting...
  • Page 16 Scope of delivery Open the packaging and take out the equipment with care. Remove the packaging material and any packaging and/or transportation braces (if available). Check to see if all items are present. Inspect the equipment and accessories for transport damage. In case of complaints the supplieris to be informed immediately.
  • Page 17 Pole pruner LpA: 101 dB(A) K= 3 dB (A) Grass trimmer/Brushcutter Sound pressure level LpA: 98 dB (A) K= 3 dB (A) Hedge trimmer LpA: 98 dB (A) K= 3 dB (A) Pole pruner Max. 7,426 m/s² Uncertainty: K=1,5m/s² Grass trimmer and brushcutter Front handle Idling: 9,231m/s²...

  • Page 18: Assembly

    3. ASSEMBLY When assembling, put on protective gloves. Blades can be sharp. a. Mounting the flexible shaft • Pull the locking bolt out and fix the flexible shaft to the motor until the locking bolt locks in. • Unscrew the air filter cover, screw the accelerator cable in as shown. •...
  • Page 19 • Use cable ties to affix the accelerator cable to the flexible shaft. b. Mounting the tube • Pull out the locking pin (a) and press the lower part of the shaft (b) downward until the locking pinengages. The bolt (a) is in the right position when it is fully seated in the bore. •...
  • Page 20 Warning! For brushcutter and grass trimmer operation, never use the machine without the guard assembled! e. Blade for brushcutter Align the two holes of the flange and the pin. Use a tool to hold the flange. Loosen the nut, use a wrench if necessary. Then remove the bell and the outer flange.
  • Page 21 Adjusting of the position 1. Press the release / safety plate to loosen and turn the unit to the desired position depending on thenature of the work to be performed. 2. Loosen the release / safety plate ensuring that the cutting accessories are securely in place andsecured.

  • Page 22: Filling Oil Tank And Fuel Tank

    i. Notes on tensioning the chain • The chain must be properly tensioned to ensure safe operation. When the saw chain can be raised by around 2 mm in the middle of the cutter bar, you know that the chain tension is ideal. During cutting, the temperature of the chain rises and its length changes.

  • Page 23: Operation

    c) Filling with fuel Danger of injury! Fuel is explosive! Turn the motor off and let the machine cool down. Wear safety gloves.Avoid contact with skin and eyes. Make sure you observe the “Safety Instructions” paragraph. • Only ever refuel the tool outdoors or in sufficiently ventilated rooms. •...
  • Page 24 3) Press the fuel pump (b) 10 times. 4) Pull the recoil starter handle 3-5 times to start the engine. 5) Wait a while adjust the choke lever to the RUN position (open position). 6) First press the lock off lever (8) and then switch the throttle lever (11) on, the machine will be working.
  • Page 25 diameter of maximum 2 cm), and high grass. • While using metal cutting tools, there is generally a risk of recoil, when the tool hits a solid obstacle (stones, trees, branches, etc.). Thereby, the tool is hurled backwards against the rotating direction.
  • Page 26 e) Working with pole saw Oiling of the chain and bar It is recommended to use chain oil sold in specialized stores. • Remove the oil tank cap. • Fill the chain oil tank to 80% with chain oil. • Close Oil tank cap. •...
  • Page 27 Basic cutting technique • Heavy branches break off easily when sawing. They tear long strips of bark away from the trunk, which damages the tree sustainably. The following section technique can significantly reduce this risk: - Saw the first branch about 10 cm from the trunk. - Put in about 15 cm from the base of the top of a further section - Saw until the branch breaks.

  • Page 28: Maintenance

    6. MAINTENANCE WARNING: Always wear protective gloves when working on or around cutting tools. • For non-use, transport or storage always attach the transport guard to all cutting tools. • Before performing any maintenance or cleaning work, always turn off the engine and pull out the spark boot plug.
  • Page 29 Grinding the safety hood blade • The safety hood blade can become blunt over time. • When you notice this, undo the screw holding the safety hood blade on the safety hood. • Clamp the blade in a vice. • Sharpen the blade with a flat file and make sure that the angle of the cutting edge is not altered in the process.
  • Page 30 • Unscrew the knob of the cover of the air filter. • Remove the filter element and wash it in warm soap water, rinse and allow drying naturally. Important: Never clean the air filter with petrol or inflammable solvents. In order not to shorten the service life of the engine a damaged air filter must be replaced at once. Warning! Never run the engine without the air filter element installed.
  • Page 31 The angle must also be maintained for all knives. For irregular angles, the chain is run irregularly, wear quicklyand break down prematurely. Since these requirements can only be met with sufficient and regular exercise: • A File Holder must be used when sharpening the saw chain by hand. The correct filing angle marked on it.

  • Page 32: Storage

    7. STORAGE a) Cleaning • Keep handles free of oil, so you always have a secure hold. • Clean the equipment as required with a damp cloth and, if necessary, mild washing up liquid. Important! • Always pull out the spark boot plug each time be- fore carrying out any cleaning. •...
  • Page 33 Fault Possible cause Remedy Air filter is contaminated. Clean/replace the air filter. • • Fuel filter is blocked. Clean or renew the fuel filter. • • Lack of fuel supply. Re-fuel. • • Fault in the fuel line. Check the fuel line for kinks or damage. •...

  • Page 34: Declaration Of Conformity

    32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 Declares that the machine: PETROL MULTI-FUNCTION HCOMBID65 Serial No: 20221202616- 20221204735 Have been designed in compliance with the following standards: EN ISO 11680-1 : 2021 ; EN ISO 11680-2 :2021 ;...

  • Page 35: Warranty

    11. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 36: Product Failure

    12. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 37: Warranty Exclusions

    13. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
