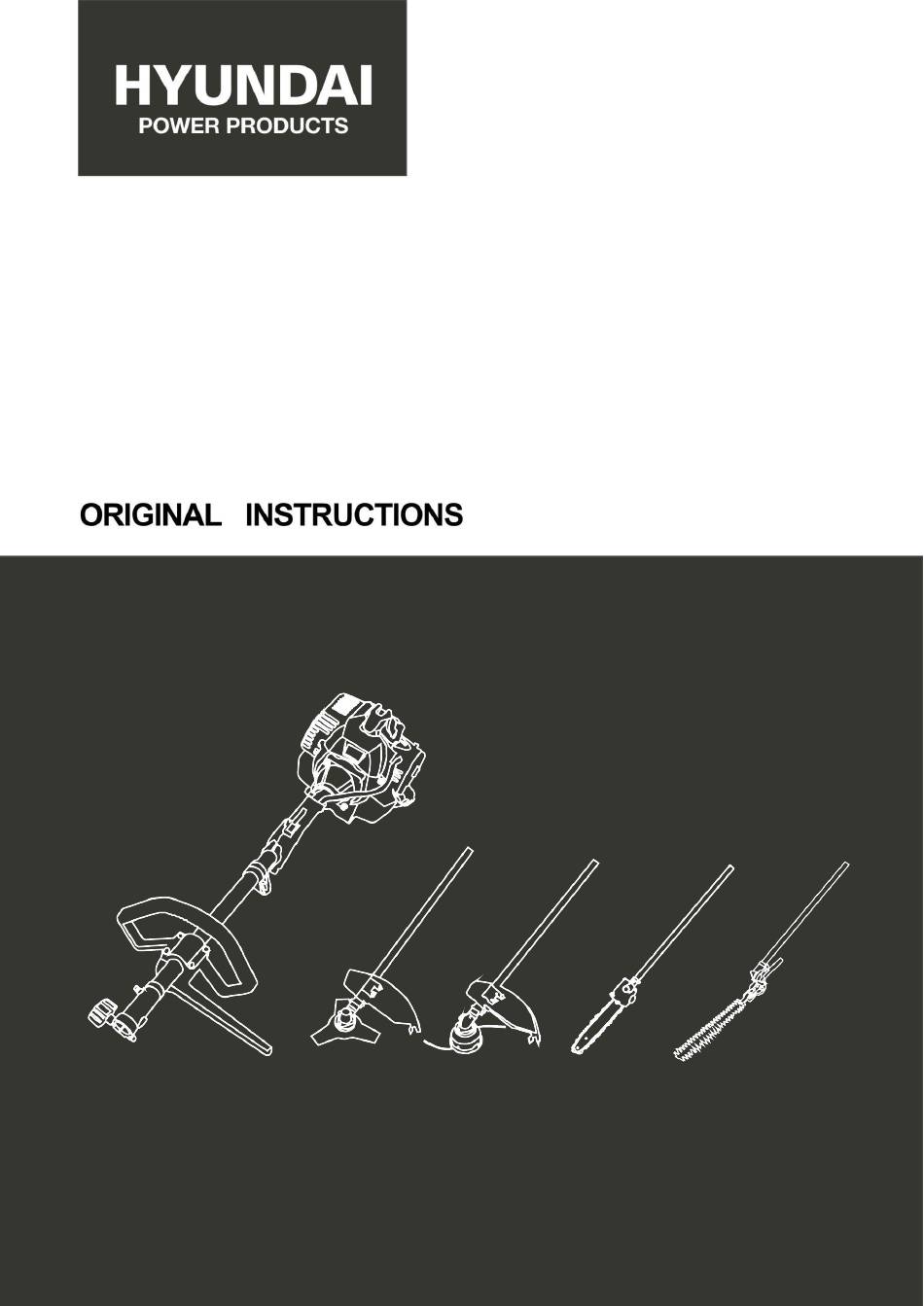

- Page 1 GASOLINE MULTI TOOL KIT HCOMBI55-1 WARNING: Read thoroughly the instruction manual before use!
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS THE TOOL ASSEMBLY FILLING THE FUEL TANK OPERATION CARE AND MAINTENANCE TECHNICAL DATA TROUBLESHOOTING EC DECLARATION OF CONFORMITY WARRANTY PRODUCT FAILURE WARRANTY EXCLUSIONS... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS 1.1 BRUSH CUTTER AND GRASS TRIMMER WARNING! When using this type of tool, basic precautions should always be followed to reduce the risk of fire and injury. Read all instructions carefully before attempting to use this product and retain these instructions. Be ... - Page 4 A damaged part must be properly repaired or replaced by an authorized service center, unless otherwise specified in this instruction manual. Do not use the tool if the switch is not working (if it cannot be turned ON or OFF). ...
- Page 5 storage. Maintenance and cleaning shall always be done after operation. Follow the instructions given in this manual for maintenance, cleaning and storage. Store the tool where fuel vapors will not reach a flame or spark. During transport, maintenance and storage, always install the cover on the metal blade. ...
- Page 6 familiar with all controls and the proper use of the hedge trimmer. b) Never allow children to use the hedge trimmer. c) Beware of overhead power lines. d) Avoid operating while people, especially children, are nearby. e) Dress properly! Do not wear loose clothing or jewellery, which can be caught in moving parts. Use of sturdy gloves, non-skid footwear and safety glasses is recommended.
- Page 7 Additional instructions Never allow children to use the hedge trimmer. Work only during in the day or with a sufficient artificial light. Before starting to work, check the condition of the tool. Ensure that all the parts of the machine are well fixed and tightened. ...
- Page 8 Residual risks Even if you use this product in compliance with all safety requirements, the potential risks of injury and damage remain. The following hazards may arise in the structure and design of this product. Always be vigilant when using this product, so you can recognize and manage the risks rather. Rapid intervention can prevent serious injury and property damage.
-
Page 9: The Tool
Warning - there is a danger about the emission of exhaust gases. Do not inhale them do not be exposed to them. Keep firm footing and balance during operation. Use the harness provided. Do not use the tool if the switch is defective. In the event of a malfunction, do not use the tool and take it to a qualified service for repairs. - Page 10 Never leave the machine unattended. The device must always be used fully assembled and secured. Store the tool with its blade guard and out of the reach of children Never use an incomplete or unauthorized tool. Clean and maintain the tool before storage (see the chapters on this manual). Bring maintenance after each use according the instructions of this manual.
- Page 11 WARNING - Danger of kickback. Caution! The tool can contact to a voluminous material. Loss of control and injuries can be created. Warning – Risk of projection. Do not use saw blades. Keep bystanders away at least 15mm. Warning – Risk of electric shock. Always beware of the danger from overhead electric-power line, keep a safe distance at least 10m from the power line.
- Page 12 If you turn the rod by screwdriver follow the arrow to the “MAX” position, the chain oil flow more, and if you turn to the “MIN” position, less. Position: Bottom of the TRANSMISSION. Fuel pump. Maximum rotational frequency of the spindle. Maximum rotational frequency of the spindle of grass trimmer.
- Page 13 ON/OFF switch Shoulder strap Throttle lever Cutting head for grass trimmer Hanger Handle Mounting tube Hedge trimmer Carter of protection (brushcutter and trimmer) Air filter Bottle for the oil mixture Choke lever Cover protection of the blade (pruner) Starter 3 teeth blade (brush cutter) Fuel tank Pole mounted pruner Tool se...
- Page 14 2.4 Brushcutter 1- Carter of protection 2- 3-teeth blade 2.5 Grass trimmer Nylon wire Device of cutting the nylon wire Carter of protection...
-
Page 15: Assembly
3. ASSEMBLY 3.1 Handle Unscrew the handle. On the main unit, locate the two holes; Install the rubber tap by aligning the holes (the tap is inside the handle). Install first bottom of the handle, the pin must be inserted in the hole. Install then the last part of the handle and screw it with the four screws. - Page 16 3.4 Blade for brushcutter Warning - sharp edges; wear gloves when manipulate the blade On the tube of the brushcutter/grass trimmer, insert a metal locking tool into the hole on the side of the drive gear and on the tool drive. Remove cover bell and the holding nut from the shaft.
- Page 17 3.6 Hedge trimmer There is no installation for the hedge trimmer; its tube can be directly installed on the main unit. Adjusting of the working angle NOTE: Always fit the blade cover Pull both locking ratchet and the locking pin to disengage them from their respective notches. Adjust the cutting head to desired working angle.
- Page 18 Install the guide chain on the tool and pass the chain on the wheel chain. Install the cover and tighten the fastening screw. Adjusting the chain tension The chain must not have too much clearance, but it must be possible to lift the chain a few millimetres from the guide rail.
-
Page 19: Filling The Fuel Tank
4. FILLING THE FUEL TANK WARNING: When filling the tank: The tool must always be stopped and cooled. Never smoke during refueling. It must not have flames or sparks near the fuel. Before refueling, allow the chainsaw to cool completely. Do not attempt to refuel when the engine is hot. -
Page 20: Operation
5. OPERATION 5.1 Starting the operation Cold starting Switch on the tool by putting the Start/stop button on the position I (ON). Push the primer bulb 7-10 times, until fuel comes into the primer bulb. Pull the choke lever to the close position. Pull the starter cord until the engine starts. - Page 21 5.4 Grass trimmer operation Trimming Tilt the head slowly to direct debris away from you. If cutting up to a barrier such as fence, wall or tree, approach from an angle where any debris ricocheting off the barrier will fly away from you, Move the line head slowly until the grass is cut right up the barrier, but do not jam (overfeed) the line into the barrier.
-
Page 22: Care And Maintenance
from you. That is using the side of the blade that it is rotating away from you. Tilt down the blade slightly on this same side. You will be hit by some debris if you scythe in both directions. 5.6 Hedge trimmer operation Warning! Never place the cutting head on the ground while the machine is running. - Page 23 Fuel filter Fuel tank is fitted with a filter. Filter is situated at the free end of fuel pipe. It can be picked with a hook or similar device. Check the fuel filter periodically. Do not allow dust to enter into fuel tank. Clogged filter will cause difficulty in starting engine or abnormalities in starting engine or abnormalities in engine performance.
- Page 24 Verification Turn the guide over regularly to avoid the effects of wear. The guide rail should keep the chain straight. The guide rail should always be in place. Use a ruler to examine it. If there is a gap between the guide and its rail, the rail is normal.
-
Page 25: Technical Data
Chain sharpening CAUTION: Wear protective gloves while sharpening the chain. For optimum performance, we strongly recommend that you sharpen the chain regularly. You can hire a professional to sharpen the chain, or you can do it yourself if you have enough experience and the right tools. - Page 26 BOSCH L8RTF, NHSP LD L8RTF, TORCH Spark plug L7RTC, NGK BP MR7A Guarantee sound power level 117 dB(A) Brushcutter 7,3 kg Unit without cutting attachment, empty tank Cutting diameter 255 mm 1.4 mm Cutting thickness Number of cutting teeth Three teeth metal blade Blade hole centre diameter 25.4 cm 7500 min -1...
-
Page 27: Troubleshooting
Sound pressure: LpA,av= 97,6dB(A) ,K=3dB(A) Noise Emission Sound power: LwA, av = 114dB(A) ,K=3dB(A) Pole pruner 7.5 kg Unit without cutting attachment, empty tank Volume of oil tank 140 cm³ Cutting length 300/260 mm Chain pitch 9,525 mm Chain gauge 1,27 mm Sprocket 7 Teeth x 9,525mm... -
Page 28: Ec Declaration Of Conformity
ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Declare that the tool: Gasoline multi tool kit Ref： HCOMBI55-1 Serial number: 20211242072-20211242521 Is in conformity with the Directive Machine 2006/42/EC and the national regulation transposing it Also in conformity with the following European regulation:... -
Page 29: Warranty
10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 30: Product Failure
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 31: Warranty Exclusions
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
