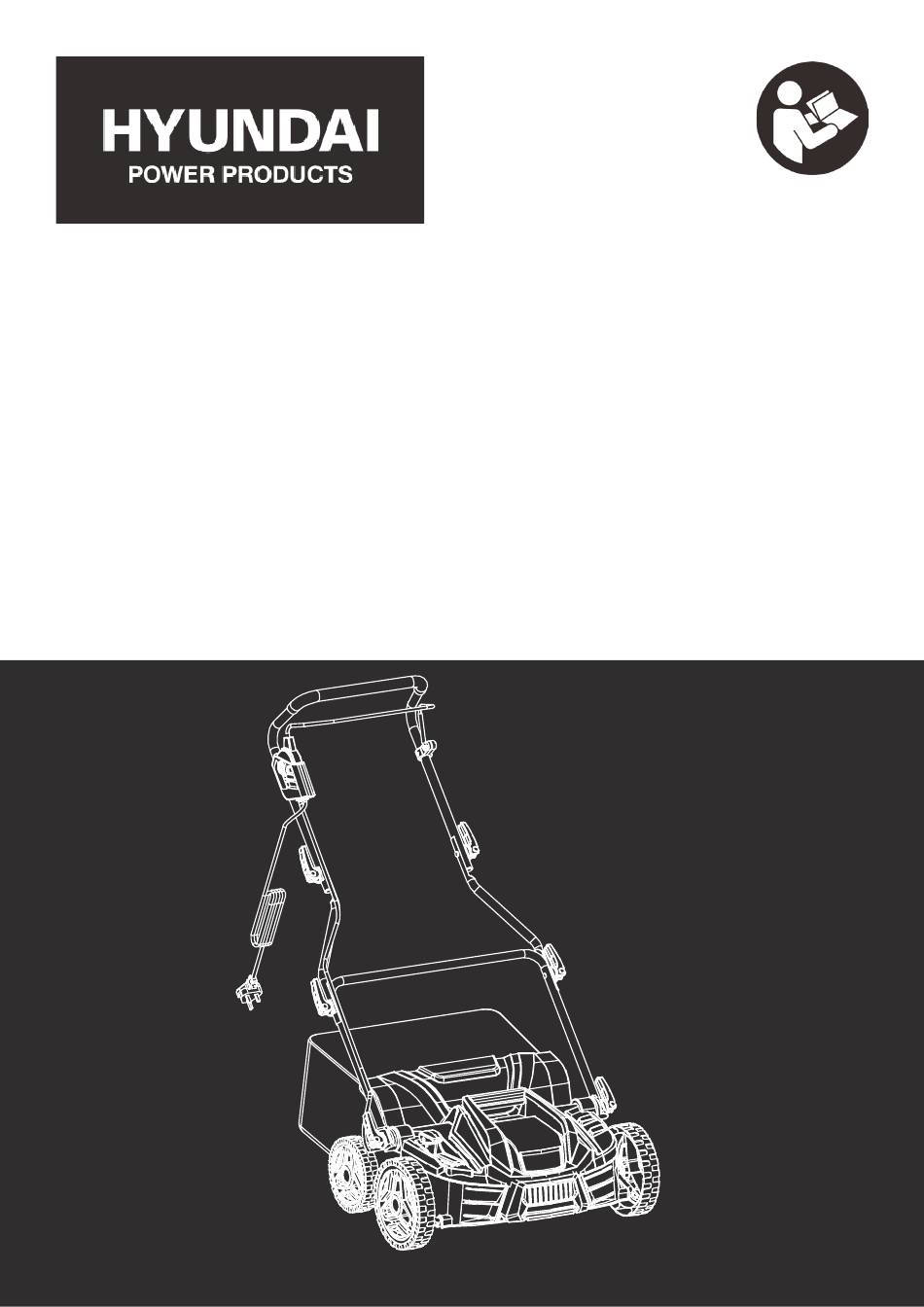

- Page 1 ELECTRIC SCARIFIER HYSC1500E Instruction Manual...
- Page 2 USING THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. Failure to do this may result in personal injury or damage to the product.
-
Page 3: Table Of Contents
Contents Safety Information.....4-17 Technical Data......35 Understand Your Machine.......4 Recycling And Disposal....36 Personal Safety..........5 Inspect Your Machine........6 Declaration Of Conformity...37 Work Area............7 During Use............8-9 Notes.........38-39 Batteries............10 Residual Risks..........11 Useful Information......40 Double Insulated Appliances......11 Our YouTube Channel........40 Electrical Safety........12-13 Warranty............40 Vibrations............14 Manual Updates..........40 Noise..............14 Returning Your Product........40 Personal Protective Equipment......15... -
Page 4: Safety Information
Safety Information Safety No list of safety guidelines can be complete. Every environment is different. Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious injury, damage to equipment, or poor work results. -
Page 5: Personal Safety
Safety Information Personal Safety • WARNING! Never allow children or people unfamiliar with these instructions to use the product. Local regulations can restrict the minimum age of the operator. • Keep children, pets, and other people not using the unit away from the work area (at least 15m). -
Page 6: Inspect Your Machine
Safety Information Inspect Your Machine • Check your machine before starting it. Keep guards in place and in working order. Make sure all nuts, bolts, etc., are securely tightened. • You must check the general condition of the machine before use. •... -
Page 7: Work Area
Safety Information Work Area • Make sure you thoroughly inspect the entire work area and remove all objects and anything that could be thrown by the machine or could damage the machine (branches, stones, wire, toys, etc). Attempting to clear the work area whilst using the machine will reduce your concentration and creates a trip hazard. -
Page 8: During Use
Safety Information During Use • Always hold the unit with both hands when operating. Keep a firm grip on the handlebars. Be aware that the machine may unexpectedly bounce upward or jump forward if the machine should strike buried obstacles such as large rocks or roots. •... - Page 9 Safety Information During Use (Continued) • Stop the tines if the machine has to be tilted for transportation. Do not operate the tines when crossing surfaces other than grass, and when transporting the product to and from the working area. •...
-
Page 10: Batteries
Safety Information Batteries (Where Present) Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE the electrolyte may be in a liquid or gel form. Should you come in to contact with electrolyte you should;... -
Page 11: Residual Risks
Safety Information Residual Risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product! Double-Insulated Appliances... -
Page 12: Electrical Safety
Safety Information Electrical Safety DANGER! ELECTRICITY CAN KILL - NEVER WORK ON LIVE/ENERGISED EQUIPMENT. • Prior to carrying out any maintenance work you MUST identify electrical isolation methods and isolate all electrical supplies. • Prior to use and with all electrical supplies isolated, you MUST check all electrical cables, plugs and connectors for the following;... - Page 13 Safety Information Electrical Safety (Continued) • Ground fault circuit interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) to be used for this electric scarifier + aerator. Receptacles are available having built-in GFCI protection and may be used for this measure of safety. •...
-
Page 14: Vibrations
Safety Information Vibrations (Where Applicable) • Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death. -
Page 15: Personal Protective Equipment
Safety Information Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. If more than one item of PPE is worn at the same time, make sure they can be used together, e.g. -
Page 16: Intended Use
Machine Description And Scope Of Application The HYSC1500E is a lawn scarifier and aerator from Hyundai, ideally suited for small to medium sized lawns. The HYSC1500E has a working width of 360mm and is powered by a 1500W motor. The operator is able to operate the machine and use the main controls, always staying behind the handle at a safe distance from the rotating blade. -
Page 17: Symbols On The Machine
Safety Information Symbols On The Machine We have provided safety messages in this manual and on the machine. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgment. -
Page 18: Features
Features HYSC1500E Features www.hyundaipowerproducts.co.uk 01646 687 880 sales@hyundaipowerproducts.co.uk... - Page 19 Features HYSC1500E Features Main Handle Hold onto with both hands this whilst using the machine. Operator Presence Control (OPC) Lever This is a safety feature. The machine will stop if you let go of this lever. Height Adjustment Lever Wheel...
-
Page 20: Unboxing
Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI Power Products immediately. You must keep the packaging material in case the machine needs to be returned or repaired. - Page 21 Unboxing Box Contents Operator Presence Control (OPC) Lever Main Handle Start Button Middle Upper Wall Storage Bracket & Handle Handle Screws Lower Handle Power Cable Height Adjustment Lever Grass Collector Rear Discharge Flap Fixed Handle Bolt Quick Clamps Main Unit Handle Fix Pads Wheel Lawn Raker Attachment...
-
Page 22: Assembly
Assembly Assembly Safety CAUTION - This guide is meant to serve as a quick reference for operating your HYUNDAI machine. We always advise reading the manual in full before operation. NOTE - Images may vary depending on model. NOTE - The machine may be supplied with some parts already assembled. Prior to assembly, check all items have been received. - Page 23 Assembly Slide handle bolt (T) through inside handle and then through outside handle. Slide handle fix pad (K) over bolt then screw quick clamp (F) onto bolt and tighten. Lock the quick clamp (F) over centre to secure. www.hyundaipowerproducts.co.uk 01646 687 880 sales@hyundaipowerproducts.co.uk...
- Page 24 Assembly Fit the cable holder (N) onto the upper handle bar (Q) from the switch side. Loop the power cable (R) through the cable holder to prevent unnecessary strain where the cable enters the control unit. Use the cable clamp (M) to keep the cable secure and tight to the handle. www.hyundaipowerproducts.co.uk 01646 687 880 sales@hyundaipowerproducts.co.uk...
-
Page 25: Grass Collector Assembly
Assembly Step 2 : Grass Collector Assembly Fix the metal frame inside the grass bag (E) and clip bag onto frame, Lift rear discharge flap (S) and clip grass bag onto the hooks. www.hyundaipowerproducts.co.uk 01646 687 880 sales@hyundaipowerproducts.co.uk... -
Page 26: Operation
Operation Working Depth Adjustment The working depth is adjustable to 5 heights: -12mm, -9mm, -6mm, -3mm and +10mm. Be careful not to use the scarifier at too deep a setting. If there is excessive strain on the motor, it will lose speed and be less efficient. Push the height adjustment handle (C) forwards or backwards to adjust the height. -
Page 27: Using The Scarifier
Operation Using The Scarifier (Rigid Tines) By scarifying you remove the hardened surface, grass felt and flat-growing weeds and the crusted over grassroots are loosened up. The lawn will start to breathe again and assimilate the nourishing substances, oxygen and water. This also prevents the establishing of bacteria in the lawn during the winter. -
Page 28: Blade System Change
Operation Blade System Change Disconnect from the mains electricity supply. Wear strong gloves. Turn the machine on its side and loosen wing nut by turning anti-clockwise to release the blade clamp. Pull the blade towards you and lift out the blade drive socket. To replace, insert blade into drive socket and other end into blade retaining clamp and tighten the wing nut. -
Page 29: Before Each Use
Operation Before Each Use YOU MUST read and understand the full safety instruction manual before starting the machine. Always ensure that the machine is in a safe working condition. Inspect and check safety devices and guards and check all nuts, bolts and screws are secure. Make sure you know how to stop the machine and ensure you are familiar with emergency stop. -
Page 30: Starting / Stopping
Starting / Stopping Starting Before starting the motor, make sure the scarifier is on the lawn, but not sitting on long grass. Make sure the cable is well away from the cutting blade. Push and hold in the safety button (G) on the side of the handle. - Page 31 About Scarification What Is Scarification? Scarification is the removal of moss, lawn clippings and dead grass blades from the stem of the grass to maintain a healthy growing environment. It is intensive airing of the lawn surface. • Perfect for revitalising and reviving the most tired and spongiest of lawns. •...
-
Page 32: Maintenance
Maintenance Maintenance Safety IMPORTANT - Routine and accurate maintenance is essential for maintaining original machine safety and performance levels. WARNING - Before cleaning or doing maintenance work, you need to stop the machine, disconnect from the electrical supply and read the relevant instructions. You need to wear proper clothing and protective gloves whenever your hands are at risk. -
Page 33: Cleaning
Maintenance Cleaning CAUTION - DO NOT use a hose pipe or pressure washer to clean the machine. NOTE Machine must be switched off and disconnected from the power supply. • You must remove grass and mud from the machine to prevent it from drying. This will cause problems the next time the machine is used. -
Page 34: Blade Maintenance
Maintenance The Blade WARNING • Never touch a rotating blade. • Check the blade in order to get a good cut. The blade should always be sharp and well balanced. At regular intervals, check the tightness of all nuts, bolts and screws. •... -
Page 35: Technical Data
Technical Data Specifications Model HYSC1500E Voltage 230V - 50Hz Motor Power Rating 1500W No Load Speed 3600rpm Working Width 36cm / 360mm Working Depth -12mm, -9mm, -6mm, -3mm, +10mm Grass Collector Capacity Insulation Class Class II Measured Sound Level 102dB(A) -
Page 36: Recycling And Disposal
Recycling And Disposal Recycling And Disposal We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. -
Page 37: Declaration Of Conformity
1500w 102dB(A) 105dB(A) Scarifier Product Details: Brand: Hyundai Model: HYSC1500E Description: Electric Scarifier Name and address of technical documentation holder and EU distributor: Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. Signed by: Roland Llewellin, Managing Director Date: 16/12/2019 www.hyundaipowerproducts.co.uk... -
Page 38: Notes
Notes www.hyundaipowerproducts.co.uk 01646 687 880 sales@hyundaipowerproducts.co.uk... - Page 39 Notes www.hyundaipowerproducts.co.uk 01646 687 880 sales@hyundaipowerproducts.co.uk...
-
Page 40: Useful Information
Go to www.hyundaisupport.co.uk or search ‘Hyundai Power Products’ in YouTube. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated. -
Page 41: Our Product Range
Our Product Range Generators Mini Dumpers Leisure Inverter, Petrol, Diesel And Built-In 4-Wheel Drive Mini Dumpers And Tracked Motorhome Generators Dumpers Pressure Washers Yard Sweeper Petrol, Diesel And Electric Pressure Washers Self Propelled Yard Sweeper Power Brush Water Pumps Scarifiers Submersible, Clean And Dirty Water And Petrol Lawn Scarifier And Aerator Professional Chemical Water Pumps... -
Page 42: Product Information
Product Information Information As soon as you have purchased the machine, we recommend that you fill out the following. If you need to contact an authorised dealer or customer service for information on servicing, you may need to provide the following information. The model number and serial number can be found on the grey specification sticker on your machine. -
Page 43: Contact Us
Need Help? Talk To Our Experts Contact Us Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687880, open Monday-Friday 8.30am-5pm. Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Live chat is open Monday-Friday from 8.30am-5pm. Post Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. - Page 44 Importer: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported/Distributed by Genpower Ltd for The United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
